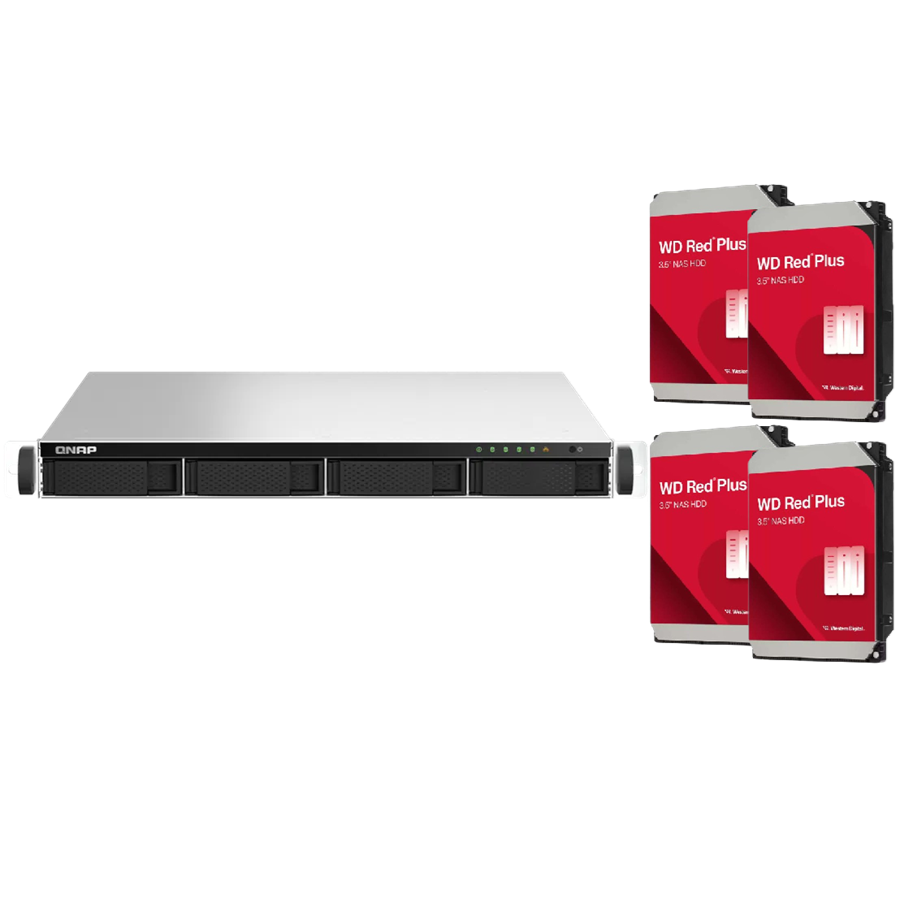

QNAP TS-464U-RP-8G 4 Bay 8GB RAM 1U Rackmount NAS with 4 x 4TB Western Digital Red Plus Drives

Powered by an Intel Celeron N5095 quad-core processor (burst up to 2.9GHz), the TS-464U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-464U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-464U-RP also features a redundant power supply to ensure maximum system uptime.

2.5GbE Connectivity:
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

PCIe Expandability:
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-464U-RP, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

Snapshots:
Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.

License-free Virtualized Environment:
Host multiple containerized apps to run a wide range of applications and services.

Drives Auto-Tiering:
Qtier auto-tiering technology and SSD caching enable constant storage optimization.

Flexible Expansion:
Scale your storage capacity to fit growing data needs by connecting QNAP’s expansion units.

• CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
• CPU Architecture: 64-bit x86
• Graphic Processors: Intel UHD Graphics
• Floating Point Unit: Yes
• Encryption Engine: Yes (AES-NI)
• Hardware-accelerated Transcoding: Yes
• System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
• Maximum Memory: 16 GB (2 x 8GB)
• Flash Memory: 4GB (Dual boot OS protection)
• Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
• Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives (Consult the QNAP website for a full list of compatible storage drives.)
• Hot-swappable: Yes (Not supported M.2 SSD)
• M.2 Slot: Optional via a PCIe adapter
• SSD Cache Acceleration Support: Yes
• 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
• 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via network adaptor
• 10 Gigabit Ethernet Port: Optional via network adaptor (Optional via PCIe expansion card)
• Wake on LAN (WOL): Yes
• Jumbo Frame: Yes
• PCIe Slot: 1; Slot 1: PCIe Gen 3 x2
• Card dimensions for PCIe slot：210 x 68.9x 18.76 mm
• USB 2.0 port: 2
• USB 3.2 Gen 2 (10Gbps) Port: 2 x Type A USB 3.2 Gen 2
• HDMI Output: 1, HDMI 1.4b
• Form Factor: 1U Rackmount
• LED Indicators HDD 1-4, Status, LAN, Expansion, Power
• Buttons: Power, Reset
• Operating Temperature: 0 - 40 °C (32°F - 104°F)
• Storage Temperature: -20 - 70°C (-4°F - 158°F)
• Relative Humidity: 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
• Power Supply Unit: 250W (x2), 100-240V
• Power Consumption: Disk Standby Mode: 37.469
• Power Consumption: Operating Mode, Typical: 51.404 W
• Fan: 2 x 40mm, 12VDC
• System Warning: Buzzer
• Standard Warranty: 3
• Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 1500
• Dimensions (H x W x D): 43.3 × 430 × 479 mm
• Weight (Net): 9.34 kg
• Weight (Gross): 11.3 kg

• 1x TS-464U-RP-8G
• 4x 4TB Western Digital Red Plus Drives
• 1x Ethernet cable
• 2x Power cord
• 48x Flat head screw (for 3.5" HDD)
• 36x Flat head screw (for 2.5" HDD)
• 2x Hanger
• 1x Quick installation guide (QIG)
