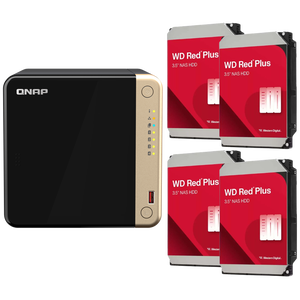

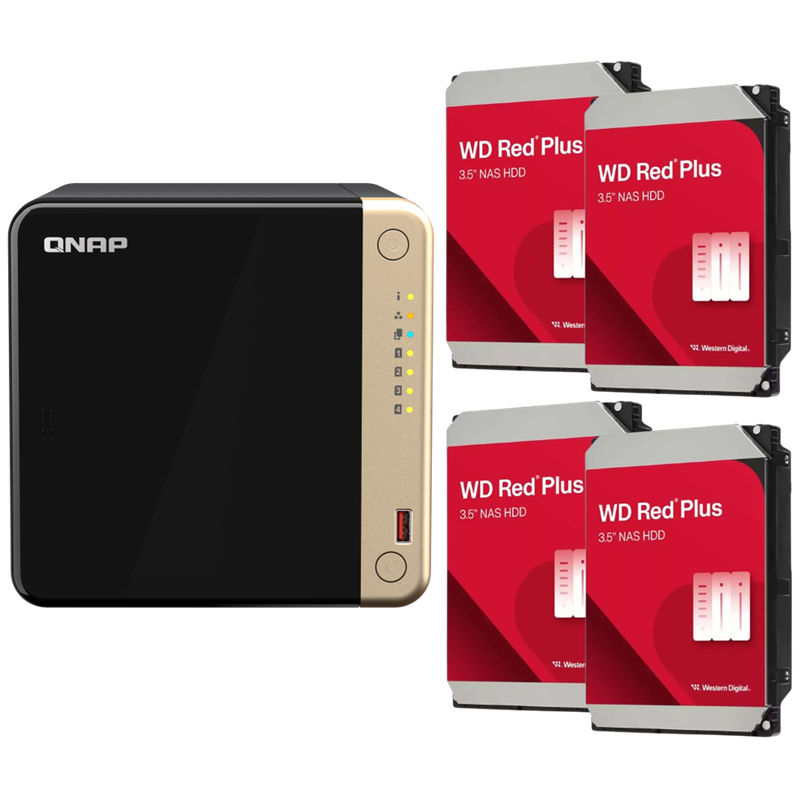

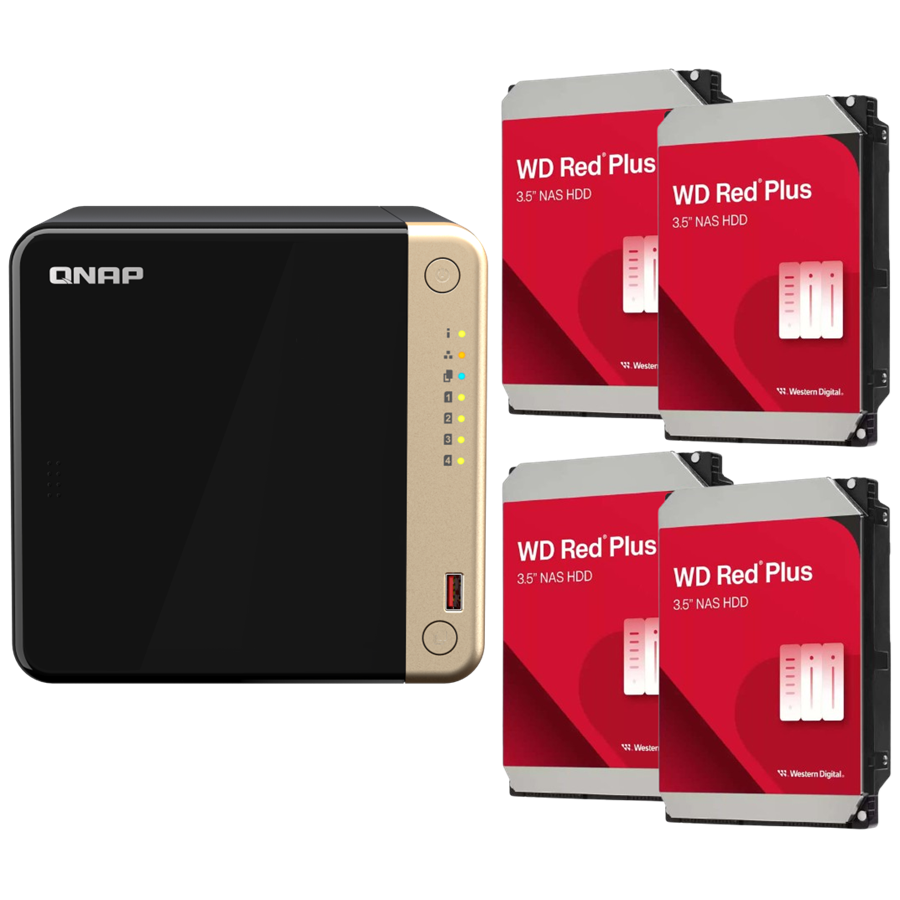

QNAP TS-464-8G 4 Bay 8GB RAM Tower NAS with 4 x 8TB Western Digital Red Plus Drives

TS-464 is a compact 4-bay NAS with superior performance. Supporting up to 72 TB storage and 4 TB M.2 SSD caching at an affordable price, the TS-464 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.

2.5GbE is a Must:
TS-464 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

Quad-core for Multitasking:
Perform additional tasks, stream more media, and have more services running with an Intel quad-core processor optimized for multitasking.

Smooth Video Conversion:
Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices.

Upgrade to Dual-port 10GbE:
Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,647 MB/s transfer speed.

Faster USB Transfer:
Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices.

More M.2 NVMe SSDs:
If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots.

• CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
• CPU Architecture: 64-bit x86
• Graphic Processors: Intel UHD Graphics
• Floating Point Unit: Yes
• Encryption Engine: Yes (AES-NI)
• Hardware-accelerated: Transcoding
• System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
• Maximum Memory: 16 GB (2 x 8GB)
• Memory Slot: 2 x SODIMM DDR4
• Flash Memory: 4GB (Dual boot OS protection)
• Drive Bay: 4 x 3.5-inch SATA 6Gb/s (Consult the QNAP website for a full list of compatible storage drives.)
• Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
• Hot-swappable: Yes (Not supported M.2 SSD)
• M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x1 (If a heatsink is to be installed, it is recommended that the top heatsink dimensions be less than 68 x 20 x 10 mm)
• SSD Cache Acceleration Support: Yes
• 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
• 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via PCIe expansion card
• 10 Gigabit Ethernet Port: Optional via PCIe expansion card
• Wake on LAN (WOL): Yes
• Jumbo Frame Yes
• PCIe Slot: 1; Slot 1: PCIe Gen 3 x2
• Card dimensions for PCIe slot：190 x 68.9x 18.76 mm
• USB 2.0 port: 2
• USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-A
• IR Sensor: Yes (Optional QNAP RM-IR004 remote control)
• HDMI Output: 1, HDMI 2.1 (up to 4096 x 2160 @ 60Hz)
• Form Factor: Tower
• LED Indicators: Power/Status, LAN, USB, HDD1-4
• Buttons: Power, USB copy, Reset
• Operating Temperature: 0 - 40 °C (32°F - 104°F)
• Storage Temperature: -20 - 70°C (-4°F - 158°F)
• Relative Humidity: 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
• Power Supply Unit: 90W adapter, 100-240V
• Power Consumption: Disk Standby Mode: 21.618
• Power Consumption: Operating Mode, Typical: 40.536 W
• Fan: 1 x 120mm, 12VDC
• System Warning: Buzzer
• Kensington Security Slot: Yes
• Standard Warranty: 3
• Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 1500
• Dimensions (H x W x D): 165 × 170 × 226.5 mm (footpad not included)
• Weight (Net): 2.26 kg
• Weight (Gross): 3.59 kg

• 1x TS-464-8G
• 4x 8TB Western Digital Red Plus Drives
• 1x Ethernet cable
• 1x Power cord
• 12x Flat head screw (for 3.5" HDD)
• 12x Flat head screw (for 2.5" HDD)
• 1x AC Adapter
• 1x Quick installation guide (QIG)
