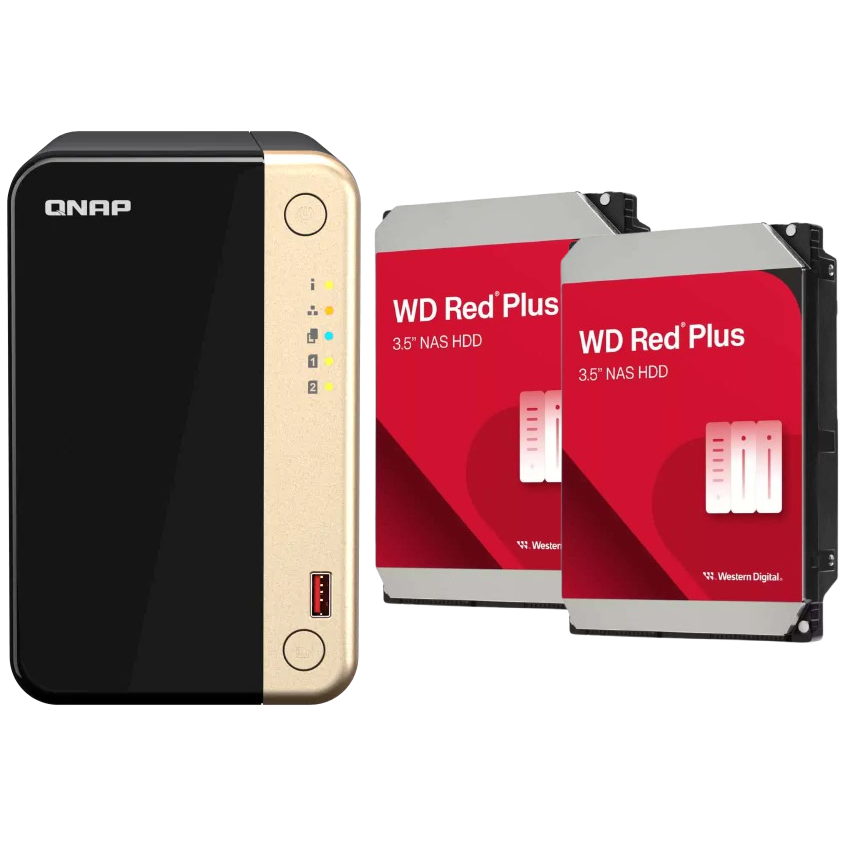

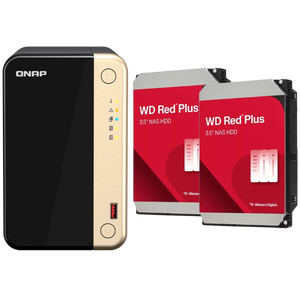

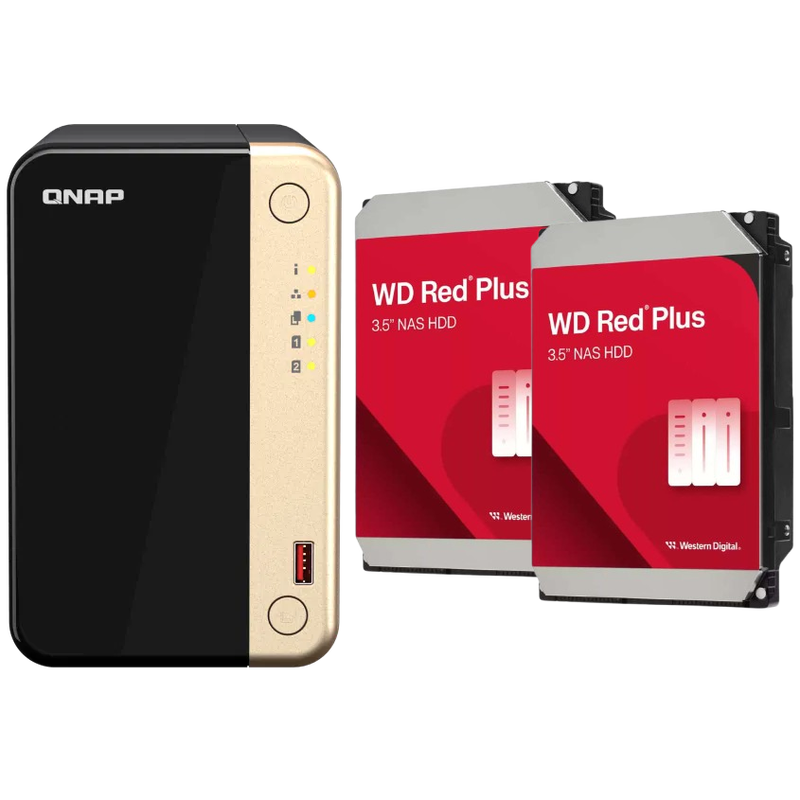

QNAP TS-264-8G 2 Bay 8GB RAM Tower NAS with 2 x 4TB Western Digital Red Plus Drives

TS-264 is a compact 2-bay NAS with superior performance. Supporting up to 24 TB storage and 4 TB M.2 SSD caching at an affordable price, the TS-264 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.

2.5GbE is a Must:
TS-264 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

Quad-core for Multitasking:
Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking.

Smooth Video Conversion:
Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices.

Upgrade to Dual-port 10GbE:
Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,644 MB/s transfer speed.

Faster USB Transfer:
Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices.

More M.2 NVMe SSDs:
If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots.

• CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
• CPU Architecture: 64-bit x86
• Graphic Processors: Intel UHD Graphics
• Floating Point Unit: Yes
• Encryption Engine: Yes (AES-NI)
• Hardware-accelerated Transcoding: Yes
• System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
• Maximum Memory: 16 GB (2 x 8GB)
• Memory Slot: 2 x SODIMM DDR4
• Flash Memory: 4GB (Dual boot OS protection)
• Drive Bay: 2 x 3.5-inch SATA 6Gb/s
• Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives (Consult the QNAP website for a full list of compatible storage drives.)
• Hot-swappable: Yes (Not supported M.2 SSD)
• M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x1
• SSD Cache Acceleration Support: Yes
• 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
• 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via PCIe expansion card
• 10 Gigabit Ethernet Port: Optional via PCIe expansion card
• Wake on LAN (WOL): Yes
• Jumbo Frame: Yes
• PCIe Slot: 1; Slot 1: PCIe Gen 3 x2
• Card dimensions for PCIe slot：190 x 68.9x 18.76 mm
• USB 2.0 port: 2
• USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
• IR Sensor: Yes (Optional QNAP RM-IR004 remote control)
• HDMI Output: 1, HDMI 2.1 (up to 4096 x 2160 @ 60Hz)
• Form Factor: Tower
• LED Indicators: Power/Status, LAN, USB, HDD1-2
• Buttons: Power, USB copy, Reset
• Operating Temperature: 0 - 40 °C (32°F - 104°F)
• Storage Temperature: -20 - 70°C (-4°F - 158°F)
• Relative Humidity: 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
• Power Supply Unit: 60W adapter, 100-240V
• Power Consumption: Disk Standby Mode: 18.288
• Power Consumption: Operating Mode, Typical: 29.086 W
• Fan: 1 x 70mm, 12VDC
• System Warning: Buzzer
• Kensington Security Slot: Yes
• Standard Warranty: 3
• Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 1500
• Dimensions (H x W x D): 165 × 105 × 226.5 mm (foot pad not included)
• Weight (Net): 1.55 kg
• Weight (Gross): 2.61 kg

• 1x TS-264-8G
• 2 x 4TB Western Digital Red Plus Drives
• 1x Ethernet cable
• 1x Power cord
• 6x Flat head screw (for 3.5" HDD)
• 6x Flat head screw (for 2.5" HDD)
• 1x AC Adapter
• 1x Quick installation guide (QIG)
