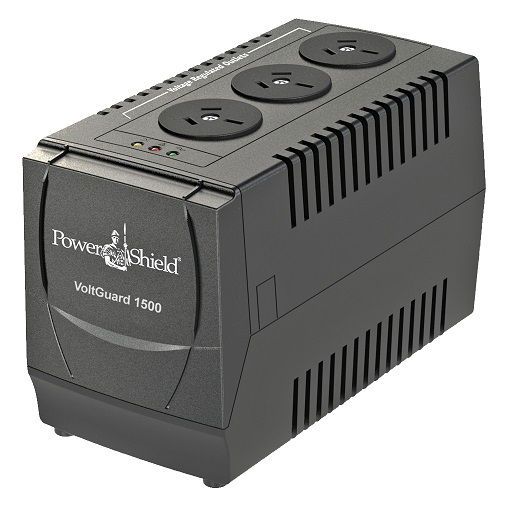

PowerShield VoltGuard 1500VA Automatic Voltage Regulator

The PowerShield VoltGuard AVR (Automatic Voltage Regulator) will automatically maintain a safe voltage level to protect sensitive electronics. This cost effective, compact device will provide a constantly regulated output voltage, ensuring that your sensitive electronic equipment is always receiving voltage within an acceptable range. The VoltGuard also has over voltage and under voltage protection included as standard, which will turn off the supply to your equipment when the utility voltage moves out of the safe range.

• Exceptional Surge Protection. Offering the best protection in its class, the VoltGuard protects against damaging surges.
• Accepts very wide input voltage range.
• Protects against damaging over voltage and under voltage.
• Extremely fast response to input fluctuations
• Stable regulated output voltage within 10% of nominal
• Provides over-temperature and overload protection.
• Three surges protected Australian outlet sockets.

VoltGuard AVR:

• Mobel: VoltGuard 1500
• Model Number: PSVG1500
• Capacity: 1500VA / 750W

Input:

• Voltage: 240V AC
• Voltage Range: 184~284V AC
• Frequency Range: 50Hz

Output:

• Voltage Regulation: 240V AC ± 10%

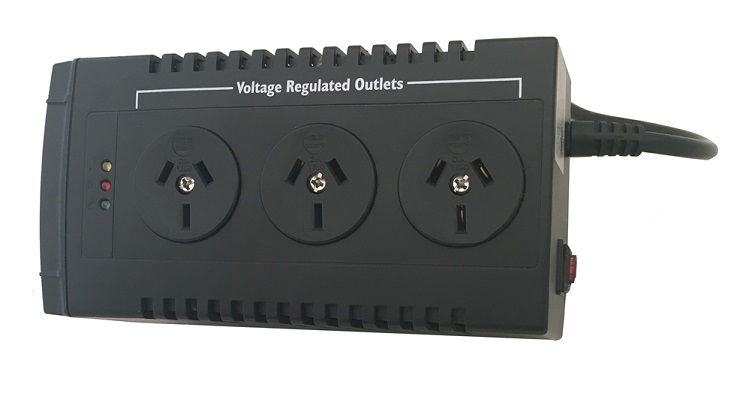

• Outlet Sockets: 3 x Australian

Indicator:

• Power LED: Green
• AVR LED: Yellow
• Over/Under Voltage LED: Red

Environment:

• Temperature: 0°C~40°C
• Humidity: 0%~90% RH (Non-condensing)
• Noise Level: Less than5dB

Protection:

• Surge: 312 Joules / 6500 Amps
• Safety: EN62040 -1 -1 2003, IEC60950 -1 : 2001
• EMC: EN62040 -2 2006

Physical:

• Dimension (L x W x H): 175 x 90 x 115mm
• Net Weight: 1.96 kg
