Key Details:
- Model: SGS-6340-20S4C4X
- Part #: VT00314
- Warranty: 3 Years
- Brand: Planet Technology
Ask Our Experts:

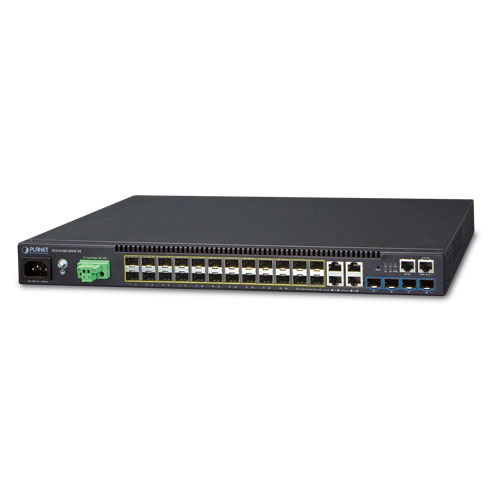

Planet SGS-6340-20S4C4X 20 Port 100/1000X SFP + 4 Port Gigabit TP/SFP + 4 Port 10G SFP+ Gigabit Ethernet Layer 3 Stackable Managed Switch
PLANET SGS-6340-20S4C4X is a Layer 3 Stackable Managed Gigabit Switch that provides high-density performance by its Layer 3 Gigabit static routing with 10Gbps uplink and multiple SFP fibre interfaces delivered in a rugged strong case. The administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the 10G network efficiently. Besides, with 128Gbps switching fabric, the SGS-6340-20S4C4X can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers for ISP and enterprise VoIP, video streaming, and multicast applications.
AC and DC Redundant Power to Ensure Continuous Operation:
The SGS-6340-20S4C4X is equipped with one 100~240V AC power supply unit and one additional -48 ~ -60V DC power supply unit for redundant power supply installation. A redundant power system is also provided to enhance the reliability with either AC or DC power supply unit. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. Furthermore, with the -48 ~ -60V DC power supply implemented, the SGS-6340-20S4C4X can be applied as the telecom level device.
_Layer 3 Routing Support:
The SGS-6340-20S4C4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The maximum number of hops allowed for the RIP is 15. The OSPF is an interior dynamic routing protocol for autonomous system based on link-state. The protocol creates a link-state database by exchanging link-states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.
High Performance:
The SGS-6340-20S4C4X boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.
Abundant IPv6 Support:
The SGS-6340-2084C4X provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR (Weighted Round Robin) and RADIUS authentication. The SGS-6340-20S4C4X thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.
Excellent and Secure Traffic Control:
The SGS-6340-20S4C4X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms and enterprises. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. The ACL policies supported can classify the traffic by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic. The SGS-6340-20S4C4X also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users. Thus, the SGS-6340-20S4C4X empowers ISP and enterprises to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.
Robust Layer 2 Features:
The SGS-6340-20S4C4X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. The VLAN groups allowed to be on the SGS-6340-20S4C4X will be maximally up to 256. By supporting port aggregation, the SGS-6340-20S4C4X allows the operation of a high-speed trunk combined with multiple ports. It enables up to 128 groups for trunking with a maximum of 8 ports for each group.
Efficient Management:
The SGS-6340-20S4C4X supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. For efficient management, the SGS-6340-20S4C4X Managed Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the SGS-6340-20S4C4X offers an easy-to-use, platform-independent management and configuration facility. The SGS-6340-20S4C4X supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the SGS-6340-20S4C4X can be accessed via Telnet and the console port. Moreover, the SGS-6340-20S84C4X offers secure remote management by supporting SSH connection which encrypts the packet content at each session.
Flexibility and Extension Solution:
The SGS-6340-2084C4X provides twenty-four 100/1000Mbps dual speed SFP Fibre ports, four 1/10Gbps SFP+ Fibre ports, and four 10/100/1000Mbps TP/SFP combo ports. Each of the SFP+ slots supports Dual-Speed, 1OGBASE-SR/LR or 1000BASE-SX/LX. Therefore, the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fibre) or up to 10/20/30/40/50/70/120 km (single-mode fibre or VWWDM fibre). They are well suited for applications within the enterprise data centres and distributions.
Physical Ports:
- 24x 100/1000BASE-X mini-GBIC/SFP slots
- 4x 10/1 00/1000BASE-T RJ45 copper ports, shared with port-21 to port-24
- 4x 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
- RJ45 to DBS console interface for switch basic management and setup
IP Stacking:
- Connects with stack member via both Gigabit TP and SFP interfaces
- Single IP address management, supporting up to 24 units stacked together
IP Routing Features:
- Supports maximum 128 static routes and route summarization
- Supports dynamic routing protocol: RIP and OSPF
Layer 2 Features:
- Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
- Supports auto-negotiation and half-duplex/full-duplex modes for all 1OBASE-T, 100BASE-TX and 1000BASE-T ports
- Auto-MDI/MDI-X detection on each RJ45 port
- Prevents packet loss flow control: IEEE 802.3x pause frame flow control in full-duplex mode, Back-pressure flow control in half-duplex mode
- High performance Store-and-Forward architecture, broadcast storm control, port loopback detect
- 16K MAC address table, automatic source address leaming and aging
- Supports VLAN: IEEE 802.1Q tag-based VLAN, GVRP for dynamic VLAN management, Up to 256 VLANs groups, out of 4041 VLAN IDs, Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported, Private VLAN Edge (PVE) supported, GVRP protocol for Management VLAN, Protocol-based VLAN, MAC-based VLAN, IP subnet VLAN
- Supports Link Aggregation: Maximum 128 trunk groups with up to 8 ports per trunk group, IEEE 802.3ad LACP (Link Aggregation Control Protocol), Cisco ether-channel (static trunk)
- Supports Spanning Tree Protocol: STP, IEEE 802.1D (Classic Spanning Tree Protocol), RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol), MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN), BPDU & root guard
- Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
- Provides port mirror (many-to-1)
Quality of Service:
- 8 priority queues on all switch ports
- Supports strict priority and WWRR (Weighted Round Robin) CoS policies
- Traffic classification: IEEE 802.1p CoS/ToS, IPv4APv6 DSCP, Port-based WRR
- Strict priority and WRR CoS policies
Multicast:
- Supports IPv4 IGMP snooping v1, v2 and v3; and IPv6 MLD v1 and v2 snooping
- Querier mode supports
- Supports Multicast VLAN Register (MVR)
Security:
- IEEE 802.1x port-based network access authentication
- MAC-based network access authentication
- Built-in RADIUS client to co-operate with the RADIUS servers for IPv4 and IPv6
- TACACS+ login users access authentication
- IP-based Access Control List (ACL)
- MAC-based Access Control List
- Supports DHCP snooping
- Supports ARP inspection
- IP Source Guard prevents IP spoofing attacks
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
Management:
- Management IP for IPv4 and IPv6
- Switch Management Interface: Console/Telnet Command Line Interface, Web switch management, SNMP v1, v2c and v3 switch management, SSH/SSL secure access
- BOOTP and DHCP for IP address assignment
- Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
- SNTP (Simple Network Time Protocol) for IPv4 and IPv6
- User privilege levels control
- Syslog server for IPv4 and IPv6
- Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
- Supports ping, trace route function for IPv4 and IPv6
Environment:
- Operating Temperature: 0 ~ 50 °C
- Operating Relative Humidity: 5 ~ 90% (non-condensing)
- Storage Temperature: -10 ~ 70 °C
- Storage Relative Humidity: 5 ~ 90% (non-condensing)
Hardware Specifications:
- Copper Ports: 4x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with port-21 to port-24
- SFP/mini-GBIC Slots: 24x 100/1000BASE-X SFP interfaces, Compatible with 1QOBASE-FX SFP transceiver
- SFP+ Slots: 4x 10GBASE-SR/LR SFP+ interface (port-25 to port-28), Compatible with 1Q00BASE-SX/LX/BX SFP transceiver
- Console: 1 x RJ45-to-RS232 serial port (9600, 8, N, 1)
- Switch Architecture: Store-and-forward
- Switch Fabric: 128Gbps/Non-blocking
- Switch Throughput: 95.24Mpps
- Address Table: 16K MAC address table with auto learning function
- Shared Data Buffer: 1.5MB
- Flow Control: Back pressure for half-duplex, IEEE 802.3x pause frame for full-duplex
- Jumbo Frame: 9KB
- System LEDs: PWR, SYS, Ports: 10/100/1000T RJ45
- Port LEDs: LNK/ACT, 100/1 000X SFP Slot: LNK/ACT, 1HN0G SFP+ Slot: LNK/ACT
- Power Consumption: 54.5 watts/185.96 BTU (maximum)
- Power Requirements: AC 100~240V, 50/60Hz, DC -48 ~ -60V
- Fan: 2
- Dimensions (Wx D x H): 442 x 220 x 44 mm, 1U height
- Weight: 2821g
