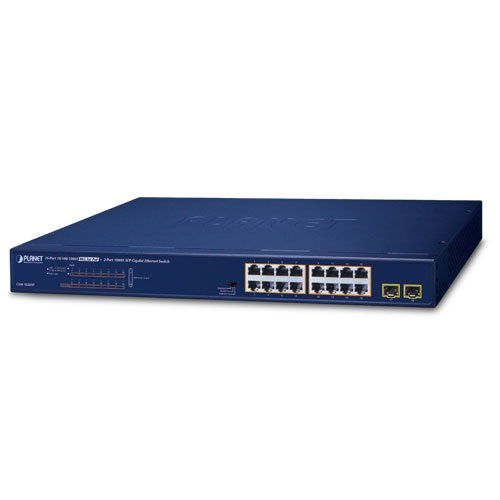

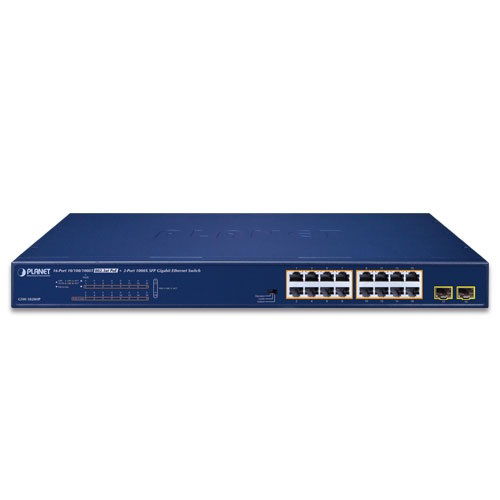

Planet GSW-1820HP 16 Port Gigabit Ethernet 10/100/1000BASE-T PoE Unmanaged Switch + 2x Gigabit SFP

To facilitate 30W PoE power network applications with Gigabit speed transmission, PLANET GSW-1820HP is equipped with 16 10/100/1000BASE-T Gigabit Ethernet ports and 2 1000BASE-X SFP interfaces with the inner power system. With a total of 240 watts of PoE budget, it features high-performance Gigabit IEEE 802.3af PoE (up to 15.4W) and IEEE 802.3at PoE+ (up to 30W) capabilities on all ports.

• 16-port 10/100/1000BASE-T Gigabit RJ45 copper with 802.3at PoE+ injector function
• 2 1000BASE-X SFP slots
• Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
• Up to 16 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 30 watts for each PoE port, all power up to 240W PoE budget.
• Each port supports 54V DC power to PoE powered device
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m

Hardware Specifications:

• 10/100/1000BASE-T Copper Ports: 16 auto-MDI/MDI-X ports
• 802.3af/802.3at PoE+ Injector Port: 16
• 1000BASE-X SFP/mini-GBIC Slots: 2
• DIP Switch: Selectable operation mode: Standard, VLAN, Extend
• Dimensions (W x D x H): 440 x 208 x 44 mm (1U height)
• Enclosure: Metal
• Weight: 2.55kg

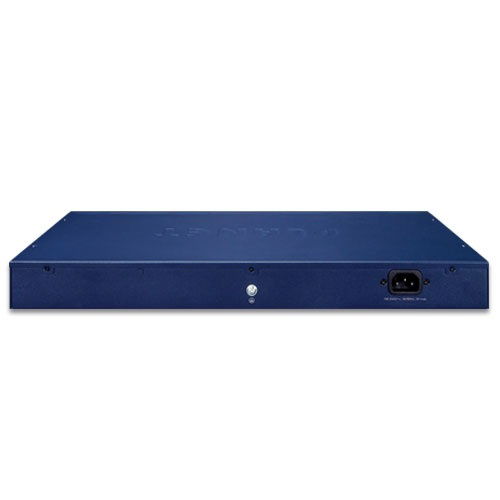

• Power Requirements: 100~240V AC, 50/60Hz,3A max.
• Power Consumption/Dissipation: Max. 275 watts/938 BTU
• Thermal Fan: 2
• Protection: 6KV surge protection, 8KV ESD protection
• LED Indicators: System: Power (Green), 10/100/1000T RJ45 Interfaces, 1000 LNK / ACT (Green), 10/100 LNK/ACT (Amber), PoE (Amber), 1000X SFP Interfaces, 1000 LNK / ACT (Green)

Switching:

• Switch Architecture: Store-and-Forward
• Switch Fabric: 36Gbps/non-blocking
• Switch Throughput@64bytes: 26.8Mpps
• MAC Address Table: 8K entries
• Jumbo Frame: 9216 bytes
• Flow Control: IEEE 802.3x pause frame for full duplex; back pressure for half duplex

Power over Ethernet:

• PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE, Backward compatible with IEEE 802.3af Power over Ethernet
• PoE Power Supply Type: End-span: 1/2 (+), 3/6 (-)
• PoE Power Output: Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af), Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
• PoE Power Budget: 240 watts
• Number of PDs, 7 watts: 16
• Number of PDs, 15.4 watts: 15
• Number of PDs, 30 watts: 8

Standards Conformance:

• Regulatory Compliance: FCC Part 15 Class A, CE
• Standards Compliance: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3z Gigabit SX/LX, IEEE 802.3x flow control and back pressure, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3az Energy-Efficient Ethernet

Environment:

• Operating: Temperature: 0 ~ 50 degrees C; Relative Humidity: 5 ~ 95% (non-condensing)
• Storage: Temperature: -10 ~ 70 degrees C; Relative Humidity: 5 ~ 95% (non-condensing)
