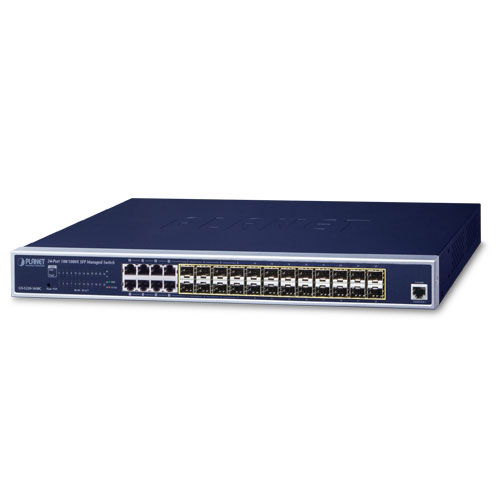

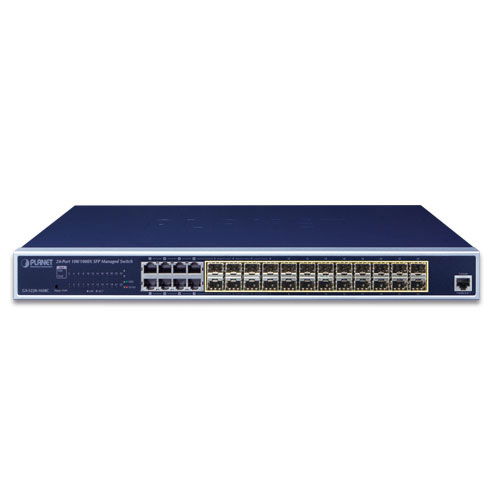

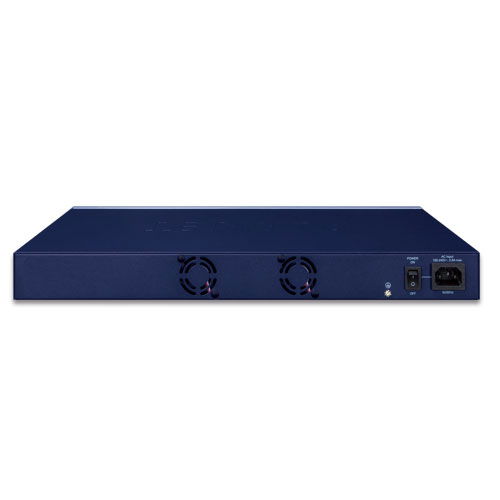

Planet GS-5220-16S8C 24 Port Gigabit Ethernet 10/100/1000BASE-T Layer 2 + Managed Switch - 8 x RJ-45, 24 x SFP

PLANET’s latest Layer 2+ Managed Core Fiber Switches, GS-5220-16S8C and GS-5220-16S8CR, provide high-density performance and support IPv4 and IPv6 hardware Layer 3 static routing and 24 100/1000Base-X dual-speed SFP slots in a 1U case. With these ideal features, they are able to cross over different VLANs and different IP addresses for the purpose of having a highly-secured, flexible management and long-reach networking application. As a fiber backbone switch, they can flexibly work with suitable SFP transceivers to have a long connection of up to 120km via optic fiber cabling. They are well suited for SMBs, campuses and enterprises for their backbone and workgroup network applications by providing affordability, high performance, long distance and stable transmission quality.

Intelligent SFP Diagnostic Mechanism

• The GS-5220-16S8C and GS-5220-16S8CR SFP slots support dual-speed, 1000Base-SX / LX or 100Base-FX fiber transceivers; the distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). They also support SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Redundant AC / DC Power Supply to Ensure Continuous Operation

• The GS-5220-16S8CR is particularly equipped with one 100240V AC power supply unit and one 3660V DC power supply unit to provide an enhanced reliable and scalable redundant power supply installation. The continuous power system is specifically designed to fulfill the demands of high tech facilities requiring the highest power integrity. With the 36~60V DC power supply, the GS-5220-16S8CR is able to act as a telecom level device that can be located in the electronic room.

Effective Alarm Alert for Better Protection

• The GS-5220-16S8C and GS-5220-16S8CR support a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time to find where the problem is. It will help to save time and human resource.

Solution for IPv6 Networking

• Faced with the increasingly large number of IP cameras and wireless APs installed and deployed in all kinds of applications, more and more network facilities start to support the IPv6 protocol for the next-generation networking. By supporting both the IPv4 and IPv6, and numerous management functions with easy and friendly management interfaces, the GS-5220-16S8C and GS-5220-16S8CR are the best choices for IP surveillance and wireless service providers to connect with the IPv6 network.

Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

• The GS-5220-16S8C and GS-5220-16S8CR switches not only provide ultra high transmission performance, and excellent layer 2 and layer 4 technologies, but also layer 3 IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secured, flexible management and simpler networking application.

Robust Layer 2 Features

• The GS-5220-16S8C and GS-5220-16S8CR can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. Via the link aggregation of supporting ports, the GS-5220-16S8C and GS-5220-16S8CR allow the operation of a high-speed trunk combining multiple fiber ports and support fail-over as well.

Enhanced Security

• The GS-5220-16S8C and GS-5220-16S8CR offer a comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. Furthermore, the GS-5220-16S8C and GS-5220-16S8CR provide DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before.

Efficient and Secure Management

• The GS-5220-16S8C and GS-5220-16S8CR Managed Switches are equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the GS-5220-16S8C and GS-5220-16S8CR offer an easy-to-use, platform-independent management and configuration facility. The GS-5220-16S8C and GS-5220-16S8CR support standard Simple Network Management Protocol (SNMP) and can be managed via any management software that supports SNMP protocol. For text-based management, the GS-5220-16S8C and GS-5220-16S8CR can be accessed via Telnet. The console port with Cisco-like command line interface allows the users to make it work more easily. Moreover, the GS-5220-16S8C and GS-5220-16S8CR offer secure, remote management by supporting SSH, SSL and SNMPv3 connections which encrypt the packet content at each session.

Hardware:

• Copper Ports: 8 x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports, shared with Port-1~Port-8
• SFP/mini-GBIC Slots: 24 x 100/1000Base-X dual-speed SFP interfaces
• Console: 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
• Switch Architecture: Store-and-Forward
• Switch Fabric: 48Gbps / non-blocking
• Throughput: 35.7Mpps@64Bytes
• Address Table: 16K entries, automatic source address learning and ageing
• Shared Data Buffer: 16M bits
• Flow Control: IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
• Jumbo Frame: 10K bytes
• Reset Button < 5 sec: system reboot, > 5 sec: Factory default
• LED System: PWR (Green), DC (Green) (GS-5220-16S8CR Only), Fault (Red), FAN (Red), 10/100/1000T RJ45 Interfaces (Port 1 to Port 8): 1000Mbps LNK/ACT (Green), 10/100Mbps LNK/ACT (Orange), 100/1000Mbps SFP Interfaces (Port 1 to Port 24): 1000Mbps LNK/ACT (Green), 100Mbps LNK/ACT (Orange)
• Power Requirements: GS-5220-16S8C: 100240V AC, 50/60Hz, GS-5220-16S8CR: 100240V AC, 50/60Hz, 48V DC @ 0.6A, Range: 36 ~ 60V
• Power Consumption: 45 watts / 153 BTU (max.)
• ESD Protection: 6KV DC
• Dimensions (W x D x H): 440 x 200 x 44.5 mm, 1U height
• Weight: 2745g

Layer 2 Management Function:

• Port Configuration: Port disable / enable
  Auto-negotiation: 10/100/1000Mbps full and half duplex mode selection
  Flow control: disable / enable
  Port Status: Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
  Port Mirroring: TX / RX / Both, Many-to-1 monitor
  VLAN: 802.1Q tagged based VLAN, Q-in-Q tunneling, Private VLAN Edge (PVE), MAC-based VLAN, Protocol-based VLAN, Voice VLAN, IP Subnet-based VLAN, MVR (Multicast VLAN Registration), Up to 255 VLAN groups, out of 4094 VLAN IDs
  Link Aggregation: IEEE 802.3ad LACP / Static Trunk, 12 groups of 8-port trunk supported
  Spanning Tree Protocol: STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol, MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
  QoS: Traffic classification based, Strict priority and WRR, 8-Level priority for switching, Port Number, 802.1p priority, 802.1Q VLAN tag, DSCP/TOS field in IP packet, IGMP Snooping: IGMP (v1/v2/v3) Snooping, up to 255 multicast groups, IGMP Querier mode support
  MLD Snooping: MLD (v1/v2) Snooping, up to 255 multicast groups, MLD Querier mode support
  Access Control List: IP-based ACL / MAC-based ACL, Up to 256 entries
  Bandwidth Control: Per port bandwidth control, Ingress: 100Kbps1000Mbps, Egress: 100Kbps1000Mbps

Layer 3 Functions:

• IP Interfaces: Max. 128 VLAN interfaces
  Routing Table: Max. 32 routing entries
  Routing Protocols: IPv4 hardware Static Routing, IPv6 hardware Static Routing

Management:
asic Management Interfaces: Console / Telnet / Web browser / SNMP v1, v2c
Secure Management Interfaces: SSH, SSL, SNMP v3
SNMP MIBs: RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interface MIB, RFC 2665 Ether-Like MIB, RFC 2819 RMON MIB (Group 1, 2, 3 and 9), RFC 2737 Entity MIB, RFC 2618 RADIUS Client MIB, RFC 2863 IF-MIB, RFC 2933 IGMP-STD-MIB, RFC 3411 SNMP-Frameworks-MIB, RFC 4292 IP Forward MIB, RFC 4293 IP MIB, RFC 4836 MAU-MIB, IEEE 802.1X PAE, LLDP

Standards Conformance:

• Regulation Compliance: FCC Part 15 Class A, CE
• Standards Compliance: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/100BASE-FX, IEEE 802.3z 1000BASE-SX/LX, IEEE 802.3ab 1000BASE-T, IEEE 802.3ae, IEEE 802.3x flow control and back pressure, IEEE 802.3ad port trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.1ab LLDP, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, FRC 3810 MLD version 2

Environments:

• Operating Temperature: 0 ~ 50 degrees C
• Operating Relative Humidity: 5 ~ 95% (non-condensing)
• Storage Temperature: -10 ~ 70 degrees C
• Storage Relative Humidity: 5 ~ 95% (non-condensing)
