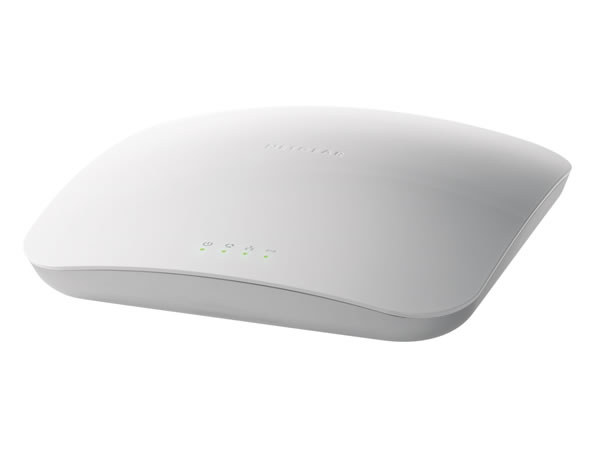

Netgear WNAP320 ProSafe Wireless-N Access Point

• Wireless-N with extended coverage and speed
• Dual-band support for 11g and 11n
• Wireless Controller support (WC7520) for multiple AP management
• Advanced Enterprise security

• Wireless-N speeds up to 10x the coverage and 15x the speed of 802.11g networks
• Improved coverage and 10x greater speed than Wireless-G
• Advanced Speed and Range with Comprehensive Internet Security
• Flexible wireless management options for your wireless deployment needs
• Advanced Enterprise security features: WPA2, rogue AP detection and 802.1x with RADIUS support
• Integrated Power over Ethernet (IEEE 802.3af PoE) lowers deployment costs
• Supports IEEE 802.3af PoE for easy placement in optimal locations—desktop, wall-mount or ceiling
• Deploy over large areas as a bridge or a repeater both in point-to-point and point-to-multipoint with Wireless Distribution System (WDS)
• Comprehensive SNMP functionality for advanced network management
• Mounting kit provides for wall or ceiling placements
• Internal antenna factory-optimized for maximum RF performance
• Antenna take-offs enable optional accessory antenna attachment

Standards

• IEEE 802.11n standard, 2.4GHz
• IEEE 802.11g, IEEE 802.11b, 2.4GHz
• WMM-Wireless MultiMedia prioritization
• WDS-Wireless Distribution System
• Power over Ethernet (PoE) IEEE 802.3af Network Ports

Physical Specifications

• Physical Dimensions (W x D x H): 253.75 x 253.76 x 54.76 mm
• Weight: 886g

Physical Interfaces

• One (1) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with Auto Uplink (Auto MDI-X) with IEEE 802.3af Power over Ethernet (PoE) support
• Power adapter: 12 VDC, 1A
• Four (4) LEDs: Power/Test, LINK speed, LAN, WLAN

Security

• Wi-Fi Protected Access (WPA, WPA2)
• Wired Equivalent Privacy (WEP) 64-bit, 128-bit, and 152-bit encryption
• IEEE802.1x RADIUS authentication with EAP TLS, TTLS, PEAP
• Wireless access control to identify authorized wireless network devices
• MAC address authentication
• VPN pass-through support
• Secure SSH Telnet

Network Management

• Remote configuration and management through Web browser, SNMP or Telnet with command line interface (CLI)
• SNMP management supports SNMP MIB I, MIB II, 802.11 MIB and proprietary configuration MIB
• Wireless Management Solution for up to 5 Access Points*
• Central management system (WMS5316) for up to 16 AP deployment*
• Fully-featured Wireless controller (WC7520) support for medium-sized businesses with up to 150 APs and redundancy

Advanced Wireless Features
Wireless Distribution System (WDS)

• Bridge mode: Point-to-point wireless WDS mode
• Bridge mode: Point-to-multipoint wireless WDS mode
• Repeater mode
• NETGEAR Wireless Client mode: AP works as a client
• Adjustable Transmit Power Control (TPC) from 100 mW down to 0 mW

Warranty

• Access Point: ProSafe Lifetime Warranty
• Power Supply: 3-year Warranty (see information enclosed)

• ProSafe Wireless-N Access Point (WNAP320)
• Ethernet cable
• Wall-mount kit
• Installation guide
• Resource CD
• 12V, 1A power supply
• Warranty/support information card
