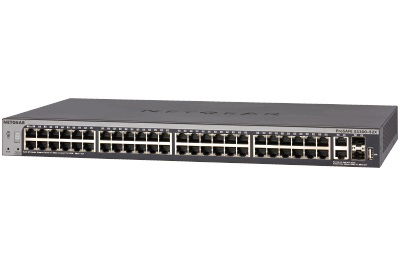

Netgear S3300-52X 48-port Gigabit Smart Switch 4 x 10G ports

Overview:

The Most Cost Efficient 10G Connectivity for SMB
The ProSAFE S3300 Series are a new generation of Gigabit Stackable Smart Switches inclusive of 4 10G ports, which can be used for uplinks and/or stacking between other S3300 switches. Dependable switched LAN network design mandates an architecture that can both scale as organization networks grow-and be flexible enough to provide support for faster server and storage connections needs. As SMBs produce and consume more data, Gigabit to the desktop increasingly needs to be underpinned with 10GbE connectivity to the core to ensure a consistent, seamless user experience. This new generation of switches provides SMB customers with the most cost-effective 10G connections between the access and aggregation layer of the network.

Setting New Standards for a Future Proof Network
The ProSAFE S3300 Smart Stackable Series is the blueprint for a dependable future-proof network. From greenfield network requirements to network refresh projects, the ProSAFE S3300 series sets new standards in defining flexibility and choice for SMBs looking to leverage reliable, future proof technologies at affordable price points. Packed with rich enterprise-class feature sets and advanced security measures, it is the only advanced smart switch platform to offer both dedicated 10GBase-T and SFP+ uplink and stacking connectivity in both PoE+ and non PoE configurations – a combination that delivers an unrivalled and powerful interconnect solution for access to core connectivity.

Powerful Platform to Support Demanding Applications
With a choice of 24 or 48 port models, these switches can deliver on demanding tasks such as data replication and backup, video on demand and high volume transaction processing. Up to 6 switches across the series can be stacked for a total of 288 network ports, with 40Gbps stacking bandwidth and full redundancy for unsurpassed reliability. Add in the ability to deliver PoE+ to every port with supplemental RPS and application diversity is readily supported from PTZ IP camera surveillance solutions through to high powered wireless access points and VoIP phones. The inclusion of 10GBase-T uplink capability as standard ensures an affordable way to leverage existing copper installations – if Gigabit speeds and link aggregation meets current requirements, simply migrate to 10GbE connectivity at a pace and time to suit your needs. With lifetime warranty, lifetime NBD and lifetime online technical chat to back you up, you’ll have access to an extensive support service to help protect your investment and reduce downtime risk over the long term.

Features:

Performance

• 8 Priority queues
• Weighted Round Robin (WRR) Priority queuing
• 16K Media Access Control (MAC) addresses with 48-bit MAC address
• 512 Multicast groups
• 32 static routes 15 routed VLANs
• 512 ARP Cache entries
• 8K DHCP snooping bindings
• 100 shared rules for MAC, IP and IPv6 ACLs
• up to 9K packet size Jumbo frame support

L2 Services - VLANs

• 256 VLAN supported
• IEEE 802.1Q VLAN Tagging
• IP based VLANs
• MAC based VLANs
• Auto Voice VLAN based on phones OUI bytes (internal database, or user-maintained) or protocols (SIP, H323
• Auto Video

Network Security

• IEEE 802.1x
• Guest VLAN
• RADIUS based VLAN assignment via .1x
• 600 Dynamic learned entries
• 20 Static entries
• MAC-based .1x
• RADIUS Accounting
• L2/L3/L4 Access Control Lists (ACLs)
• IP-based ACLs (IPv4 and IPv6)
• MAC-based ACL
• TCP/UDP-based ACL
• MAC lockdown
• MAC lockdown by the number of MACs
• IEEE 802.1x Radius Port Access Authentication
• Port-based security by locked MAC addresses
• IP Source Guard
• Dynamic ARP inspection
• Network Storm Protection, DoS
• Broadcast, Unicast, Multicast DoS Protection
• DoS attacks Prevention

L2 Services - Availability

• Broadcast Storm Control
• IEEE 802.3x (Full Duplex and flow control)
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1w Rapid Spanning Tree
• IEEE 802.1s Multiple Spanning Tree
• BPDU Guard

L2 Services - Multicast Filtering

• IGMP Snooping (v1, v2 and v3)
• MLD Snooping Support (v1 and v2)
• IGMP Snooping queries
• Block unknown Multicast
• Multicast VLAN Registration

Stacking

• 10G SFP+ or 10GBase-T copper stacking interface
• Max. of 6 switches within a stack
• 40G Bi-directional Stacking bandwidth

L3 Services – DHCP

• DHCP Client
• DHCP Snooping

L3 Services - IPv4 Routing

• 32 Static Routes
• 512 Host ARP Table entries
• Router Discovery (IRDP)

Link Aggregation

• IEEE 802.3ad - LAGs
• Manual LAG
• 26 LAGs with max 8 member in each LAG

Network Monitoring and Discovery Services

• 802.1ab LLDP
• SNMP
• RMON 1,2,3,9

Management

• Password management
• Configurable Management VLAN

Quality of Service (QoS)

• Access Lists
• L2 MAC, L3 IP and L4 Port ACLs
• Rate limiting (egress only)
• Port-based QoS
• Support for IPv6 fields
• DiffServ QoS
• IEEE 802.1p COS
• Dst MAC and IP
• IPv4 and v6 DSCP
• TCP/UDP-based
• WRED (Weighted Deficit Round Robin)
• Strict Priority queue technology
• Timing and Synchronization for Time-Sensitive Applications (IEEE802.1AS)
• Stream Reservation Protocol (SRP) (IEEE802.1Qat)
• Forwarding and Queuing for Time-Sensitive Streams (IEEE802.1Qav)
• Audio Video Bridging Systems (IEEE802.1BA)

Specifications:

• Product Number: S3300-52X
• Model Description: Gigabit Stackable Smart Switch (48 GE ports, 4 10G ports)
• Number of 10G Ports: 4 Dedicated (2 Copper and 2 Fiber)
• Ordering Number: GS752TX
• Number of PoE/PoE+ ports: None
• Total PoE Power budget (Watts): N/A
• Max MAC entries: 16K
• VLAN (# Supported): 256
• Number of LAGs & # of members: 26 LAGs with max 8 member in each LAG
• Number of priority queues: 8
• Stacking bandwidth: 40G bi-directional
• Internal/External Power Supply: Internal
• Max Power Consumption (Watts): 44.12w
• Number of FANs: 2
• Acoustic Noise Level @25C (dBA): 39
• Operating Temperature: 32° to 122°F (0° to 50°C)
• MTBF: 279,970 hours
• Weight (kg): 3.66kg
• Dimensions (WxDxH) mm: 440 x 257 x 43mm
• Electromagnetic Compliance (A or B): A
