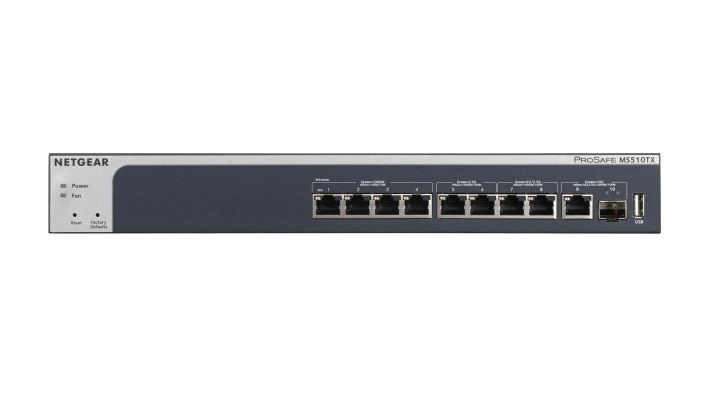

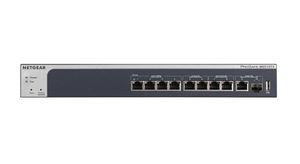

Netgear 8-Port Multi-Gigabit Ethernet Smart Switch with 2 Dedicated 10-Gigabit Uplink Ports

Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy Cat5E / Cat6 cables.

More Powerful Switch with Multi-gigabit/10G Speed:

• 4 x 1G/2.5G ports and 4 x multigig/10G ports
• 8 x Ultra60 PoE++ ports with 295W PoE budget (MS510TXUP only)
• 2 dedicated 10G SFP+ fiber uplink ports

Fast and flexible solution for SMB data, voice and video converged network:

• Non-blocking switching with 140Gbps bandwidth
• Flexible rack-mounting option

Ideal companion to your NETGEAR WAX610:

• Connect and power your WAX610 with MS510TXUP
• Connect your WAX610PA with MS510TXM
• Manage all devices from a single dashboard with NETGEAR Insight

Powerful Connectivity and Security:

• Advanced VLAN support for better network segmentation
• L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
• Advanced per port PoE controls for remote power management of PoE powered devices including operation scheduling
• Advanced QoS (Quality of Service) for traffic prioritization including portbased, 802.1p and L2/L3/L4 DSCPbased
• Auto “denial-of-service” (DoS) prevention
• IGMP Snooping and Querier for multicast optimization
• Egress Rate limiting and priority queuing for better bandwidth allocation
• Port mirroring for network monitoring
• Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
• IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic, IPv6 address assignment
• Cable test to troubleshoot connection issues
• Easy-to-use Web browser-based management GUI available in English, German and Japanese
• SNMP v1, v2c, v3 and RMON remote monitoring

Fully-integrated cloud-manageable devices:

• Optional NETGEAR Insight Remote/Cloud Management on both switch models. Easily activated through the local device GUI.

Smart IT, not Big IT:

• Easy to manage via web-based Management interface or Smart Control Center on Windows PC for multi-switch deployment
• NETGEAR Switch Discovery Tool (NSDT) to discover, register and access to the local browser interface to configure the switches

• Dimensions (W x D x H) : 440 x 204 x 43 mm
• Weight : 2.61 kg
• Gigabit ports : 4 (10M/100M/1G)
• 2.5-Gigabit ports : 2 (100M/1G/2.5G)
• 5-Gigabit ports : 2 (100M/1G/2.5G/5G)
• 10-Gigabit copper ports : 1 (100M/1G/2.5G/5G/10GBASE-T)
• 10-Gigabit fiber SFP+ ports : 1 (1G/10GBASE-X SFP+)
• Switching fabric : 78 Gbps line rate
• Number of PoE ports : N/A
• PoE+ (802.3at) : N/A
• Total PoE Power budget (Watts) : N/A
• Max MAC entries : 16K
• Buffer size : 3MB
• VLAN (Number Supported) : 256
• VLAN routing : Yes
• Dynamic VLAN assignment : Yes
• MLD Snooping : Yes
• Static route : Yes (32 IPv4 + 32 IPv6)
• Host ARP table : Yes (512)
• EEE : Yes
• DoS Prevention : Yes
• Internal/External : Internal 100-240VAC 50-60Hz
• Max consumption (Watts) : 26.1W
• FAN : 1
• Acoustic Noise Level @25C (dBA) : 21
• Operating Temperature : 0° to 50° C
• MTBF at 25° C : 1,078,683 hrs
