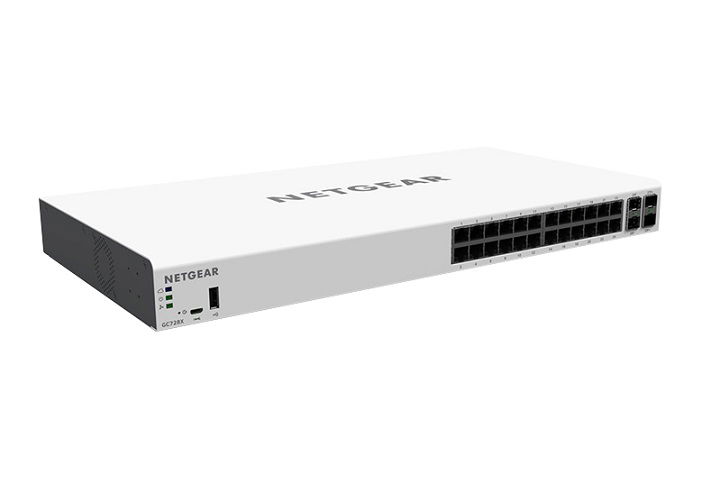

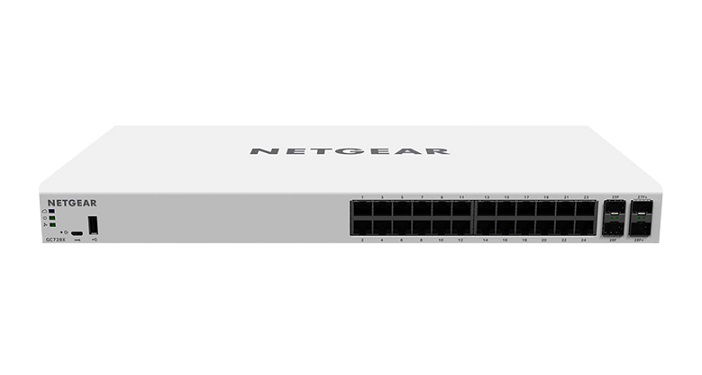

Netgear 28-Port Gigabit Ethernet Smart Managed Switch

NETGEAR Insight Management. Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

Gigabit/10G SFP+:
24 copper Gigabit Ethernet ports, 2 dedicated gigabit SFP fiber ports, and 2 dedicated 10G SFP+ fiber ports

Remote Monitoring and Management from the Palm of your Hand:
With the Netgear Insight management solution, you can setup, manage and monitor all of your networks and multiple locations from anywhere, anytime and any device.

Network-centric configuration and management:
Netgear Insight Managed Switches and Wireless Access Points using Netgear Insight allow for cross-device automated configuration of VLANs, QoS, ACLs, and LAGs. Auto-join and configure (zero-touch provisioning) allows for additional devices added to the network to automatically inherit the network configuration parameters for seamless integration.

Robust Security Features:
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.

• Dimensions (W x D x H): 440 x 224 x 44 mm
• Weight: 2.81 kg
• Gigabit copper ports: 24
• Management: 1-Year Insight subscription included
• SFP / SFP+ 10G Ports: SFP Ports: 2 (dedicated)
• 10G SFP+ Ports: 2 (dedicated)
• Number of PoE/PoE+ ports: N/A
• Total PoE power budget (watts): N/A
• Bandwidth (full-duplex): 92 Gbps
• Buffer size (dynamically shared across ports in use): 1.5 MB
• MAC address database size (48-bit MAC addresses): 16K
• VLAN (number supported): 256
• VLAN routing: Yes
• Dynamic VLAN assignment: Yes
• MLD Snooping: Yes
• Static routes: 32 (IPv4) / 31 (IPv6)
• Link Aggregation / Port Trunking: LACP (802.3ad Dynamic Link Aggregation) & Manual Static LAG
• Number of LAGs & number of members: 24 LAGs with max 8 members in each LAG
• Number of priority queues: 8
• Supported multicast groups: 512
• DoS prevention: Yes
• Loop detection/prevention: Yes
• Jumbo frame support: Up to 9K packets
• EEE (IEEE 802.3az): Yes
• Power supply: Internal: 100-240VAC, 50-60Hz, 1A max (power cord localized to country of sale)
• Max power consumption (Watts): Max power (worst case, all ports used, line-rate traffic) (Watts): 18.5W
• Fan(s) : 1
• Acoustic noise level @ 25°C (dBA): 28 dBA
• Operating temperature: 0° to 50°C (32° to 122°F)
• MTBF (@ 25°C): 1,874,356 hrs (214 yrs)
• Electromagnetic compliance (A or B): Class A
