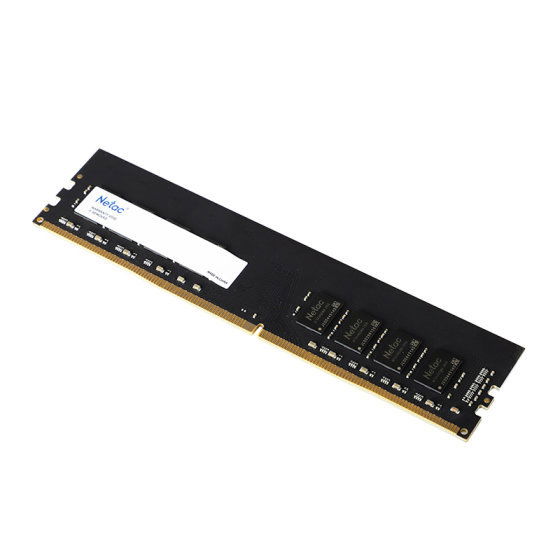

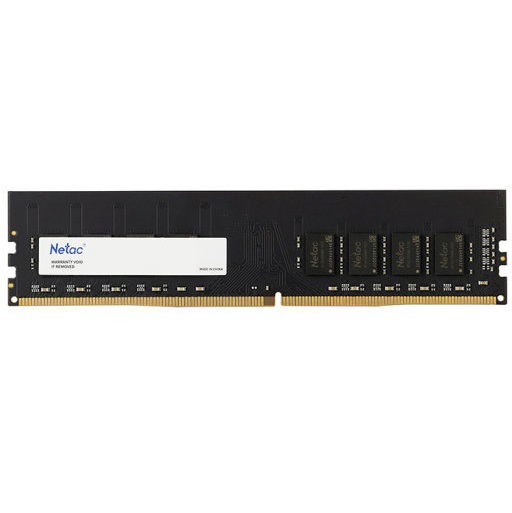

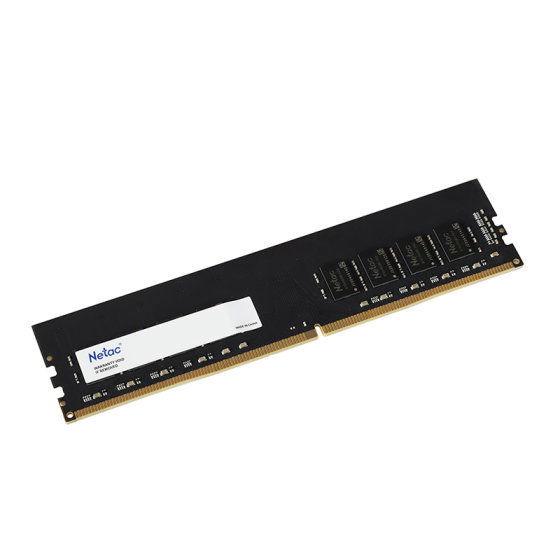

Netac Basic 32GB DDR4 3200MHz UDIMM Memory

Netac Unbuffered DDR4 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR4 SDRAM devices. Each 288- pin DIMM uses gold contact fingers. The SDRAM Unbuffered DIMM is intended for use as main memory when installed in systems such as PCs.

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• On-board I2C serial presence-detect (SPD) EEPROM
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Databus write cyclic redundancy check (CRC)
• Temperature controlled refresh (TCR)
• Command/Address (CA) parity
• Per DRAM Addressability is supported
• 8 bit pre-fetch
• Fly-by topology
• Command/Address latency (CAL)
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• Gold edge contacts
• RoHS Compliant and Halogen-Free

• Type: DDR4 UDIMM
• Capacity: 32GB
• Speed: 3200MHz
• Latency: 22-22-22-52
• Voltage: 1.2V
