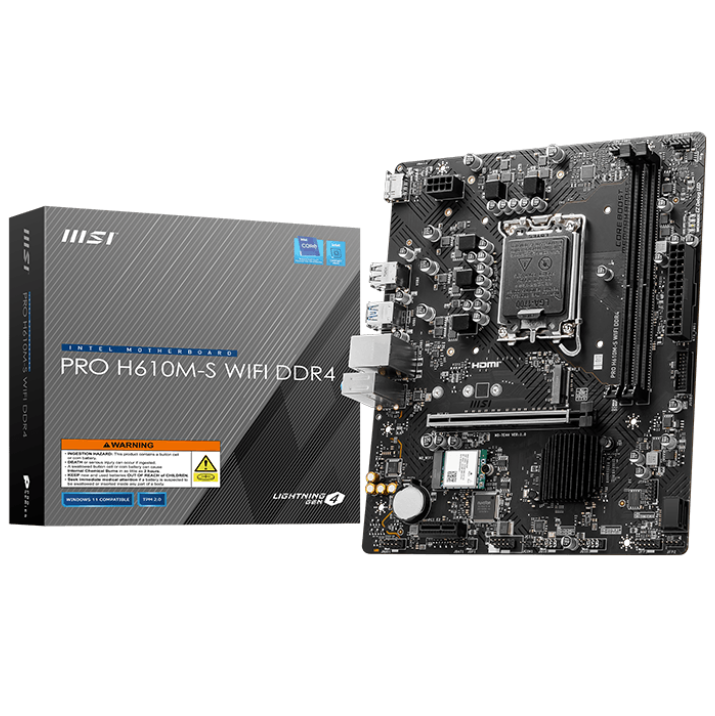

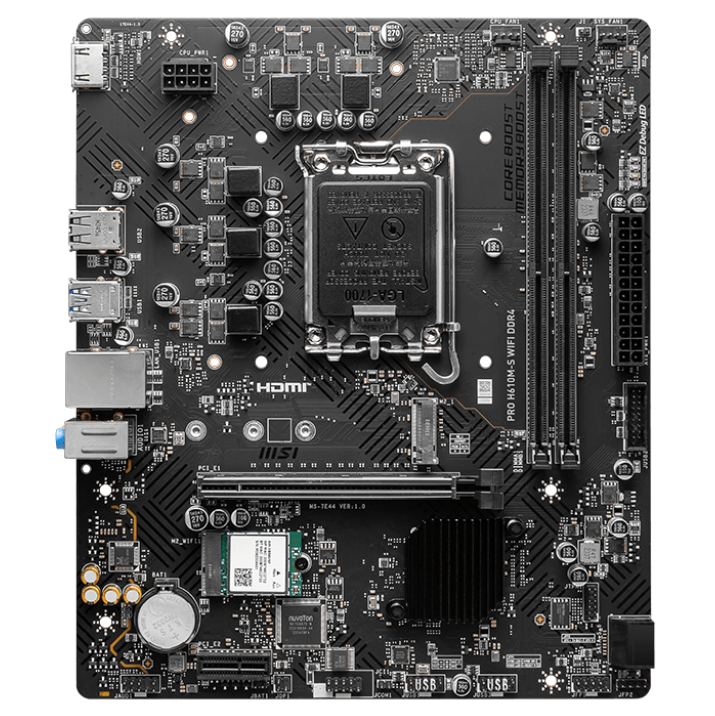

MSI PRO H610M-S WIFI DDR4 Intel LGA1700 H610 mATX Gaming Wi-Fi Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Fully Controllable in Bios and Software:
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Frozr AI Cooling:
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

Connectivity:
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers' need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

Surfacing With the Real MU-MIMO Technology:
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

Lightning Gen 4 PCI-e:
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

• Model Name: PRO H610M-S WIFI DDR4
• CPU Support: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
• CPU Socket: LGA 1700 socket
• Chipset: Intel H610 Chipset
• Graphics Interface: 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
• Display Interface: Support 4K@30Hz as specified in HDMI 1.4 – Requires Processor Graphics
• Memory Support: 2 DIMMs, Dual Channel DDR4-3200 MHz (MAX)
• Storage: 1x M.2 Gen3 x4 32Gbps slot, 2x SATA 6Gbps ports

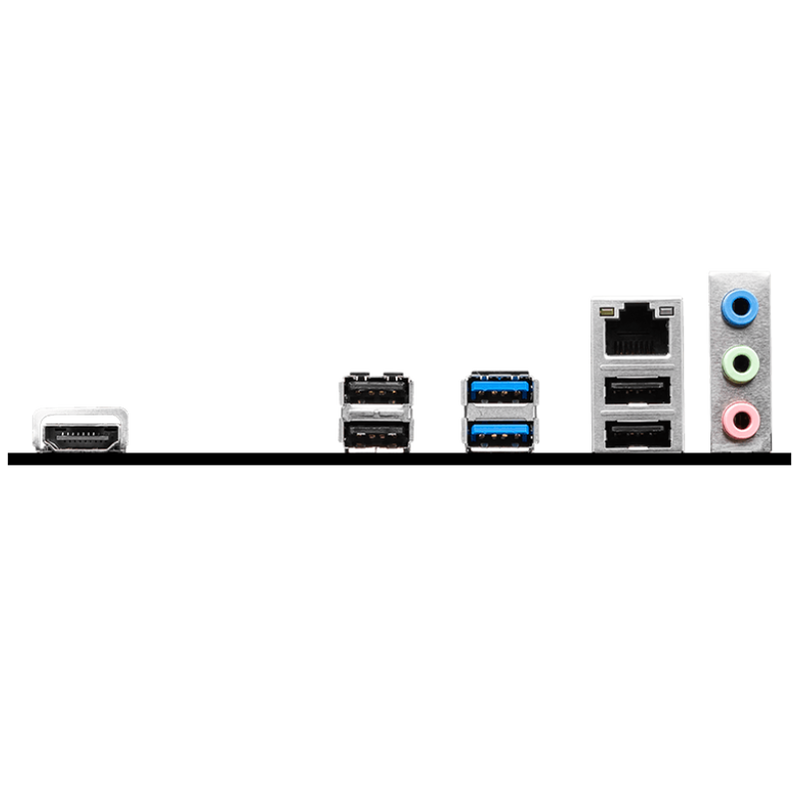

• USB ports: 4x USB 3.2 Gen 1 5Gbps (4 Type-A), 8x USB 2.0
• LAN: Realtek RTL8111H Gigabit LAN
• WiFi / BT: Wi-Fi 6E, Bluetooth 5.3
• Audio: 8-Channel (7.1) HD Audio with Audio Boost
• PCB Info: mATX, 200 x 236.16mm

• 1x PRO H610M-S WIFI DDR4
• 1x Quick Installation Guide
• 1x M.2 Screw/Standoff Set
• 1x Wi-Fi Bracket
• 1x SATA Cable
• 1x I/O Shield
