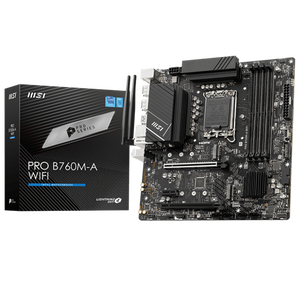

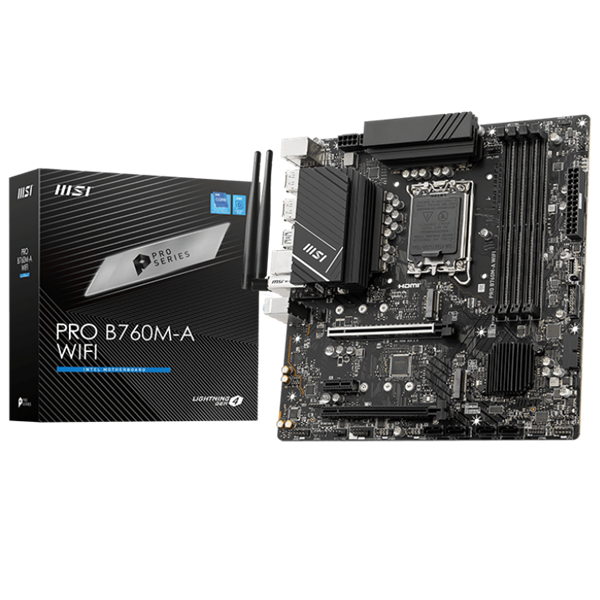

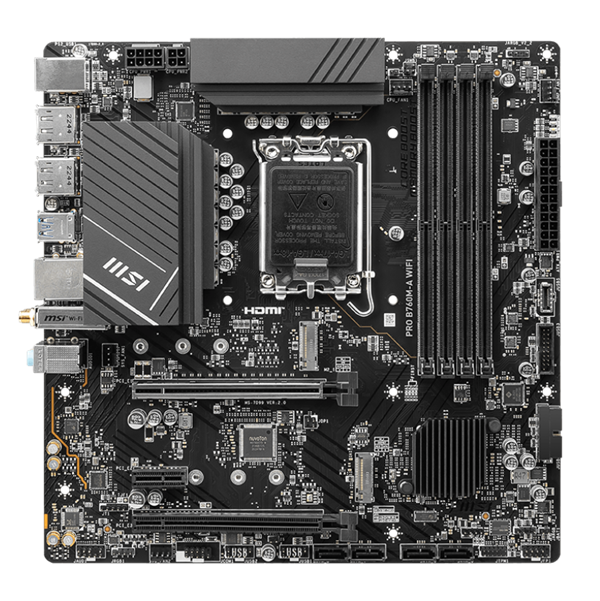

MSI PRO B760M-A WIFI Intel LGA1700 mATX RGB Wi-Fi Motherboard

PRO B760M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.

• Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Chipset: INTEL B760
• CPU: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
• Memory: 4x DDR5, Maximum Memory Capacity 256GB; Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Onboard Graphics: 2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz; 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
• Slot: 2x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
• Storage: 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

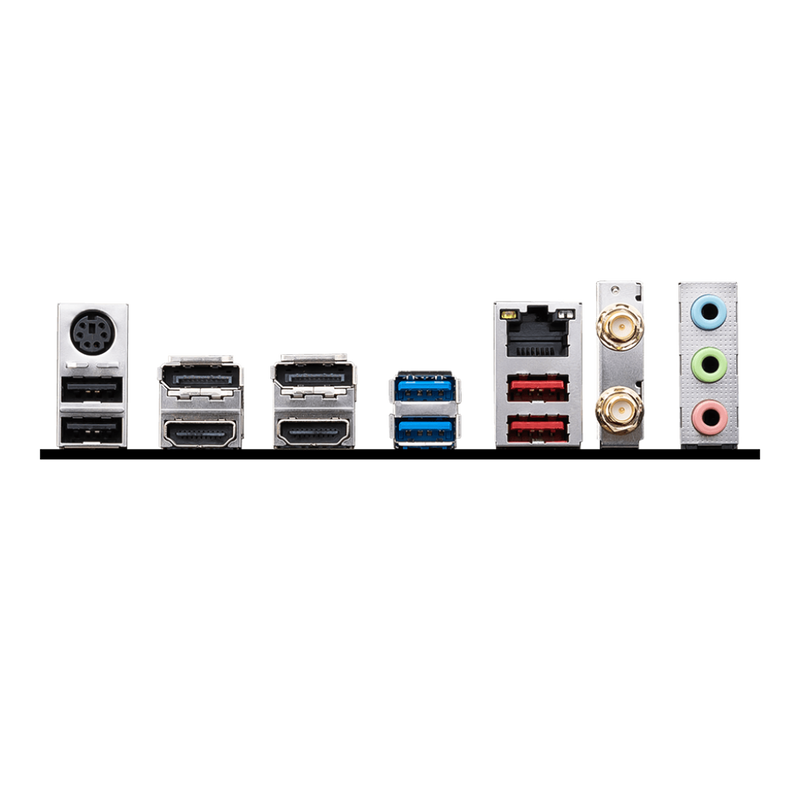

• USB: 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front), 2x USB 10Gbps Type A (Rear)
• LAN: Realtek RTL8125BG 2.5G LAN
• Internal IO: 1x Power Connector (ATX_PWR), 2x Power Connector (CPU_PWR), 1x CPU Fan, 1x Pump Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector (JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 5Gbps Type C ports
• Wireless LAN & Bluetooth: Intel Wi-Fi 6E, Supports Bluetooth 5.3, FIPS, FISMA
• LED Feature: 4x EZ Debug LED
• Operating System: Support for Windows 11 64-bit, Windows 10 64-bit
• PCB Info: mATX, 243.84 x 243.84 mm
