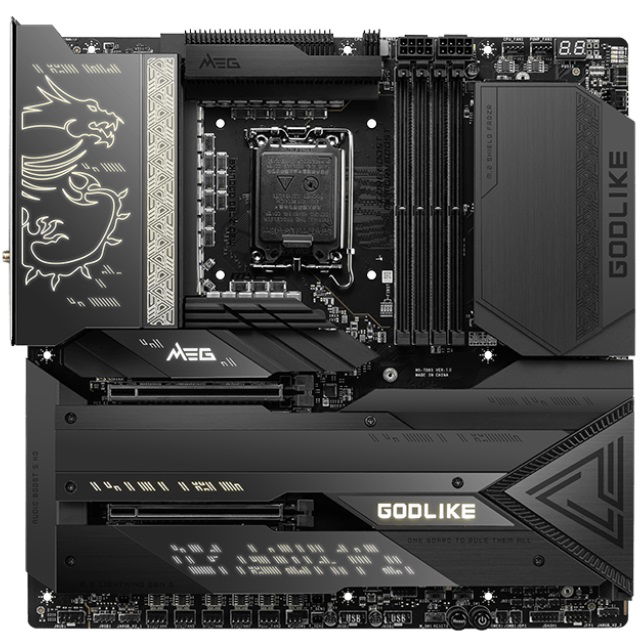

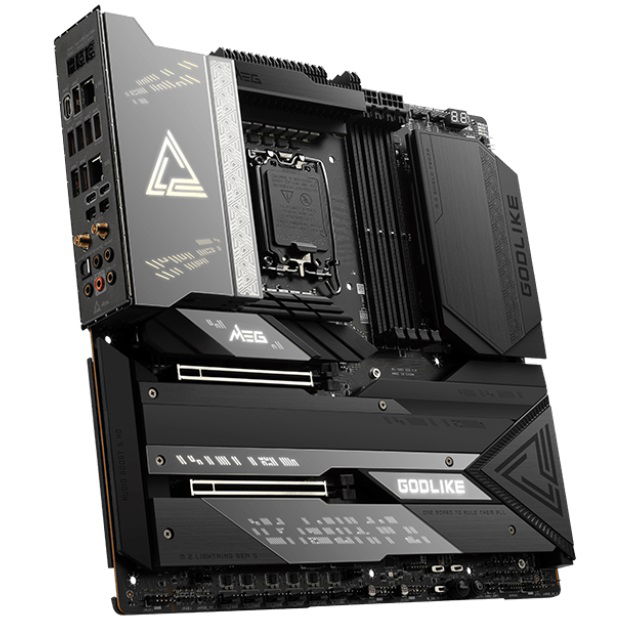

MSI Meg Z790 GODLIKE Intel LGA1700 eATX Gaming Wi-Fi Motherboard

Designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and industry's first M-Vision Dashboard, the MEG Z790 GODLIKE is developed to unleash the extreme gaming potential of the 14th and 13th Gen Intel Core processor and is ready to rule the tournament once again.

• Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
• M-Vision Dashboard: The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
• Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
• Extreme Power Design: 26+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
• Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, Aluminum Cover, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
• Maximum 7 x M.2 Connectors: Onboard septuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
• Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery.
• DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor, Metal Backplate
• 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
• Audio Boost 5 HD: Ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

Model Name:

• MEG Z790 GODLIKE

CPU Support:

• Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

CPU Socket:

• LGA 1700

Chipset:

• Intel Z790 Chipset

Expansion Slots:

• 2x PCIe 5.0 x16 slots

Display Interface:

• 2x Thunderbolt 4 (Type-C), Input from mini DisplayPort

Thunderbolt 4:

• 2x USB Type-C up to 40G,
• USB 4.0 compliant,
• Charging support up to 5V/3A,
• 15W 2x Mini DisplayPort input ports

Memory Support:

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Storage:

• 1x M.2 Gen 5 x4 128Gbps slot,
• 5x M.2 Gen 4 x4 64Gbps slots,
• 1x M.2 Gen 3 x4 32Gbps slots,
• 6x SATA 6Gbps ports

USB ports:

• 2x USB 3.2 Gen 2x2 20Gbps (2 Type-C)
• 8x USB 3.2 Gen 2 10Gbps (7 Type-A + 1 Type-C)
• 4x USB 3.2 Gen 1 5Gbps (4 Type-A)
• 4x USB 2.0

LAN:

• 1x Marvell AQC113CS-B1-C 10Gbps LAN,
• 1x Intel 2.5Gbps LAN

WiFi / BT:

• Intel Wi-Fi 6E module, Bluetooth 5.3

Audio:

• 8-Channel (7.1) HD Audio with Audio Boost 5 HD

Multi-GPU:

• AMD MULTI-GPU Support

LED Feature:

• 1x EZ LED Control switch
• 4x EZ Debug LED
• 1x 2-Digit Debug Code LED

Operating System:

• Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info:

• E-ATX
• 304.8mmx310mm
