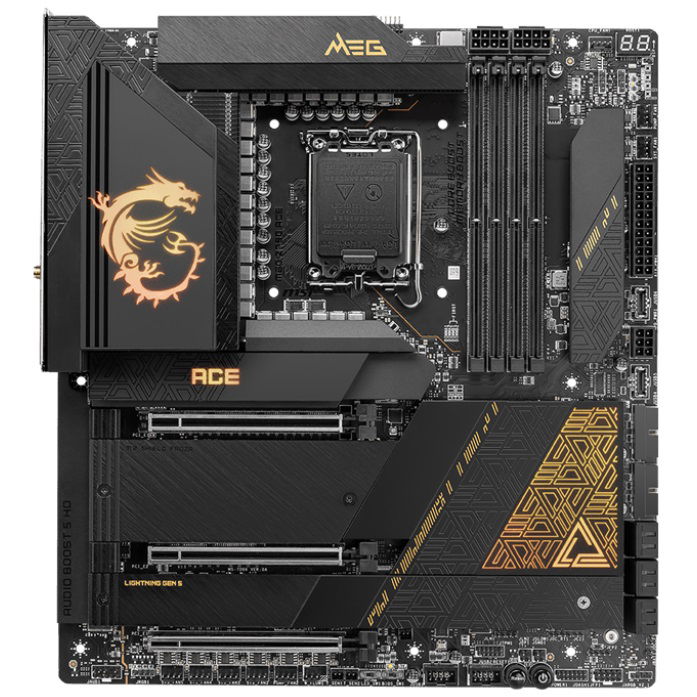

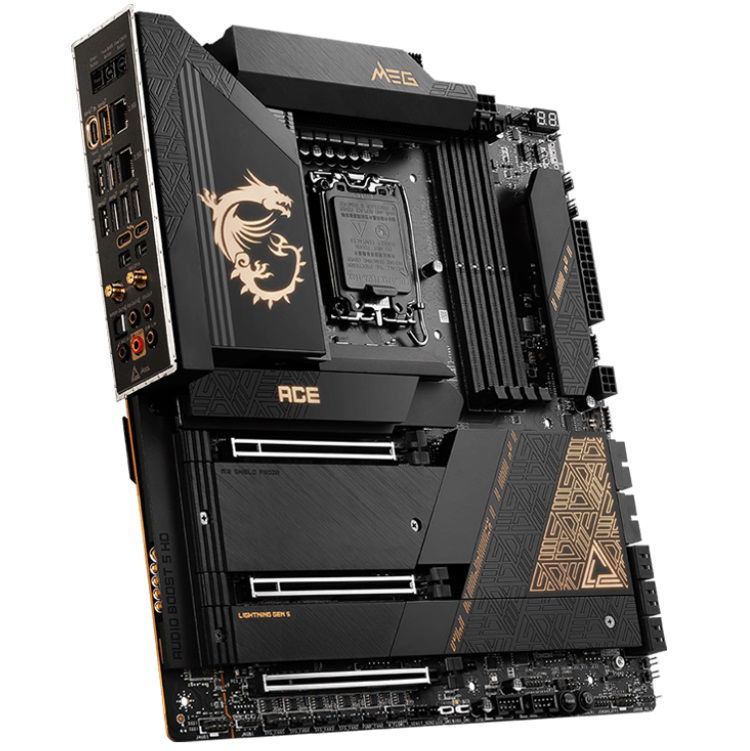

MSI MEG Z790 ACE Intel LGA1700 eATX Gaming Wi-Fi Motherboard

Furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the latest 13th Gen Intel Core processor by combining elite hardware system support and premium durability, the MEG Z790 ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking the processor, memory, and graphics card at the highest level.

Stacked Fin Array Design:
Stacked fin array design enlarges up to 50% heat dissipation, provides the maximum surface of heat dissipation.

Direct Touch Cross Heat-pipe:
The U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.

Double-sided M.2 Shield Frozr:
Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.

Aluminum Backplate:
The aluminum baseplate cool down the MOSFET temperature with dedicated thermal pads.

7W/mK Thermal Pad:
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

Enlarged PCH Heatsink:
MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

Model Name:
• MEG Z790 ACE

CPU Support:
• Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

CPU Socket:
• LGA 1700

Chipset:
• Intel Z790 Chipset

Expansion Slots:
• 2x PCIe 5.0 x16 slots
• 1x PCIe 4.0 x16 slot

Display Interface:
• 1x Type-C Display port – Requires Processor Graphics
• 2x Thunderbolt 4 (Type-C), Input from mini DisplayPort

Thunderbolt 4:
• 2x USB Type-C up to 40G,
• Charging support up to 5V/3A, 15W
• 2x Mini DisplayPort input ports

Memory Support:
• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Storage:
• 1x M.2 Gen 5 x4 128Gbps slot
• 4x M.2 Gen 4 x4 64Gbps slots
• 6x SATA 6Gbps ports

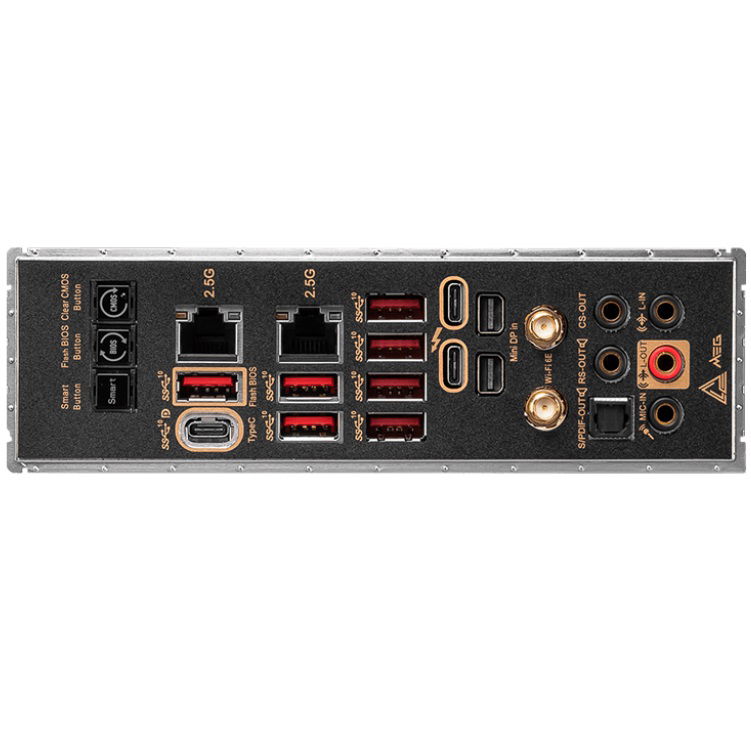

USB ports:
• 2x USB 3.2 Gen 2x2 20Gbps (2 Type-C)
• 8x USB 3.2 Gen 2 10Gbps (7 Type-A + 1 Type-C)
• 4x USB 3.2 Gen 1 5Gbps (4 Type-A)
• 4x USB 2.0

LAN:
• 2x Intel 2.5Gbps LAN

WiFi / BT:
• Intel Wi-Fi 6E, Bluetooth 5.3

Audio:
• 8-Channel (7.1) HD Audio with Audio Boost 5 HD

Multi-GPU:
• AMD MULTI-GPU Support

LED Feature:
• 1x EZ LED Control switch
• 4x EZ Debug LED
• 1x 2-Digit Debug Code LED

Operating System:
• Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info:
• E-ATX
• 277mmx304.8mm
