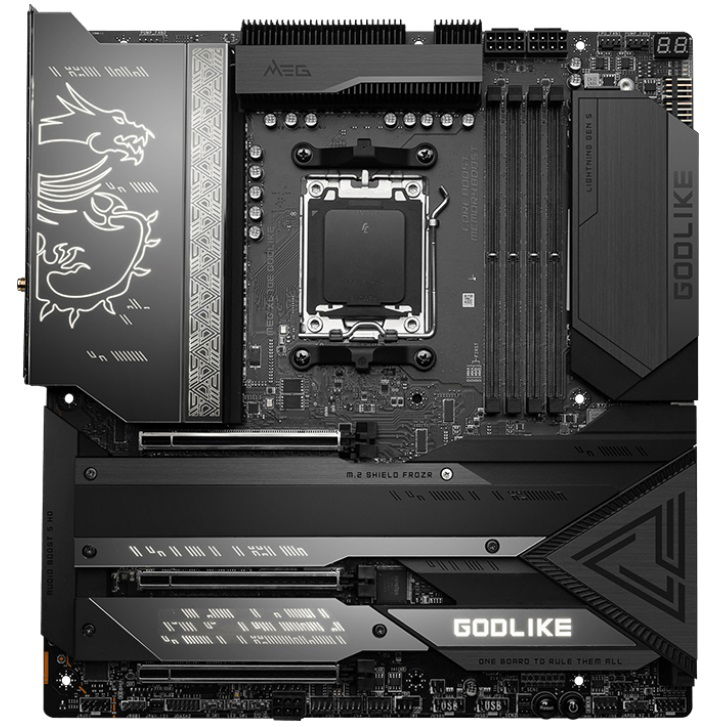

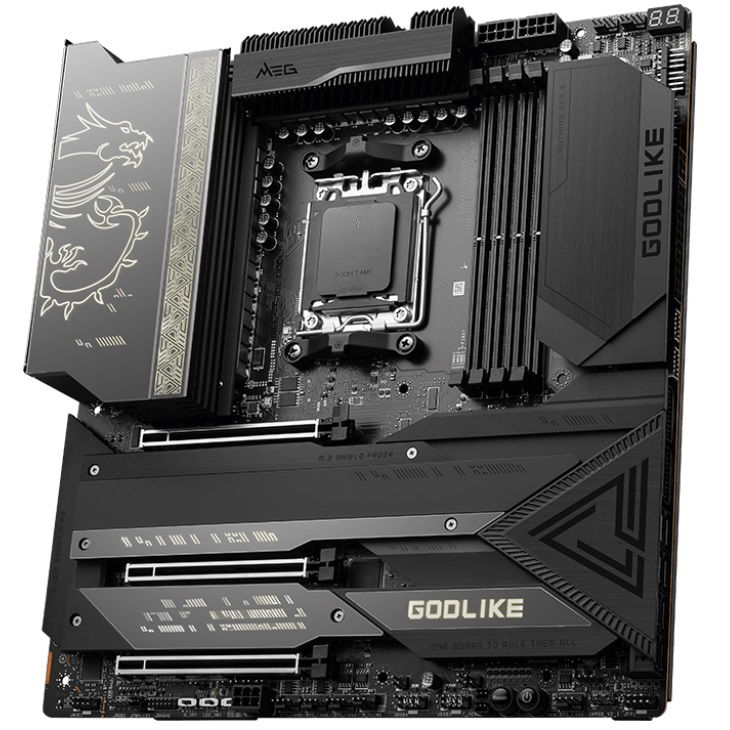

MSI MEG X670E GODLIKE AMD AM5 X670 eATX Gaming Wi-Fi Motherboard

The MEG X670E GODLIKE is designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and Industry's first M-Vision Dashboard, the MEG X670E GODLIKE is developed to unleash the extreme gaming potential of the AMD X670 chipset and is ready to rule the tournament once again.

M-Vision Dashboard:
The touch screen not only displays the status of your gaming rig, but also allows system operation and customization with touch control.

24+2+1 Phases Power Design:
The flagship power solution with DRPS and 105A Smart Power Stage unleashes the maximum CPU performance.

Optimum Thermal Solution:
Wavy Fin Design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, double-sided M.2 Shield Frozr, and Frozr AI software ensure the extreme performance with low temp.

Lightning Gen 5:
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.

Latest DDR5 Memory:
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Quadruple M.2 Connectors:
Onboard 4x M.2 connectors with one Lightning Gen 5 solution for the maximum storage performance.

Chipset:

• AMD X670

CPU:

• Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5

Memory:

• 4 DIMMs, Dual Channel DDR5 8000+MHz (OC)

Slot:

• 3x PCI-E x16 slot

Audio:

• Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
• 7.1-Channel USB High Performance Audio

Storage:

• 1x M.2 Gen5 x4 128Gbps slot
• 3x M.2 Gen4 x4 64Gbps slots
• 8x SATA 6Gbps ports

Multi-GPU:

• AMD MULTI-GPU Support

Raid:

• Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

USB:

• 3x USB 3.2 Gen 2x2 20Gbps (3 Type-C)
• 8x USB 3.2 Gen 2 10Gbps (7 Type-A + 1 Type-C)
• 4x USB 3.2 Gen 1 5Gbps (4 Type-A)
• 4x USB 2.0

LAN:

• Marvell AQC113CS-B1-C 10Gbps LAN
• Intel I225V 2.5Gbps LAN

Internal IO:

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x Power Connector(PCIE_PWR 4pin or 6 pin)
• 1x Front Type-C Quick Charge Connector(PD_PWR1)
• 1x CPU Fan
• 2x Pump Fan
• 6x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Water Flow connector
• 1x Front Audio (JAUD)
• 2x Thermal Sensor connectors(T_SEN)
• 1x Tuning Controller connector(JDASH)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• V-check point
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports
• 1x USB 20Gbps Type C ports

Wireless LAN & Bluetooth:

• AMD Wi-Fi 6E
• Supports Bluetooth 5.3

LED Feature:

• 1x EZ LED Control switch
• 4x EZ Debug LED
• 1x 2-Digit Debug Code LED

Operating System:

• Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info:

• E-ATX
• 288mmx304.8mm
