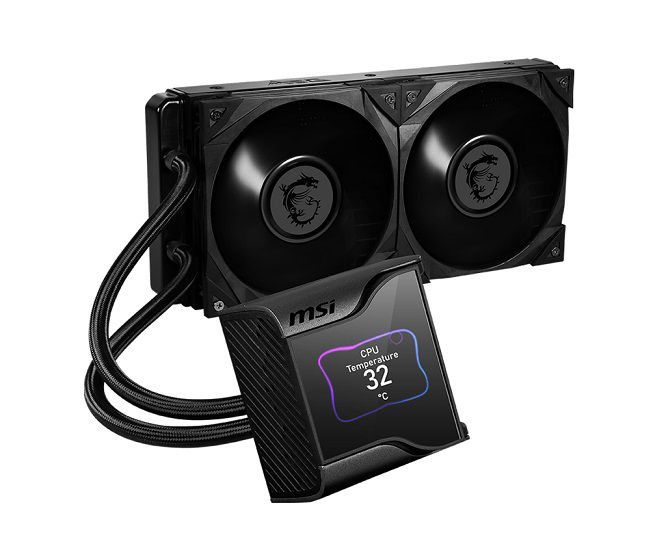

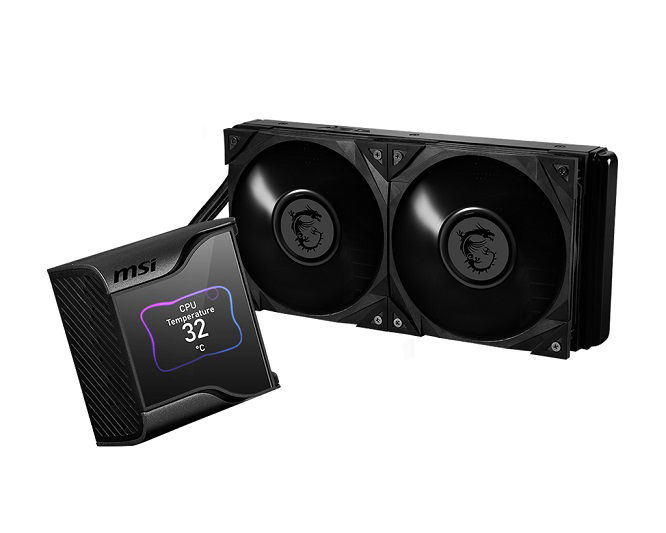

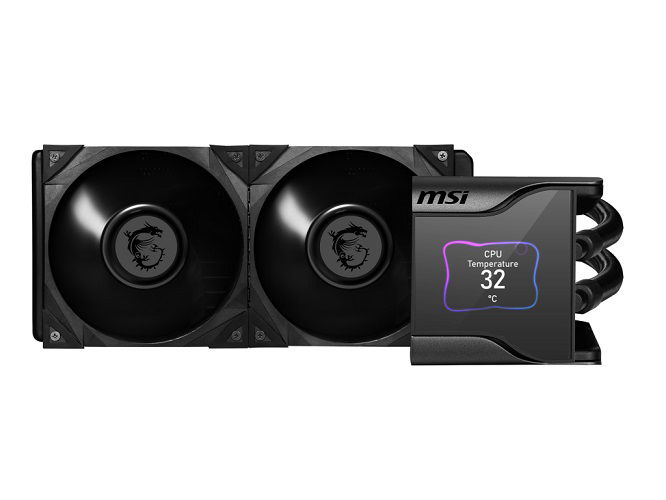

MSI MEG CoreLiquid S280 Liquid Cooler - Dual Fan

The MEG CORELIQUID S Series is here to provide the ultimate silence cooling. It is equipped with MSI's innovative MEG SILENT GALE P14 silent gaming fan and supports 0 rpm fan mode. The 2.4” IPS display can also help you see a conglomerate of hardware information or customizable graphics and videos. The MEG CORELIQUID S Series descends from the top, and you just can’t hear it coming.

Silent Cooling:
MSI’s MEG SILENT GALE P14 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.

Meg Silent Gale P14:
The MEG SILENT GALE P14 is MSI’s innovative silent fan designed to generate the most silent airflow.

Concentrated Cooling Performance:
A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.

Fan 0 RPM:
The MEG SILENT GALE P14 and the water block fan support 0% RPM to ensure zero noise under low temperatures.

Total Control In Your Hands:
Everything ranging from MEG CORELIQUID S Series’ fan speed to the IPS display can be adjusted through the MSI Center.

Evaporation Proof Tubing:
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

• Radiator Size: 280 mm
• Radiator Dimensions (WxDxH): 314.8 x 140 x 27 mm
• Radiator Material: Aluminum
• Water Cooling Tube Material: Black Rubber + Mesh
• Water Cooling Tube Length: 400 mm / 15.75 inches
• Number of Fans: 2
• Fan Dimensions (WxDxH): 140 x 140 x 25 mm
• Fan Speed: 0 ~ 1800 RPM
• Fan Air Flow: 82.27 CFM
• Fan Noise Level: 24.9 dBA
• Fan Static Pressure: 2.2 mm H2O
• Fan Bearing: Hydro-Dynamic Bearing
• Fan Life Expectancy: 50,000 Hours
• Fan Rated Current: 0.5 A (MAX)
• Fan Power Consumption: 6 W (MAX)
• PWM Mode: Yes
• Cable Length (PWM Cable): 350 mm / 13.78 inches
• Fan Connector: 4 pin PWM
• Fan Lighting: NA
• RGB Connector: NA
• Pump Life Expectancy: 50,000 Hours
• Pump Noise Level: 21.2 dBA
• Pump Rated Current: 0.33A
• Pump Power Consumption: 4W
• Pump Speed: 2800 +/-300 RPM (PWM controlled)
• Pump Connector: 4 pin PWM
• Cold Plate Material: Copper
• Block Dimensions (WxDxH): 95 x 95 x 83.53 mm
• Intel Socket Support: LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156, LGA 2066 / 2011-3 / 2011
• AMD Socket Support: AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1, Socket TR4 / sTRX4 / SP3
• Panel Size: 2.4"
• Panel Type: IPS
• Panel Resolution: 320 x 240
• Panel Color Depth: 16 bits
• Panel Brightness: 500 nits
• Interface Connector: USB 2.0 pin header
• Power Connector: SATA
