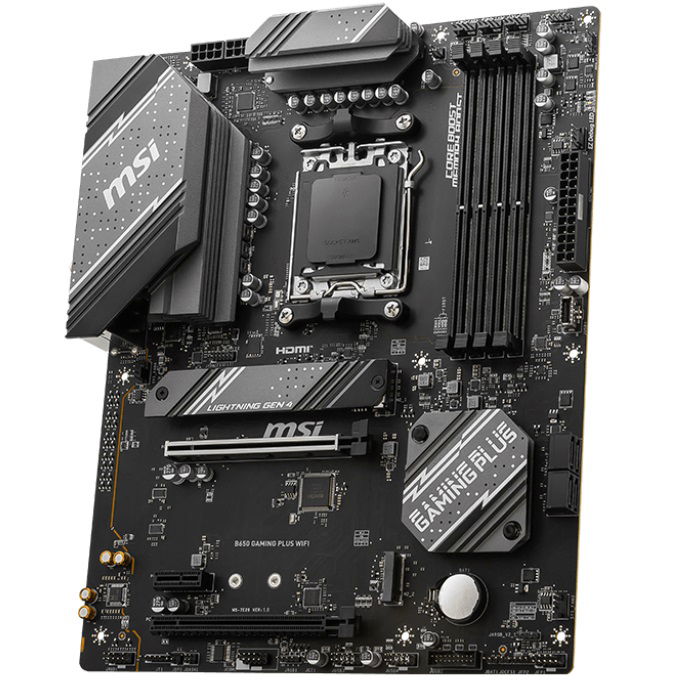

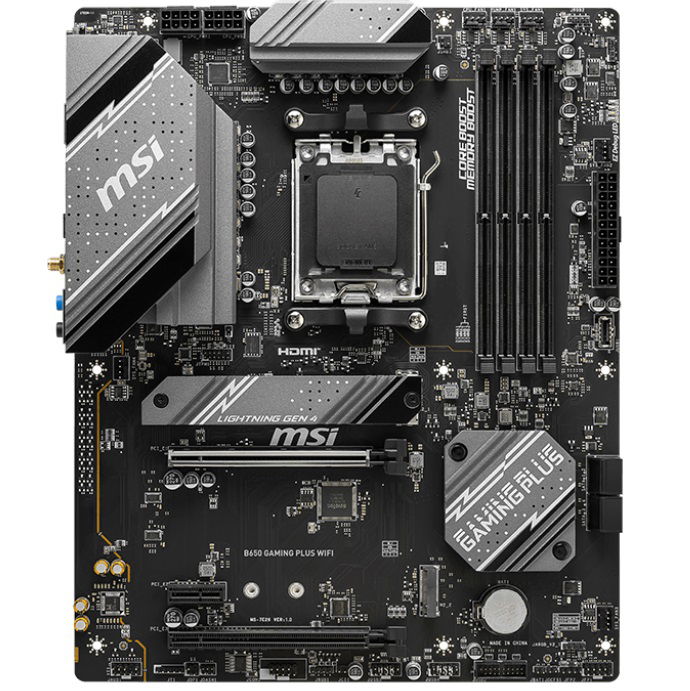

MSI MAG B650 AMD AM5 Micro ATX Gaming Wi-Fi Motherboard

B650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Latest DDR5 Memory:
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Lightning Gen4 Solution:
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

Extended Heatsink Design:
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield FROZR:
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Lightning USB 20G:
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

2.5G Network Solution:
Featuring premium 2.5G LAN to deliver better network experience.

Chipset:
• AMD B650

CPU:
• Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Memory:
• 4 DIMMs, Dual Channel DDR5-7200+MHz (OC)

Onboard Graphics:
• 1x HDMI
• 1x DisplayPort

Slot:
• 2x PCI-E x16 slot
• 1x PCI-E x1 slot

Audio:
• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Storage:
• 2x M.2 Gen 4 x4 64Gbps slots
• 4x SATA 6Gbps ports

Multi-GPU:
• AMD MULTI-GPU Support

Raid:
• Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

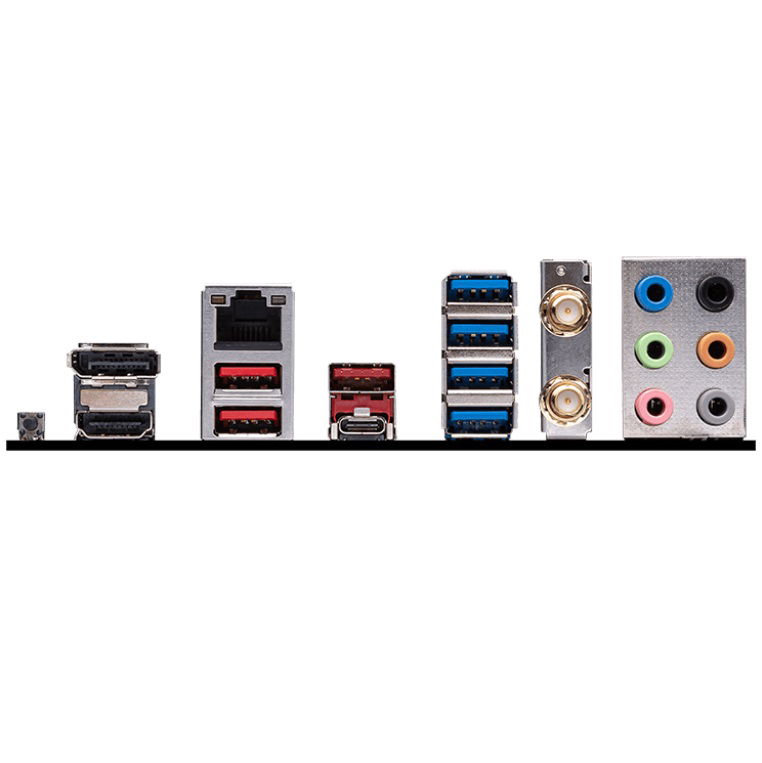

USB:
• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 3x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)

LAN:
• Realtek 8125BG 2.5G LAN

Internal IO:
• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 4x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports
• 1x USB 20Gbps Type C (Rear)

Wireless LAN & Bluetooth:
• AMD Wi-Fi 6E
• Supports Bluetooth 5.3

LED Feature:
• 4x EZ Debug LED

Operating System:
• Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info:
• ATX
• 243.84mmx304.8mm
