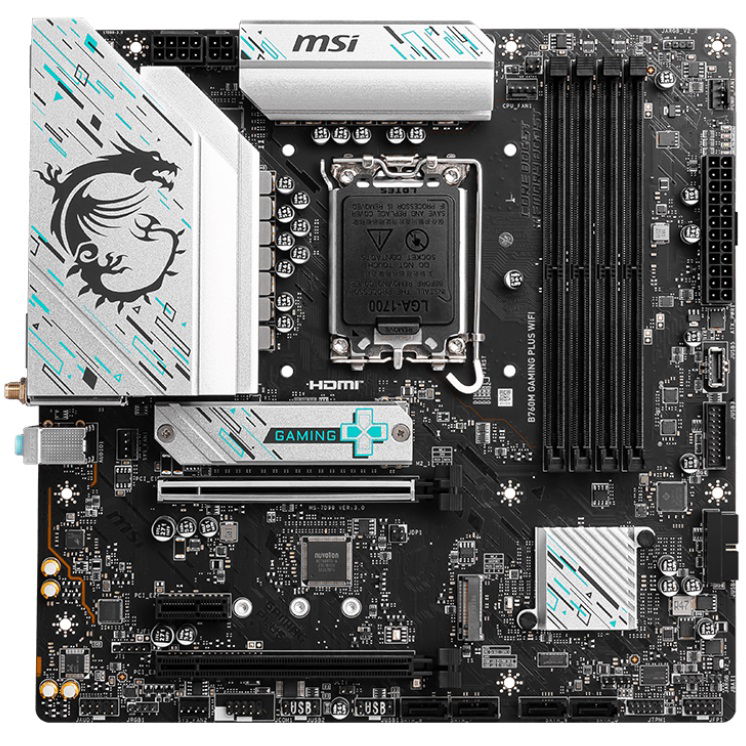

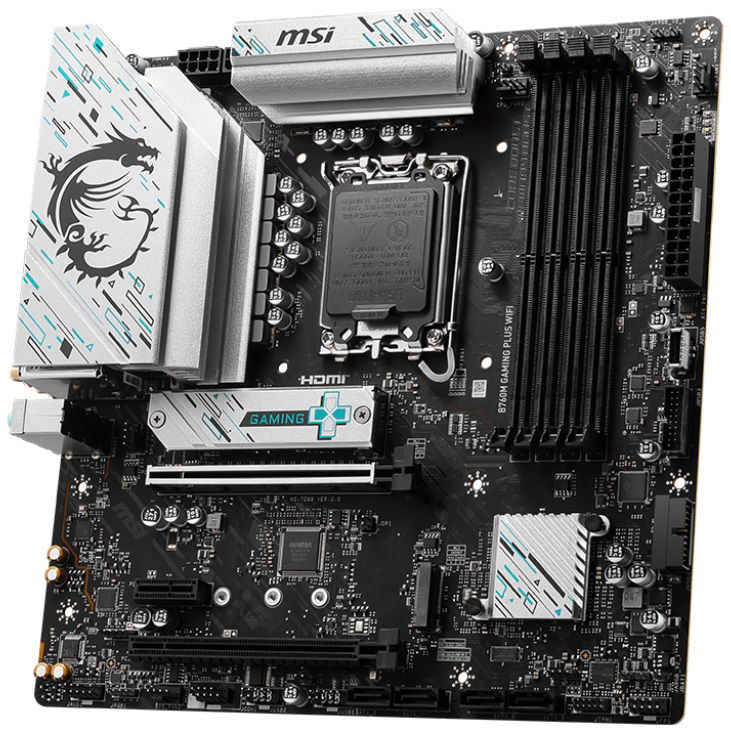

MSI B760M Intel LGA1700 Micro ATX Gaming Plus Wi-Fi

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

• Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• High Quality PCB: 6-layer PCB made by 2oz thickened copper
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Chipset:

• INTEL B760

CPU:

• Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

CPU Socket:

• LGA 1700

Memory:

• 4x DDR5, Maximum Memory Capacity 256GB

Onboard Graphics:

• 2x HDMI
• 2x DisplayPort

Slot:

• 2x PCI-E x16 slot
• 1x PCI-E x1 slot

Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Storage:

• 2x M.2
• 4x SATA 6G

Raid:

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

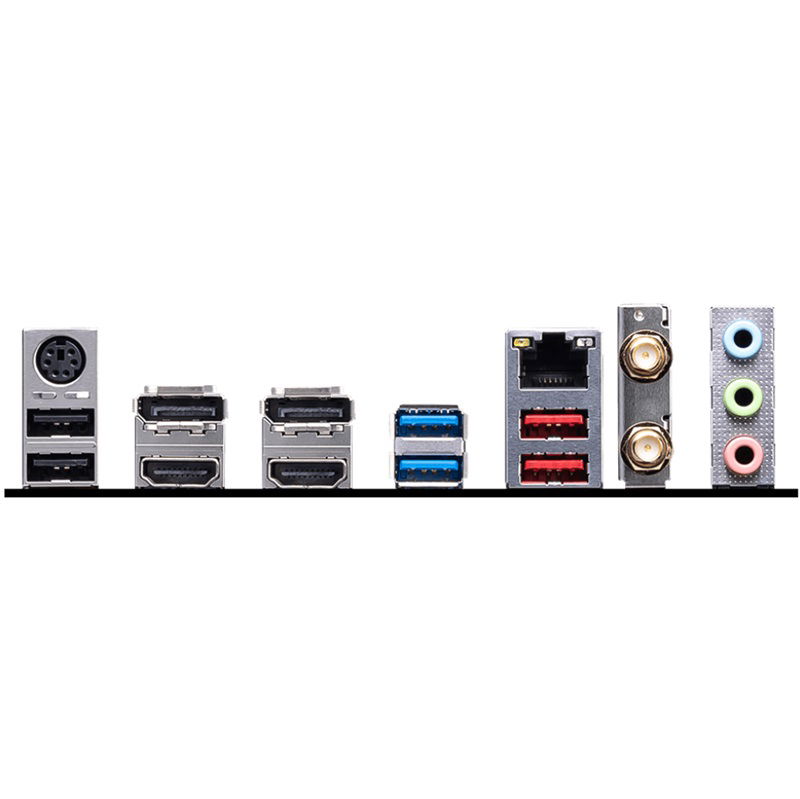

USB:

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 4x USB 5Gbps Type A (Front)
• 1x USB 5Gbps Type C (Front)
• 2x USB 10Gbps Type A (Rear)

LAN:

• Realtek RTL8125BG 2.5G LAN

Internal IO:

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• 1x USB 5Gbps Type C ports

Wireless LAN & Bluetooth:

• Intel Wi-Fi 6E
• Supports Bluetooth 5.3, FIPS, FISMA

LED Feature:

• 4x EZ Debug LED

Operating System:

• Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info:

• mATX
• 243.84mm x 243.84mm
