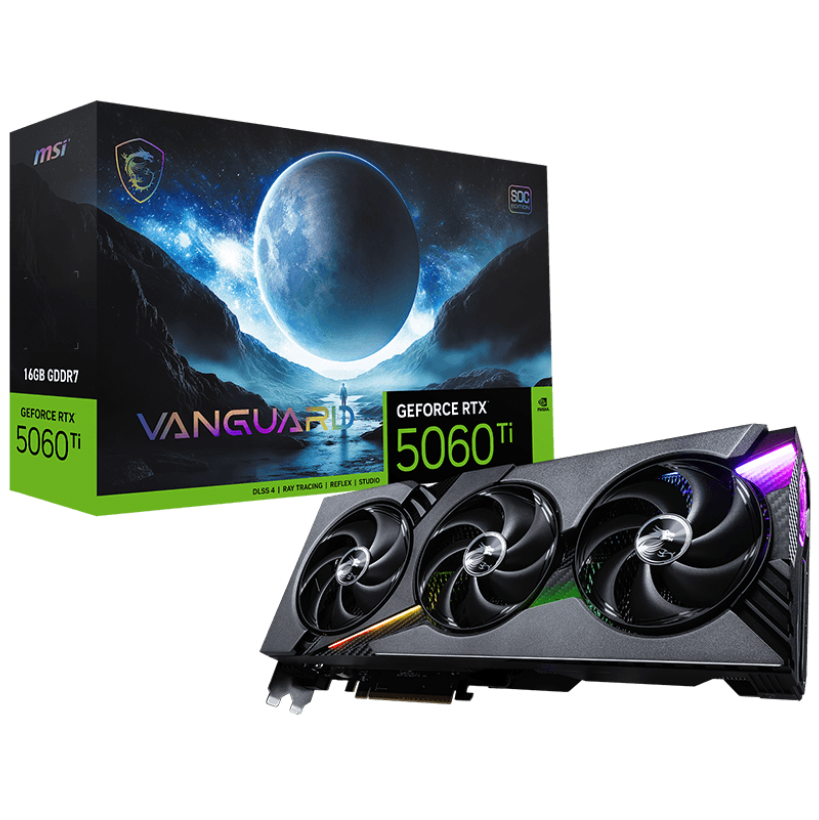

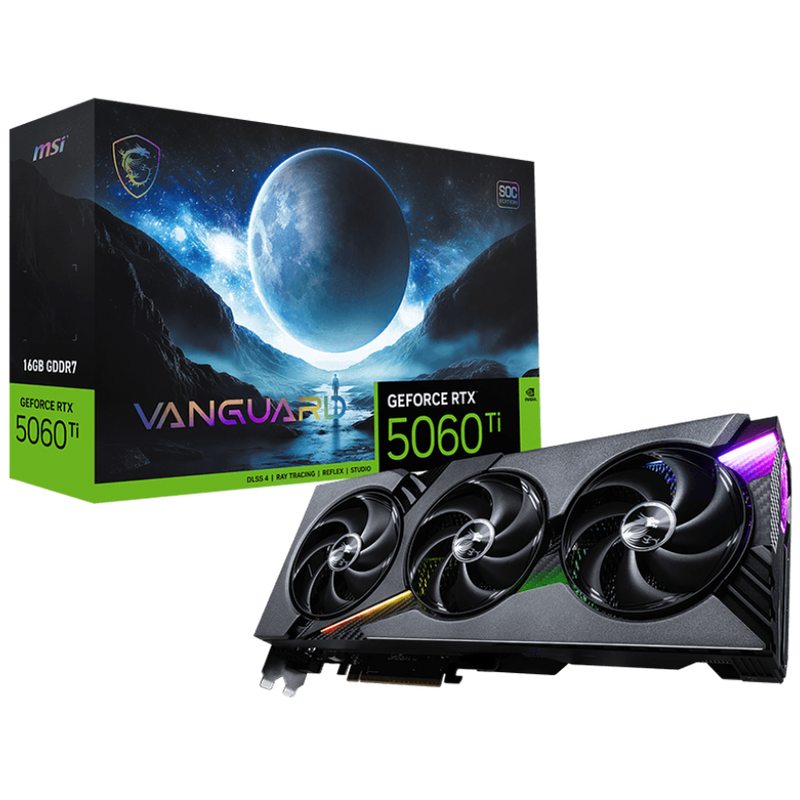

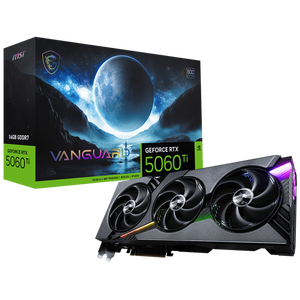

MSI GeForce RTX 5060 TI 16G VANGUARD SOC 16GB GDDR7 NVIDIA Graphics Card - DisplayPort, HDMI

MSI Vanguard series graphics card embodies the spirit of exploration. Premium gaming craftsmanship is expressed with aerodynamic edges, fractured lines, and futuristic RGB lights that empower players to push the limits of adventure while exploring uncharted worlds.

TRI FROZR 4:
Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.

STORMFORCE FAN:
Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.

Nickel-plated Copper Baseplate:
Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.

Core Pipes:
Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

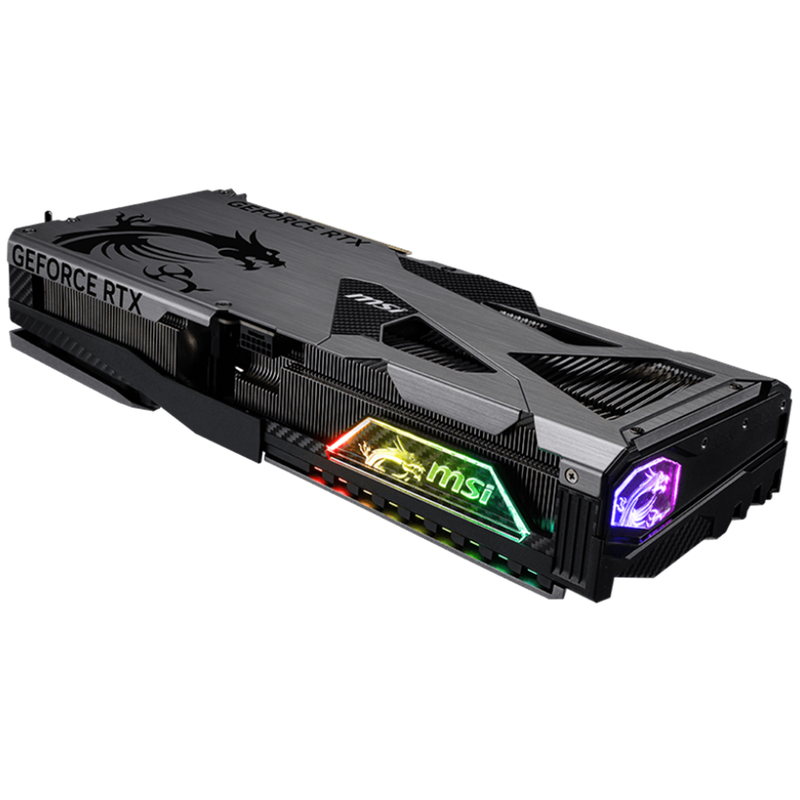

Metal Backplate:
A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.

Wave Curved 4.0:
Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.

Air Antegrade Fin 2.0:
The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

MSI Center:
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Afterburner:
Take full control with the most recognized and widely used graphics card overclocking software in the world.

• Model Name: G506T-16VGS
• Graphics Processing Unit: NVIDIA GeForce RTX 5060 Ti
• Interface: PCI Express Gen 5 x16 (uses x8)
• Core Clocks: Extreme Performance: 2707 MHz (MSI Center); Boost: 2692 MHz
• CUDA CORES: 4608 Units
• Memory Speed: 28 Gbps
• Memory: 16GB GDDR7
• Memory Bus: 128-bit

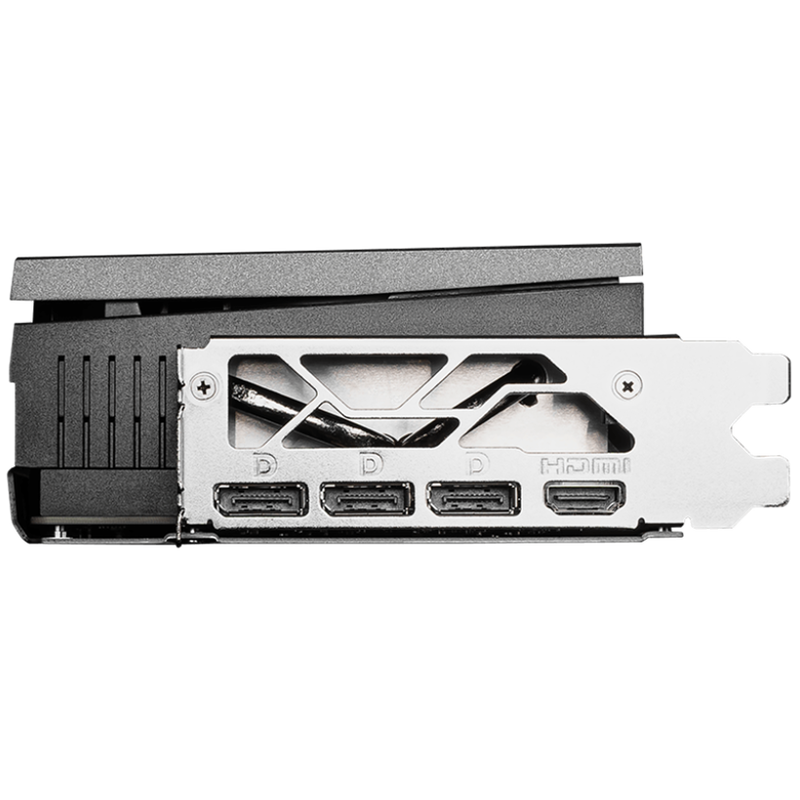

• Output: DisplayPort x 3 (v2.1b), HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
• HDCP Support: Yes
• Power consumption: 180W
• Power connectors: 16-pin x 1 (ATX 3.1 PSU recommended)
• Recommended PSU: 600 W
• DirectX Version Support: 12 Ultimate
• OpenGL Version Support: 4.6
• Maximum Displays: 4
• G-SYNC technology: Yes
• Digital Maximum Resolution: 7680 x 4320
• Card Dimension: 337 x 140 x 61 mm
• Weight (Card / Package): 1278 g / 2059 g
