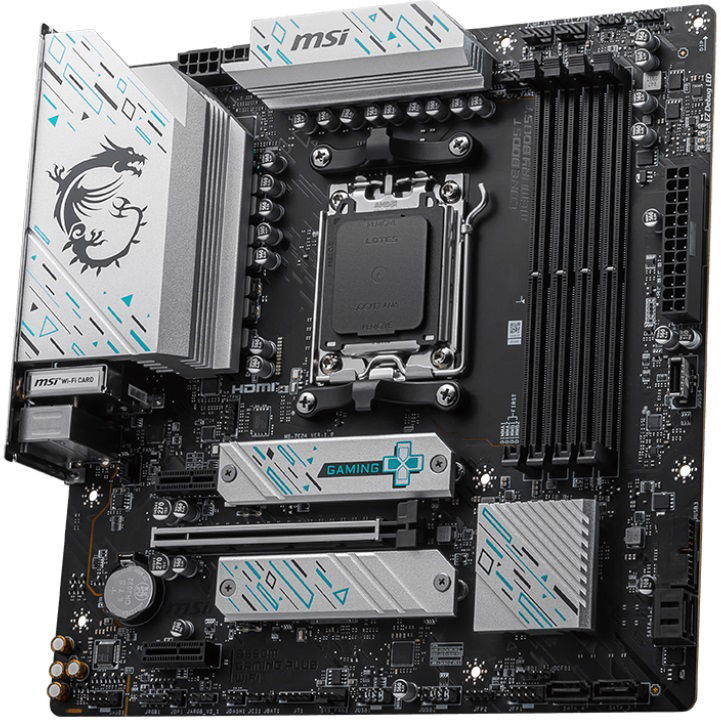

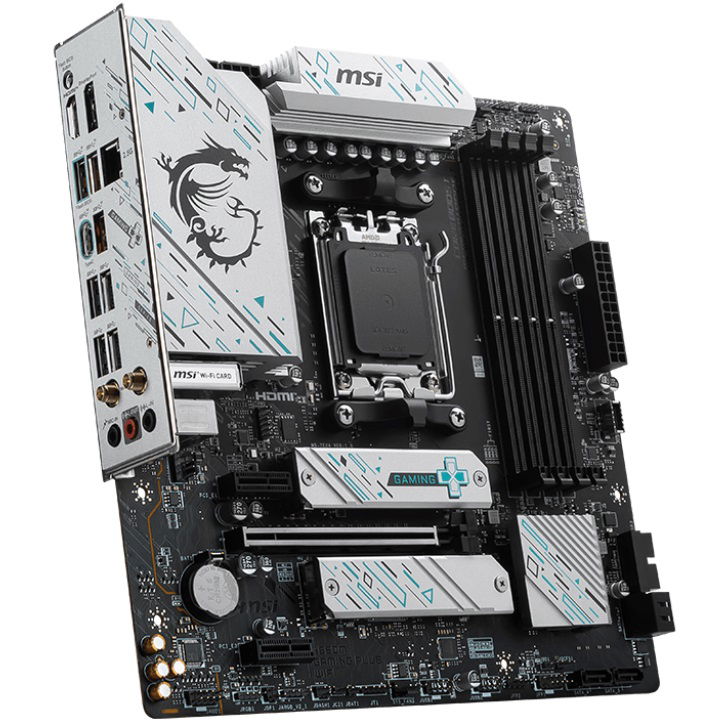

MSI B650M AMD AM5 mATX Gaming Plus Wi-Fi Motherboard

B650M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7200+(OC) MHz
• Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper

Chipset:
• AMD B650

CPU Socket:
• AM5

CPU:
• Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Memory:
• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Onboard Graphics:
• 1x HDMI
• 1x DisplayPort

Slot:
• 1x PCI-E x16 slot
• 2x PCI-E x1 slot

Audio:
• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Storage:
• 2x M.2
• 4x SATA 6G

RAID:
• Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 for M.2 NVMe storage devices

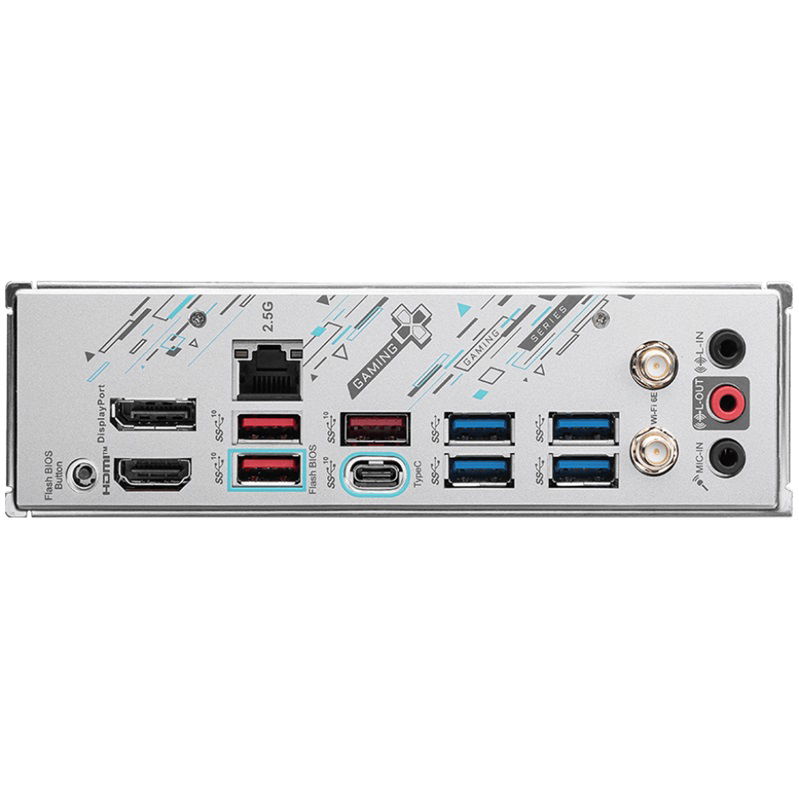

USB:
• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 3x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)
• 1x USB 10Gbps Type C (Front)

LAN:
• Realtek RTL8125BG 2.5Gbps LAN

Internal IO:
• 1x Power Connector (ATX_PWR)
• 2x Power Connector (CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 3x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Tuning Controller connector (JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector (JRGB)
• 1x TPM pin header (Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

Wireless LAN & Bluetooth:
• Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot

LED Feature:
• 4x EZ Debug LED

Operating System:
• Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info:
• mATX
• 243.84mm x 243.84mm
