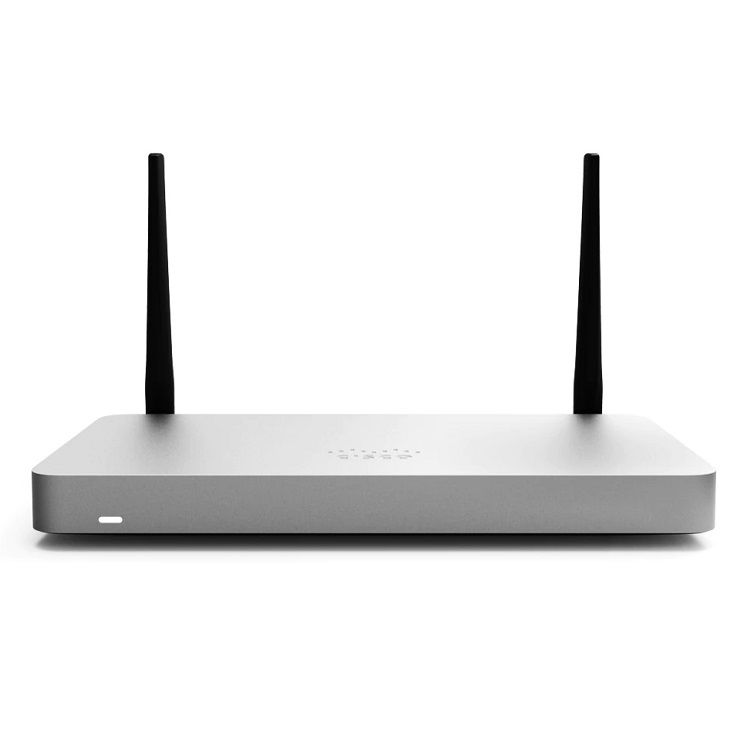

Cisco Meraki MX67C Small Branch Cloud Managed Wired Firewall Security Appliance with Cat6 LTE Cellular Modem

The Cisco Meraki MX are multifunctional security & SD-WAN enterprise appliances with a wide set of capabilities to address multiple use cases–from an all-in-one device. Organizations of all sizes and across all industries rely on the MX to deliver secure connectivity to hub locations or multi-cloud environments, as well as application quality of experience (QoE), through advanced analytics with machine learning.

Hardware:

• Stateful firewall throughput: 450 Mbps
• Recommended maximum clients: 50
• Small form factor

Cloud-based centralized management:

• Managed centrally over the web
• Classifies applications, users and devices
• Zero-touch, self-provisioning deployments

Networking and security:

• Stateful firewall
• Auto VPN self-configuring site-to-site VPN
• Active Directory integration
• Identity-based policies
• Client VPN (IPsec)
• 3G / 4G failover via CAT 6 LTE or USB modem

Traffic shaping and application management:

• Layer 7 application visibility and traffic shaping
• Application prioritization

Advanced security services:

• Content filtering
• Google SafeSearch and YouTube for Schools
• Intrusion detection & prevention (IDS/IPS)
• Advanced Malware Protection (AMP)
• Cisco Threat Grid

**_Network and Security Services

• Stateful firewall, 1:1 NAT, DHCP, DMZ, static routing
• Identity-based policies
• Auto VPN self-configuring site-to-site VPN
• Client VPN (IPsec)
• User and device quarantine
• VLAN support and DHCP services

**_Advanced Security Services

• Content filtering (Webroot BrightCloud CIPA-compliant URL database)
• Web search filtering (including Google and Bing SafeSearch)
• YouTube for Schools
• Intrusion prevention (SourceFire Snort based)
• Cisco Advanced Malware Protection (AMP)
• Requires Advanced Security License

**_WAN Performance Management

• WAN link aggregation
• Application level (Layer 7) traffic analysis and shaping
• Automatic Layer 3 failover (including VPN connections)
• WAN uplink selection based on traffic type

**_Monitoring and Management

• Web based management and configuration
• Throughput, connectivity monitoring and alerts
• Network asset discovery and user identification
• Built-in network-wide reporting, monitoring and alerts
• Centralized policy management
• Real-time diagnostic and troubleshooting over the web
• Automatic firmware upgrades and security patches
• Searchable network-wide event logs

**_Interfaces

• WAN: 1 × 1 GbE
• LAN: 4 × 1 GbE (1 optionally available for WAN connectivity)
• 1 x CAT 6 LTE Cellular Modem
• USB: 1 × USB 2.0 for 3G/4G failover (supported devices)

**_Performance

• Stateful firewall throughput: 450 Mbps
• VPN throughput: 200 Mbps
• Recommended for small branches (up to 50 users)
• CAT 6 LTE Cellular Modem: 300 Mbps

**_Power

• Single 18W power supply

**_Environment

• Operating temperature: 0°C to 45°C
• Humidity: 5 to 95% non-condensing

Note: Meraki advanced security license required.
