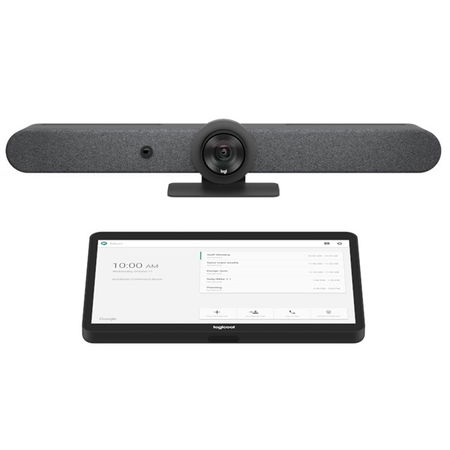

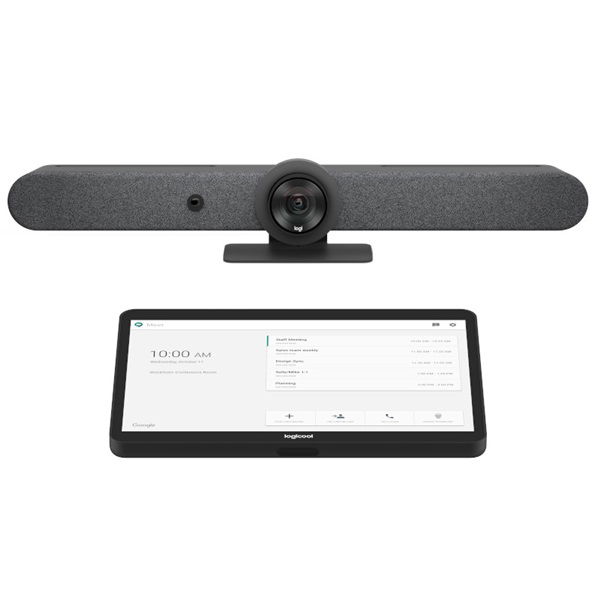

Logitech Rally Bar with Tap Screen Conference System - Black

Rally Bar Video Conferencing System bundled with TAP Screen with Cat5e connection.

See what you’ve been missing:
With a dual-camera system and RightSight 2 auto-framing technology, Rally Bar welcomes remote participants to the conversation. Choose Grid View to eliminate empty space and frame each person in their own stream, Speaker View to highlight the active speaker, or Group View to capture everyone in the room.

Looks brilliant:
An innovative dual-camera system with optical zoom and an AI Viewfinder delivers fluid, cinematic video in medium and large rooms.

Sounds awesome:
Rally Bar’s advanced audio engineering delivers powerful, room-filling sound and makes sure every voice is clearly heard.

Deploy room solutions with ease:
Transform your space into a Google Meet meeting place or a Microsoft Teams Rooms on Windows with Logitech Tap. Deliver one-touch join, calendar integration, easy content-sharing, and a consistent experience across all rooms.

Just the right presence:
With a spacious 10.1” display, low profile, and motion sensor for always-on readiness, Tap has a sleek and unobtrusive presence in the room.

Simple and secure cabling:
Route cables out the back or through the bottom. Keep connections tight with built-in strain relief and retention mechanisms.

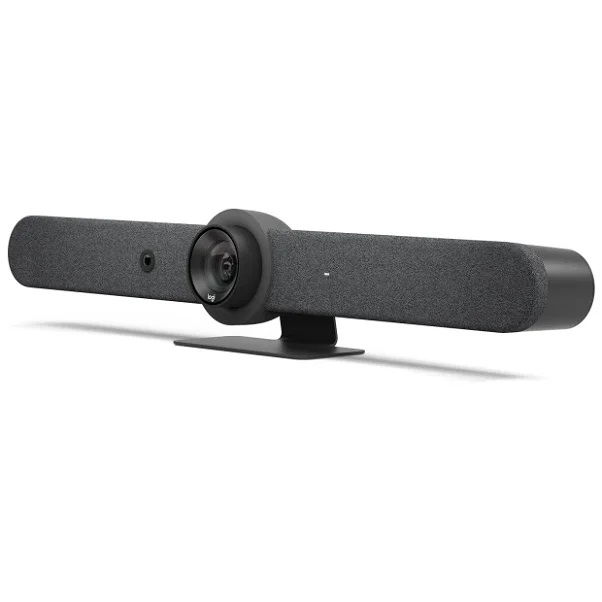

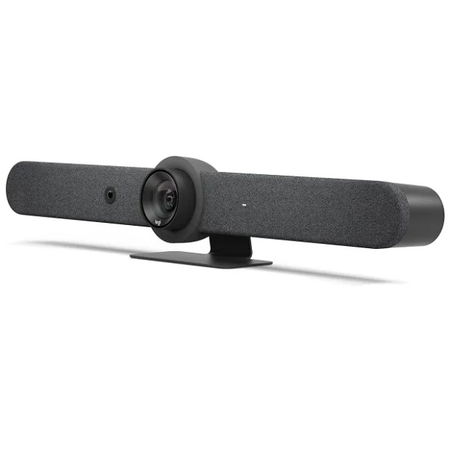

Logitech Rally Bar:

• General Specifications: Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform; Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference; Device Management: Logitech Sync; Displays Supported: 2 (up to 1080p); Display Resolution: Up to 1080p; Network Protocol Support: IPv4, IPv6; Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
• Camera: Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps; Pan: Motorized ±25°; Tilt: Motorized ±15°; Zoom: 15X HD zoom (5X optical and 3X digital); Diagonal Field of View: 90°; Horizontal Field of View: 82.1°; Vertical Field of View: 52.2°; Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
• Speakers: Drivers: 2x 70 mm; Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter; Rated Power: 8W
  THD: 1kHz < 2% at 1w; speaker sampling rate: 48 khz; impedance: 4 ohms
• microphones: frequency response: 90hz – 16khz; sensitivity: >-36dBFS +/-1 dB @ 1Pa; Microphone data rate output: 48KHz; Pickup Range: 7 m; Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams; Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector); Noise suppression: AI based de-noising algorithm; Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
• Dimensions (H x W x D): 164 x 910 x 130.5 mm
• Weight: 7.08kg

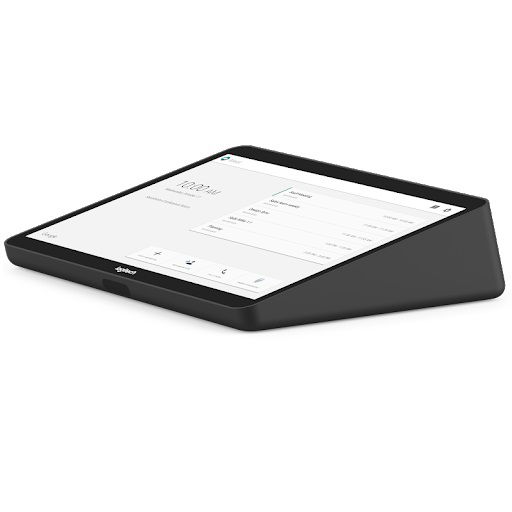

Logitech Tap:

• Touch Screen: 10.1” diagonal screen with 14° display angle Oleophobic and anti-glare coating 1280 x 800 resolution
• General Specs: Internal cable retention and strain relief system, Integrated ultrasonic speaker, Integrated PIR Motion Sensor, 100mm x 100mm VESA FDMI (Flat Display Mounting Interface), Kensington Lock slots (2)
• Ports & Interfaces: USB 2.0/3.0/3.1 Type C (to meeting room host system), USB 2.0 Type A (for accessory connection), HDMI input (for 1080p video + audio content sharing), 3.5 mm 4 pole Headset Jack
• Dimensions: 58 x 244 x 179 mm
• Weight: 1.25 kg
