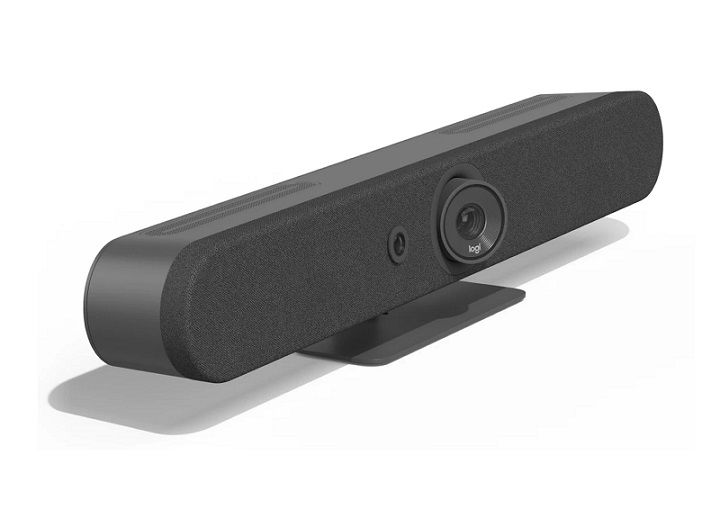

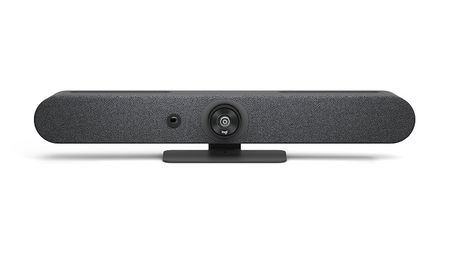

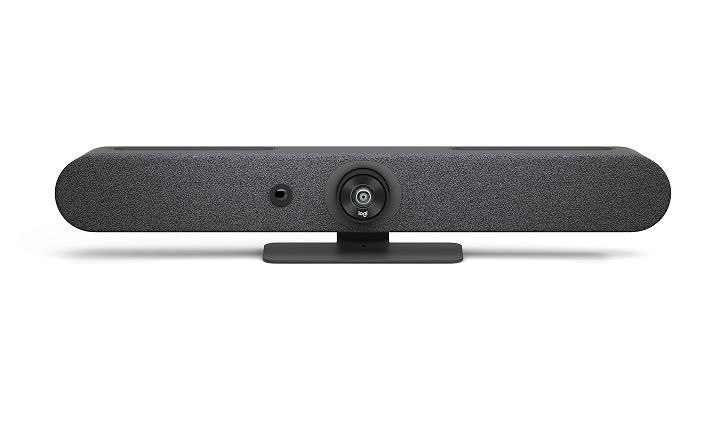

Logitech Rally Bar Mini Video Conferencing - Graphite

Simplicity meets versatility with Rally Bar Mini, Logitech’s most advanced all-in-one video bar for small meeting rooms and huddle spaces. With studio quality audio and video, AI driven performance, and flexible deployment options, Rally Bar Mini sets a new standard for small room collaboration.

Simple to Set up:

• USB Plug and Play - Connect via USB to virtually any PC or Mac with no additional software needed.
• Appliance Mode - Run supported video conferencing applications – such as Zoom Rooms, Microsoft Teams Rooms, and others – directly on the device with no computer or laptop required.
• Cable Management - Ensure clean, confident installs with secure cable retention and minimal cabling.
• Mounting Options - Take advantage of multiple mounting options to deploy Rally Bar quickly and easily across all your midsize rooms.

Simple to Use. RightSense Technologies:

• RightSight - Detects meeting participants, automatically moves the lens and adjusts the zoom so no one is left out of the picture
• RightLight - Intelligently adjusts video settings in all light conditions so everyone always looks their best
• RightSound - AI-driven voice leveling and unwanted noise suppression deliver outstanding clarity
• One-Touch Join - Optionally deploy with Tap to quickly and easily initiate meetings across Zoom, Microsoft Teams, and other cloud services

Simple to Manage:

• Logitech Sync - Single platform to monitor room health and keep devices up to date, plus insights on room occupancy
• Deploy Updates at Scale - Easily propagate upgrades and bug fixes to Rally Bar and your other supported Logitech devices
• Forward-Looking Architecture - Sync API is a robust foundation for new insights and integrations
• Partner Dashboard Support - Fully integrated with partner solutions like Microsoft Teams, Zoom, and others for a simplified device management experience

Audio:

• Room-filling Sound - Large, ultra low distortion speakers with RightSound convey every word with outstanding clarity
• Adaptive Beamforming Mic Array - Beamforming mics pick up voices at every seat and focus on the active talker while suppressing ambient noise
• Expansion Ready - Add up to three Rally mic pods for even greater coverage in larger settings

Video:

• Ultra-HD Video - Brilliantly sharp video, outstanding color, and exceptional optical accuracy at resolutions up to 4K
• Expansive Room Coverage - Motorized lens covers rooms 130° across by 80° high, with lossless image quality up to 5X optical zoom
• Cinema Quality - Logitech RightLight technology captures natural-looking skin tones, even in dim or backlit conditions

AI Viewfinder:

• Framed to Perfection - A second built-in camera lens has the ability to detect meeting participants, amplifying RightSight autoframing
• See Everyone Clearly - All meeting participants, even late arrivals, are automatically seen and included
• Move About Freely - AI Viewfinder uses scene awareness to keep the camera on the action

General Specifications:

• Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
• Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
• Device Management: Logitech Sync
• Displays Supported: 2
• Display Resolution: 1080p
• Network Protocol Support: IPv4, IPv6
• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera:

• Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
• Pan: Motorized ±25°
• Tilt: Motorized ±15°
• Zoom: 4X HD digital zoom
• Diagonal Field of View: 120°
• Horizontal Field of View: 113°
• Vertical Field of View: 80.7°
• Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical

Woofer Speaker:

• Drivers: 70 mm
• Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
• Rated Power: 8W
• THD: 1kHz < 2% at 1w
• speaker sampling rate: 48 khz
• impedance: 4 ohms

midrange speakers:

• drivers: 2 x 43 mm
• sensitivity: 84 db spl @ 1w/1m
• rated power: 4w
• thd: 1khz < 2% at 1w
• speaker sampling rate: 48khz
• impedance: 4 ohms

microphones:

• frequency response: 90hz – 16khz
• sensitivity: > -36dBFS +/-1 dB @ 1Pa
• Microphone Data Rate Output: 48KHz
• Pickup Range: 4.5 m
• Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
• Audio Processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
• Noise Suppression: AI based de-noising algorithm
• Add-on Mics: Supports up to 2 additional Rally Mic Pods

RightSense Technologies:

• RightLight: Renders natural skin tones for each participant
• RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants
• RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

Interface:

• HDMI Out: 2
• HDMI In: 1
• USB: 3x Type A, 1x Type C
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac
• External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
• Remote Control: Bluetooth Low Energy

Power & Cables:

• Power Supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 4.74A
• Power Supply Dimensions: 127 mm x 51 mm x 30 mm
• DC Cable: 1.5 m
• AC Cable: 1 m
• HDMI 1.4 Cable: 2 m
• USB A to USB C 3.0 Cable: 2.2 m

Environmental:

• Operating Temperature: 0 to 40°C
• Storage Temperature: -40 to 70 °C
• Humidity: 10 to 95%
• BTU/hr: 57 idle, 64 in meeting

Dimensions:

• Dimensions (W x H x D): 719 mm x 91.4 mm x 101 mm
• Lens Depth: 18.5 mm
• Weight: 4.03 kg

• Internet Connection: Wired or wireless
• USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
