LG 98UM5K-B 98 Inch 3840 x 2160 (UHD) 500nit ADS Large Screen webOS Signage Display

Super High Resolution. Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

Adequate Brightness Level:
The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.

High-Performance with webOS:
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

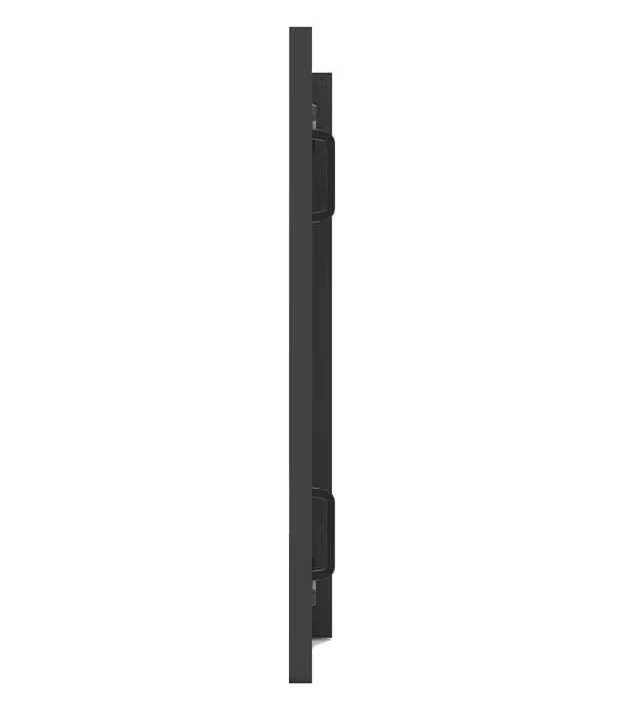

Slim Design:
Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

Compatible with AV Control System:
The UM5K series has supported Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

SuperSign Solutions:
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Panel:

• Screen Size (Inch): 98"
• Panel Technology: ADS
• Back Light Type: Direct
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160 (UHD)
• Refresh Rate: 60Hz
• Brightness (Typ.): 500nit (Typ.)
• Contrast Ratio: 1,200:1
• Dynamic CR: 200,000:1
• Color gamut: DCI-P3 88%↑
• Viewing Angle (H x V): 178x178
• Color Depth: 8bit + FRC, 1.07Billion colors
• Response Time: 8ms (G to G)
• Surface Treatment (Haze): 25%
• Life time: 30,000 Hrs (Typ.)
• Operation Hours (Hours/Day): 16/7
• Portrait / Landscape: Yes / Yes

Connectivity:

• HDMI IN: O(3) HDMI1/HDMI2 : HDCP 2.2/1.4 HDMI3 : HDCP 1.4
• DP IN: Yes (1), HDCP2.2/1.3
• DVI-D IN: Yes (1), HDCP1.4
• Audio IN: Yes (1)
• RS232C IN: Yes (1), 4pin Phone-jack
• RJ45(LAN) IN: Yes (1)
• IR IN: Yes (1)
• USB IN: USB2.0 Type A(1)
• HDMI Out: Yes (1)
• Audio Out: Yes (1)
• RS232C Out: Yes (1), 4pin Phone-jack
• Daisy Chain: Yes (Input HDMI, DP, DVI / Output HDMI)

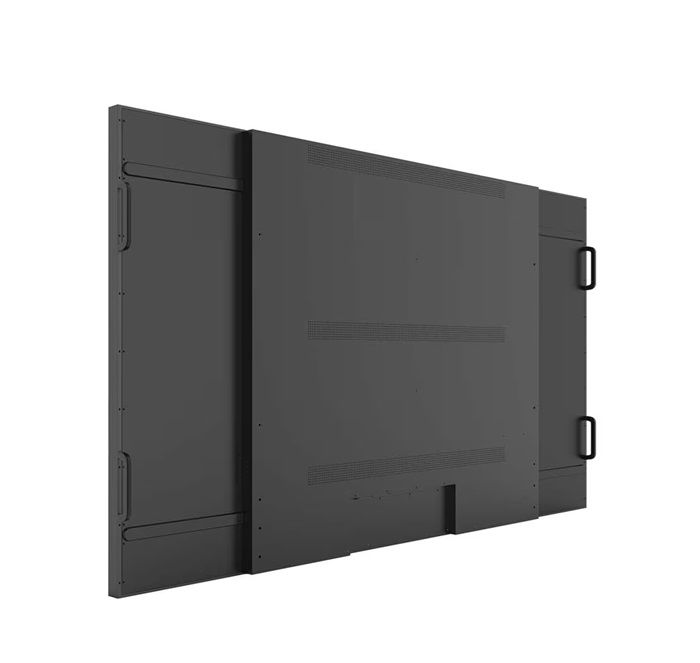

Mechanical:

• Bezel Color: Black
• Bezel Width: Even bezel: 17mm
• Weight (Head): 78Kg
• Monitor Dimensions (W x H x D): 2198 x 1253 x 79.5mm
• Handle: Yes
• VESA Standard Mount Interface: 800 x 400

Environment Conditions:

• Operation Temperature: 0 °C to 40 °C
• Operation Humidity: 10 % to 80 %

Power:

• Power Supply: AC 100-240V~, 50/60Hz
• Power Type: Built-In Power
• Power Consumption (Typ.): 430W
• Power Consumption (Max.): 560W
• Power Consumption (British Thermal Unit): 1467 BTU/Hr(Typ.), 1911 BTU/Hr(Max)
• Power Consumption (Smart Energy Saving, ~70%): 301W
• Power Consumption (DPM): 0.5W
• Power Consumption (Power Off): 0.5W
