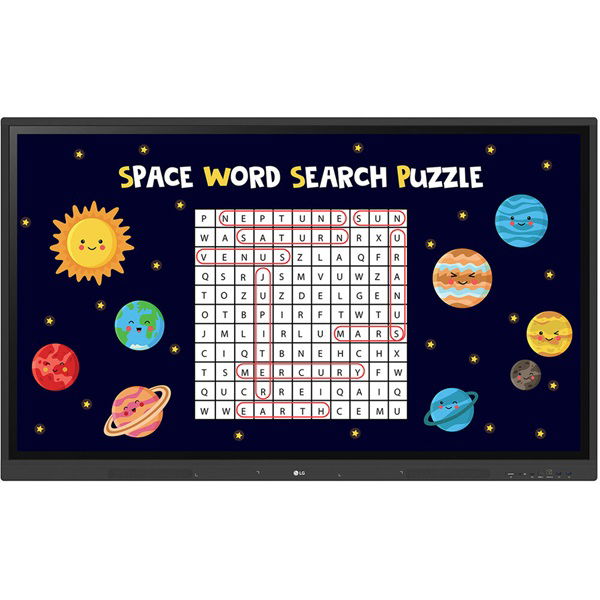

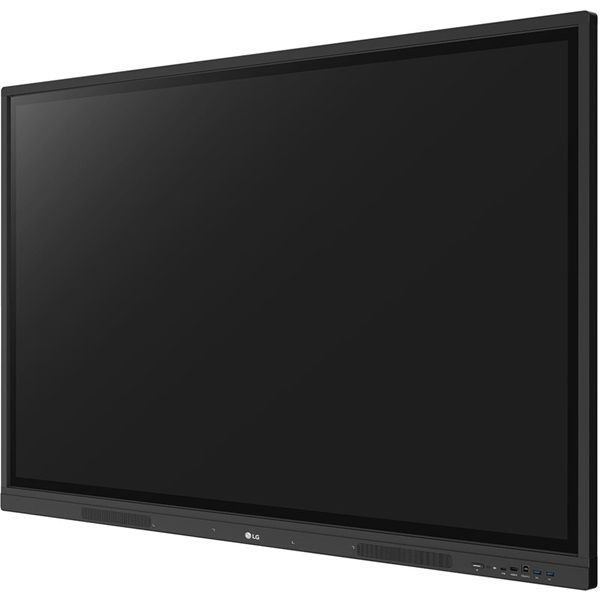

LG 86TR3DK-B 86 Inch 3840 x 2160 (4K UHD) 8ms 390nit 16/7 IPS webOS Interactive Display

Various Teaching Templates. LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.

Multi-touch:
LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

Easy to Save / Import / Export:
LG CreateBoard includes simple import and export functionality. Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).

Wireless ScreenShare:
LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

LG ConnectedCare DMS:
LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.

Bluetooth Connectivity:
LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.

C-type Connection:
USB-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.

Panel:

• Screen Size (Inch): 86
• Panel Technology: IPS
• Back Light Type: Direct
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160 (UHD)
• Refresh Rate: 60Hz
• Brightness: 390nit (Typ., without Glass)
• Contrast Ratio: 1,200:1
• Dynamic CR: 5,000:1
• Color Gamut: NTSC 68%
• Viewing Angle (H x V): 178º x 178º
• Color Depth (Number of Colors): 1.07 Billion colors
• Response Time: 8ms (G to G)
• Surface Treatment (Haze): Haze 28%
• Life time: 50,000Hrs (L30)
• Operation Hours (Hours/Day): 16/7
• Portrait / Landscape: NO / YES

Connectivity:

• HDMI In: YES (3ea)
• HDMI In (HDCP Ver.): 2.2
• DP In: NO
• DVI-D In: NO
• RGB In: YES
• Audio In: YES
• RS232C In: YES
• RJ45(LAN) In: YES (1ea)
• IR In: NO
• USB In: USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)
• HDMI Out: YES
• DP Out: NO
• Audio Out: YES
• Touch USB: USB2.0 Type B (2ea)
• External Speaker Out: NO
• RS232C Out: NO
• RJ45(LAN) Out: YES

Mechanical Specifications:

• Bezel Color: Black
• Bezel Width: T/R/L/B : 15/15/15/44mm
• Weight (Head): 58.6Kg
• Monitor Dimensions (W x H x D): 1957 × 1160 × 100mm
• Handle: YES

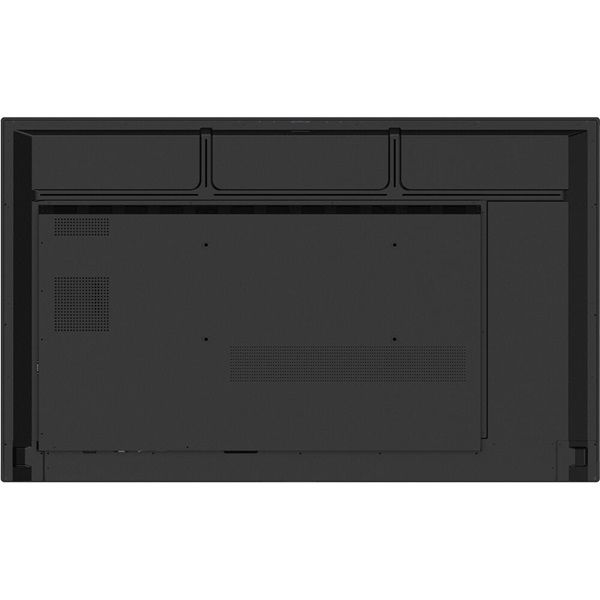

• VESA Standard Mount Interface: 800 x 600 mm

Environment Condition:

• Operation Temperature: 0 °C to 40 °C
• Operation Humidity: 10 % to 90 %

Power:

• Power Supply: AC 100-240V~, 50/60Hz
• Power Type: Built-in Power

Power Consumption:

• Typ.: 385W
• Max.: 580W
• BTU (British Thermal Unit): 1314 BTU/Hr(Typ.), 1979 BTU/Hr(Max.)
• DPM: 0.5W
• Power off: 0.5W

Sound:

• Speaker (Built-in): YES (15W x 2)
