LG 55UL3J-N 55 Inch 3840 x 2160 (UHD) 400nit ADS 16/7 Standard Digital Signage Display

LG's Wireless Screen Sharing Solution, LG One:Quick Share. LG One:Quick Share is a wireless screen sharing solution available on the UL3J series, USB transmission unit, and its app. You can simply share a personal PC screen to the display with its USB dongle button and embedded Wi-Fi, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode helps you display the agenda before the meeting starts.

Remote Monitoring and Control:
This web-based monitoring solution enables the user to have full access from their mobile phone or PC under a network-accessible environment to current data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

Compatible with AV Control Systems:
The UL3J series supports Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control.

Wireless Access Point:
UL3J series operates as a virtual router which can be a wireless access point for mobile devices. Number of connected mobile devices is limited.

Superb Picture Quality with Ultra HD Resolution:
With UHD resolution, displayed content has colours and details that are vivid and realistic. In addition, the IPS panel provides wide viewing angles.

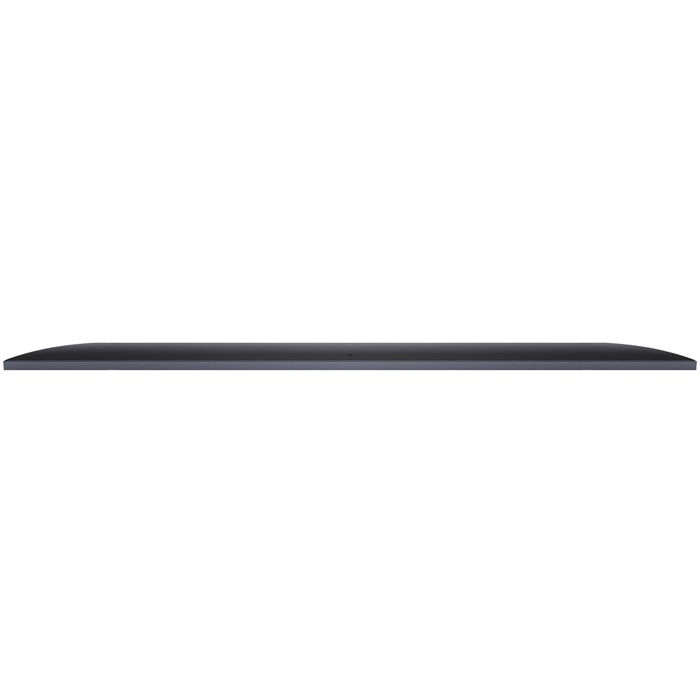

Narrow Bezel & Slim Depth:
The UL3J series has a small bezel size and thickness, which saves space and enables easy installation. In addition, it provides an immersive experience and has a sophisticated design that improves the decor of the space where the product is installed.

High Performance with LG webOS 6.0:
WebOS 6.0 from LG is upgraded in the SoC and web engine, and is available on the UL3J series of panels, enabling the smooth running of many tasks. The LG webOS smart signage platform’s intuitive GUI adds convenience for the user.

Panel:

• Screen Size: 55"
• Panel Technology: ADS
• Back Light Type: Direct
• Aspect Ratio: 16:9
• Native Resolution: 3,840 x 2,160 (UHD)
• Refresh Rate: 60Hz
• Brightness (Typ.): 400 nit
• Contrast Ratio: 1,200:1
• Dynamic CR: 1,000,000 : 1
• Color gamut: DCI 80%
• Viewing Angle (H x V): 178 × 178
• Color Depth: 1.07G (8bits + FRC)
• Response Time: 8ms (G to G)
• Surface Treatment: 1%
• Lifetime: 30,000Hrs (Min)
• Operation Hours (Hours / Days): 16 / 7
• Portrait / Landscape: Yes / Yes

Mechanical Specifications:

• Bezel Colour: Ashed Blue
• Bezel Width: Off : 6.9/6.9/6.9/18.4 mm ; On : 12.8/12.8/12.8/19.9 mm
• Weight (Head): 14.0kg
• Monitor Dimensions (W × H × D): 1,235 x 715 x 57.5 mm
• VESA Standard Mount Interface: 300 x 300 mm

Environment Conditions:

• Operation Temperature: 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
• Operation Humidity: 10 % to 80 %

Power:

• Power Supply: AC 100-240V~, 50/60Hz
• Power Type: Built-In Power

Power Consumption:

• Typ./Max.
• 105 W / 160 W
• Smart Energy Saving (70%): 73.5 W
• DPM: 0.5W
• Power Off: 0.5W
• BTU (British Thermal Unit): 358 BTU/Hr(Typ.), 546 BTU/Hr(Max.)

Connectivity:

• Input: HDMI (3, HDCP 2.2/1.4), RS-232C In (4 Pin Phone-jack), RJ45 (LAN), USB 2.0 (2, Type A)
• Output: Audio Out, RS-232C Out (4 Pin Phone-jack)

Sound:

• Speaker: Yes (10W X 2)
