LG 49UH5N-M 49 Inch 3840 x 2160 (4K UHD) 8ms 500nit 24/7 IPS Digital Signage Display

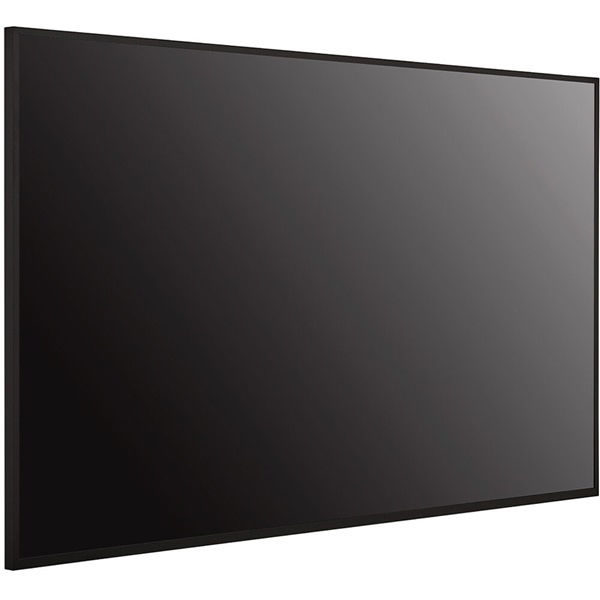

Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

High Resolution Display:
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Sturdy Design with Fire Flame Resistance:
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.

Enhanced Security Features
The UH5N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability:
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions:
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Panel:

• Screen Size (Inch): 49"
• Panel Technology: IPS
• Back Light Type: Edge
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160 (UHD)
• Refresh Rate: 60Hz
• Brightness (Typ.): 500nit (Typ.)
• Contrast Ratio: 1,100:1
• Dynamic CR: 1,000,000:1
• Color gamut: BT709 95%
• Viewing Angle(H x V): 178 X 178
• Color Depth: 10bit(D), 1.07Billion colors
• Response Time: Tr : 8ms / Tf :10ms
• Surface Treatment(Haze): 28%
• Life time: 50,000Hrs (Min.)
• Operation Hours (Hours/Day): 24/7
• Portrait / Landscape: Yes / Yes

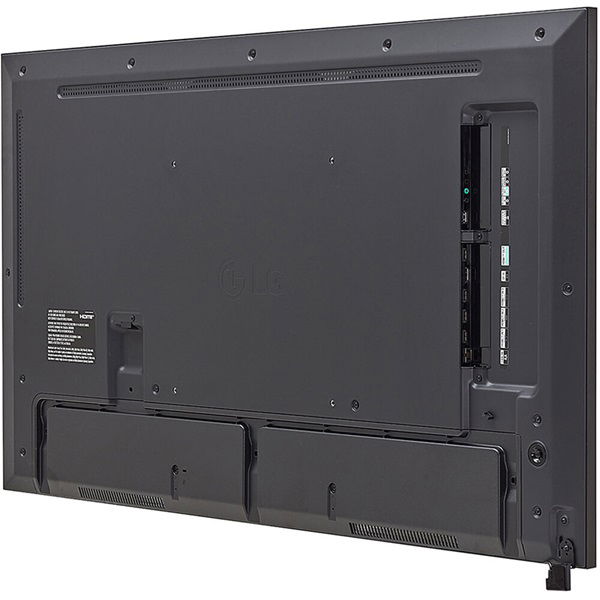

Connectivity:

• HDMI IN: Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
• DP IN: Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
• RS232C IN: Yes (1), 4pin Phone-jack
• RJ45(LAN) IN: Yes (1)
• IR IN: Yes (1)
• USB IN: USB2.0 Type A(1)
• HDMI Out: Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
• Audio Out: Yes (1)
• RS232C Out: Yes (1), 4pin Phone-jack
• IR Out: No (Support IR daisy chain via RS232C IN/OUT)

Mechanical:

• Bezel Color: Black
• Bezel Width: T/R/L: 8.9mm, B: 12.9mm
• Weight (Head): 13.6 kg
• Monitor Dimensions (W x H x D): 1095.6 x 630.8 x 29.7mm (without IR)
• VESA Standard Mount Interface: 300 x 300

Environment Conditions:

• Operation Temperature: 0°C to 40°C
• Operation Humidity: 10 % to 80 %

Power:

• Power Supply: AC 100-240V~, 50/60Hz
• Power Type: Built-In Power
• Power Consumption (Typ.): 87W
• Power Consumption (Max.): 140W
• Power Consumption (British Thermal Unit): 297 BTU/Hr(Typ.), 478 BTU/Hr(Max)
• Power Consumption (Smart Energy Saving, ~70%): 61W
• Power Consumption (DPM): 0.5W
• Power Consumption (Power Off): 0.5W
