Key Details:
- Model: LKV378A
- Part #: CD04344
- Warranty: Supported by Manufacturer
- Brand: Lenkeng
Ask Our Experts:

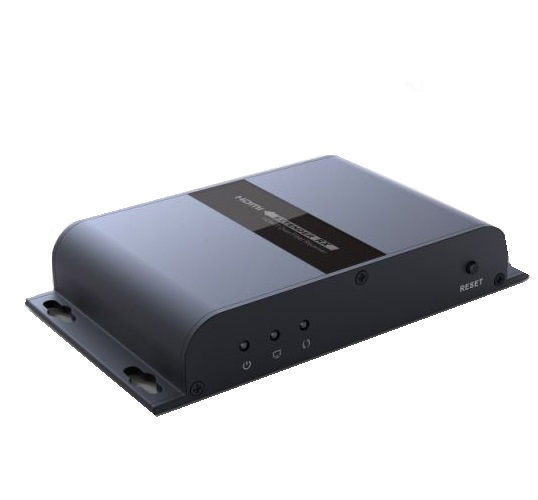

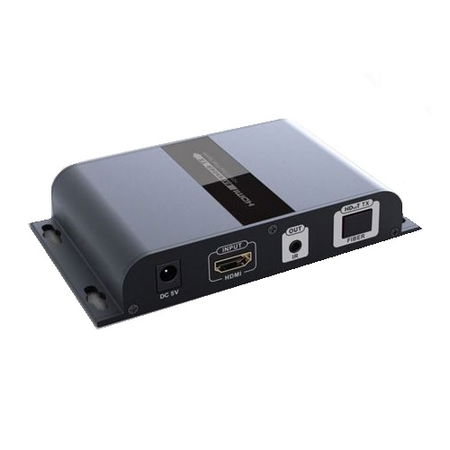

Lenkeng HDMI Over Fibre 1080P Extender Kit up to 20km - 1x Transmitter, 1x Receiver
This HDMI extender applies HDbitT technology, to transmit HDMI signal over a single optical fiber cable up to 20 km. It supports IR pass-back function and the highest resolution supported is 1080P@60Hz.
- Single mode fibre optic transmission
- No need extra installation driver
- Transmit 1080p signal up to 20km
- Support IR passes back for easy control
- Avoid the electromagnetic interference in the environment for long distance transmission
- Low signal loss, wide frequency band and strong anti-interference
- High-end aluminium alloy enclosure design
- Wall-mountable design for convenient installation
- HDMI Signal: Full Compatible with HDCP
- Transportation Protocol: HDbitT
- Support Resolution: 480i@60Hz, 480p@60Hz, 576i@SOHz, 576p@SOHz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
- DDC Signal Voltage: 5Vp-p (TTL)
- TMDS Bandwidth: 10.2Gpbs
- Central Wave Length: 1310nm
- Transmission Distance: 1 - 20km
- Link Loss: < 14dB
- Output Light Power: < 11dBm
- Receive Sensitivity: < 32dBm
- Return Loss: 15dB
- IR Remote Control: Support 20-60KHz IR remote control
- Power Supply: 5V/2A DC x2pcs
- Power Consumption TX < 4W RX < 3.5W
- Working Temperature: 0C - 60*C
- Enclosure Material: Aluminium Alloy
- Product Dimension (W x D x H): 138x81.5x24mm x 2pcs
- WeightTX: 178g RX: 177g
- Colour Black
