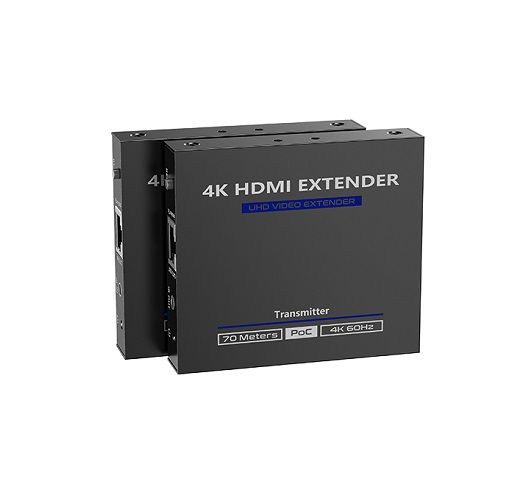

Lenkeng HDMI 2.0 Extender over Cat6/6e Kit with PoC for Receiver

This is an HDMI point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI loop out, IR passthrough, 3.5mm audio output, etc. This kit is a reliable, ultra-high-definition video transmission solution, which is widely used in security monitoring, home theatre, broadcasting, training and other fields.

• Zero-latency transmission.
• Extend 4K@60Hz HDMI signal up to 70m over Cat6/6A/7 cable
• The receiver supports 3.5mm stereo output.
• Support HDR10.
• Support EDID passthrough and auto downscaling.
• The transmitter supports HDMI loop out.
• Support IR passthrough.
• Lightning protection, surge protection, ESD protection.
• Support PoC Network Cable Power SupplyOnly TX Power supply is needed

Video:

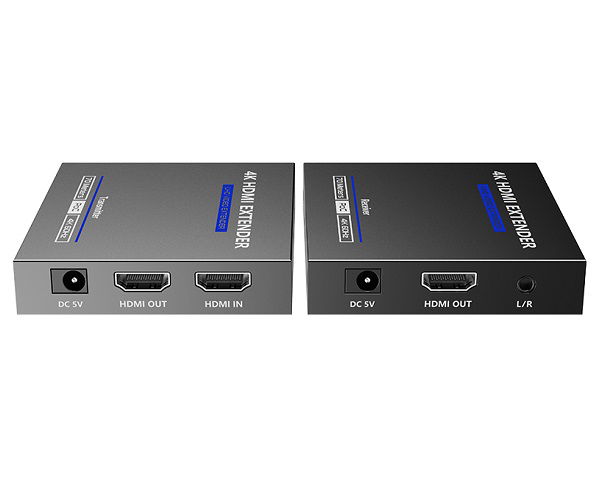

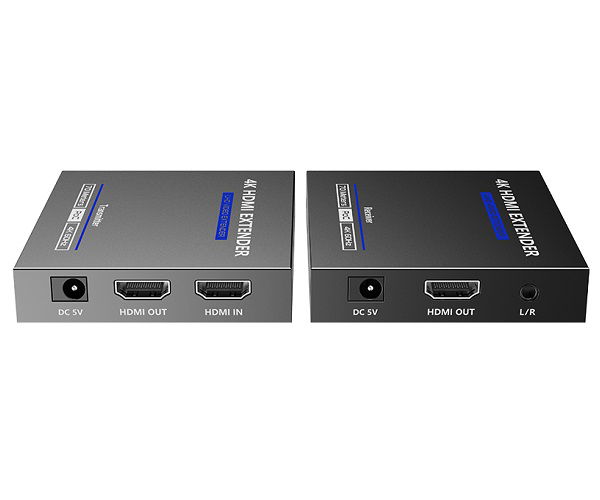

• Input Interface: Transmitter: 1x HDMI Type-A Female | Receiver: 1x RJ45 Female
• Output Interface: Transmitter: 1x HDMI Type-A Female, 1x RJ45 Female | Receiver: 1x HDMI Type-A Female
• HDMI Length: Transmitter: ≤ 5m | Receiver: ≤ 5m
• Maximum Transfer Rate: 18Gbps
• Maximum Transmission Bandwidth: 600MHz
• EDID Pass-Through: Yes
• Compatibility: HDMI 2.0 (Deep colour, 4K, HDR, YUV4:4:4), HDCP 2.2
• Resolutions: 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
• Transmission Distance: CAT6/6A/7 up to 70m

Audio:

• Input Interface: Transmitter: 1x HDMI Type-A Female | Receiver: N/A
• Output Interface: Transmitter: 1x HDMI Type-A Female | Receiver: 1x HDMI Type-A Female, 1x 3.5mm L/R Female
• Audio Formats: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos

Command Signal:

• IR Interface: Transmitter: 1x 3.5mm IR OUT, Female | Receiver: 1x 3.5mm IR IN, Female
• Receiving Range: ≤5m
• Infrared Frequency: 20KHz~60KHz

Power:

• Power Supply: Transmitter: DC 5V/2A | Receiver: DC 5V/2A
• Power Consumption: Transmitter: ≤ 4W | Receiver: ≤ 4W

Operating Environment:

• Working Temperature: -20℃~60℃
• Storage Temperature: -30℃~70℃
• Humidity: 0~90%RH (No condensation)

Physical Properties:

• Housing: Metal
• Weight: Transmitter: 140g | Receiver: 140g
• Colour: Black
• Dimensions: 85.0(L) x 75.5(W) x 16.5(H)mm
• Protection: ESD protection, 1a Contact discharge level 2 (±4KV), 1b Air discharge level 3 (±8KV), Implementation of the standard: IEC61000-4-2
• Certifications: FCC/CE/RoHS2.0
