Key Details:
- Model: LKV383-4.0-RX
- Part #: CD006355
- Warranty: 1 Year
- Brand: Lenkeng
Ask Our Experts:

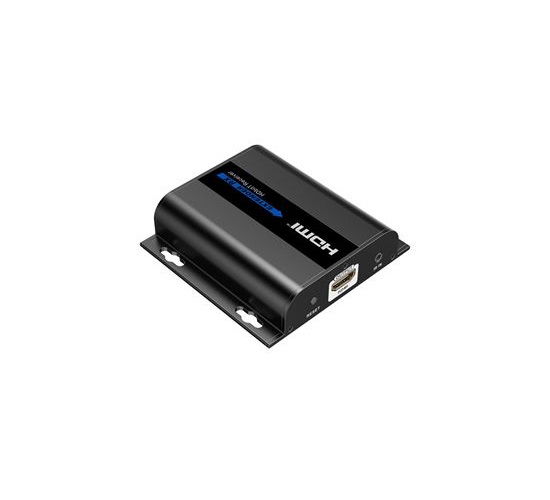

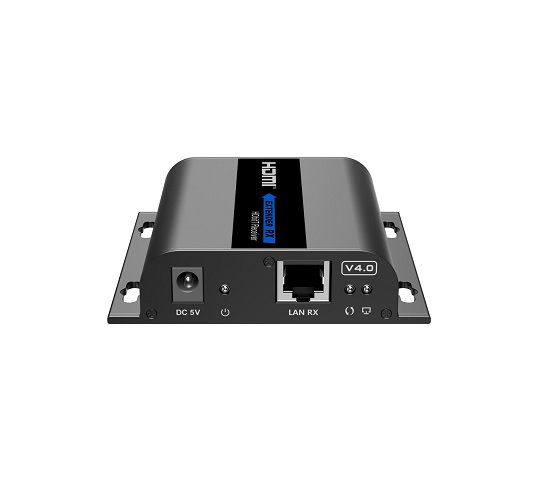

Lenkeng HDbitT HDMI Extender Over IP CAT5/5e/6 Network Receiver
LENKENG HDbitT HDMI Extender over IP CAT5/5e/6 Network Receiver. Supports up to 120m 1080p@60Hz One to many Connections. Receiver ONLY for LKV383-4.0 (Only Compatible with Version 4). Compatible with LKV683POE-4.0, however, the LKV383-4.0-RX unit requires connection with a power adapter.
- HDMI compliance: HDMI1.3
- HDCP compliance: HDCP1.4
- Transmission medium: network cable
- Transmission distance: CAT5：80m，CAT5e：100m，CAT6：120m
- Video bandwidth: 18Mbps (10.2G)
- Video support: 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz
- Audio support: PCM
- Input TMDS signal: 0.7~1.2Vp-p
- Input DDC signal: 5Vp-p
- RS232 support: no
- POE support: no
- Multiple receiver connection: yes (one TX to unlimited RX)
- IR passback: yes
- IR frequency Range (KHz): 20-60Khz
- Input: Transmitter-TX: 1×HDMI; DC2.1 | Receiver-RX: DC2.1, RJ45 ×1, 3.5mm Audio F ×1 (IR)
- Output: Transmitter-TX: RJ45 ×1, 3.5mm Audio F ×1 (IR) | Receiver-RX: 1×HDMI
- HDMI source control: Controllable via IR passback from RX to TX
- HDMI connector: Type A 19 Pins, Female
- Housing: Metal enclosure
- Dimensions (L×W×H): 96.8×94×23.7mm
- Net weight: Transmitter-TX: 145g | Receiver-RX: 142g
- Power supply: 5V/1A
- Power consumption: Transmitter-TX: 3.5W | Receiver-RX: 3W
- Protection: Lightning Protection, Surge Protection, ESD protection
- Operation temperature: 0~60℃
- Storage temperature: —20～70℃
- Relative humidity: 0～95% (no condensation)
