Lengkeng HDMI KVM Extender

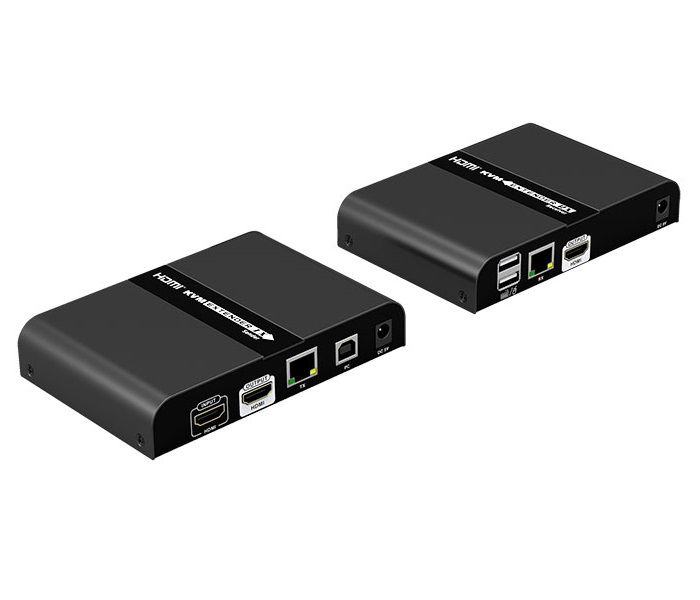

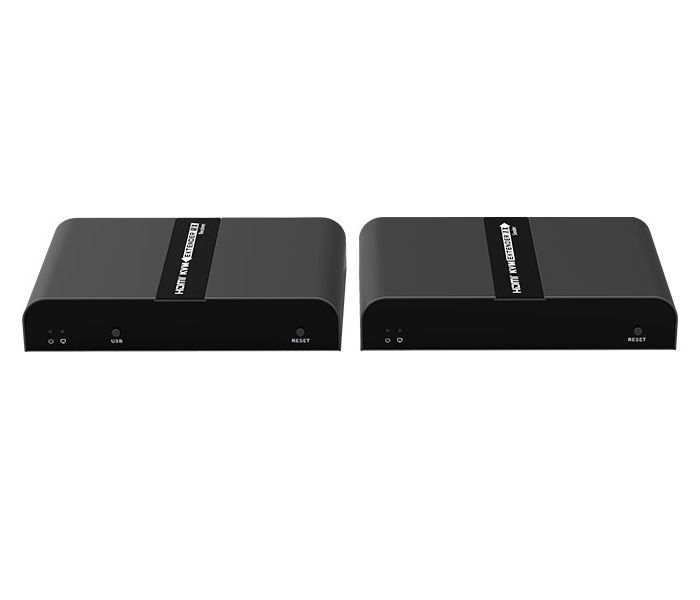

This HDMI KVM extender consists of a transmitter (TX) and a receiver (RX). Using advanced video processing technology, the signal can be extended up to 100m over CAT6/6A/7 cable without compression and nearly zero latency. It supports EDID pass back through the gigabit switch. The resolution supported is up to 4K@30Hz. It supports KVM function which allows access to a computer system from a remote console with a USB mouse and keyboard. Works well with control and security purposes and is widely used in command centres, data control centres, banks and more.

• The transmitter supports 1x HDMI loop-out
• Uncompressed and nearly zero latency transmission
• Support distance of up to 100m via CAT6/6A
• Support one-to-many connection
• Support KVM function
• Support HDCP 2.2
• Support EDID passback
• Resolution supported is up to 4K@30Hz
• Support wireless keyboard/mouse to control from the receiver end
• Plug and play, easy installation

Transmitter-TX:

• HDMI compliance: 1.4
• HDCP compliance: 2.2
• Video bandwidth: 334MHz
• Transmission distance: 100m (CAT6)
• Video support: 720x480@60Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x800@60Hz, 1280x1024@60Hz,1440x900@60Hz,1680x1050@60Hz,1920x1080@60Hz, 2560x1080@60Hz, 3840x2160@30Hz, 4096x2160@30Hz
• Audio support: PCM
• InputTMDS signal: 1.2V p-p
• loop-out on TX: yes
• IR passback: no

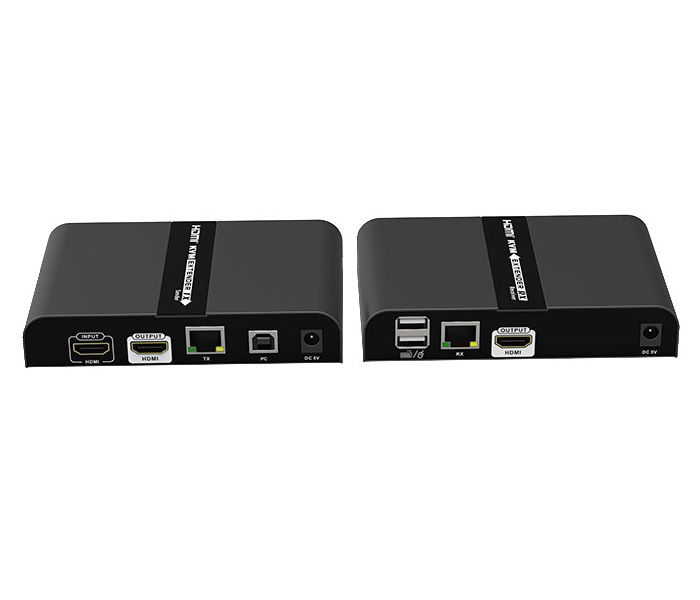

• Input: 1× HDMI, 1× USB, DC2.15, DC
• Output: 1× HDMI, 1×RJ45
• HDMI connector: Type A, Female, 19-pin
• RJ-45 connector: RJ-45
• Power supply: 5V 1A
• Operation temperature: 0°C~60°C
• Storage temperature: -10°C~70°C
• Relative humidity: 0~90%(non-condensing)
• Dimensions (L×W×H mm): 132.37×89.70×24.90mm

Receiver-TX:

• Input: 1× RJ45, DC2.1
• Output: 1× HDMI, 3×USB
• Dimensions (L×W×H mm): 132.37×89.70×24.90mm
