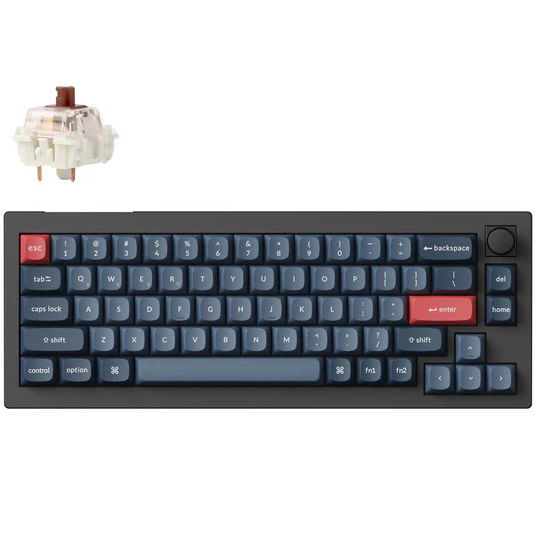

Keychron V2 Max 65% Brown Switch RGB Wireless Mechanical Keyboard with Knob

The V2 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a compact 65% layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V2 Max is designed for a personalized experience and enhanced typing comfort.

All-Around Customizable Keyboard:
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

2.4 GHz & Bluetooth Connection:
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V2 Max via Bluetooth 5.1 to three devices.

Dual Receivers:
For a better 2.4 GHz wireless experience, the V2 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

An Epic Core Inside the Keyboard:
A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps:
These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Switch Layouts Between macOS & Windows:
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V2 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Hot-swappable:
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights:
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

• Width: 123.3 mm
• Length: 329.9 mm
• Front Height: 23 mm (without keycaps)
• Back Height: 29.3 mm (without keycaps)
• Feet Height: 2 mm
• Angle: 3.5° / 7.5° / 9.7°
• Weight: 696 ± 10 g (Fully Assembled Version)
• Body Material: ABS Plastic
• Plate Material: PC
• Polling Rate: 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
• Mount Style: Gasket Mount Design
• Bluetooth Device Name: Keychron V2 Max
• Battery: 4000 mAh Rechargeable li-polymer battery
• Wireless Working Time (Backlit off): Up to 225 hours (Lab test result may vary by actual use)
• Wireless Working Time (RGB): Up to 100 hours (Lowest brightness)
• Charging Time: Around 5 hours
• Bluetooth Version: 5.1
• Compatible System: Windows/macOS/Linux
• N-Key Rollover (NKRO): Yes for both wireless and wired modes
• Hot-swappable: Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
• Keycaps (Fully Assembled Version): Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
• MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
• Switches: Gateron Jupiter (Fully Assembled Version)
• Backlight: South-facing RGB LED
• Stabilizer: Screw-in PCB stabs
• Charging Port: USB Type-C
• Cable: Type-C cable + Type-A to Type-C adapter
• Operating Environment: -10℃ to 50℃

• 1x Fully Assembled Keyboard
• 1x Type-C to Type-C Cable
• 1x Type-A to Type-C Adapter
• 1x Extension Adapter for Receiver
• 1x Type-A 2.4GHz Receiver
• 1x Type-C 2.4GHz Receiver
• 1x Keycap & Switch Puller
• 1x Screwdriver
• 1x Hex Key
