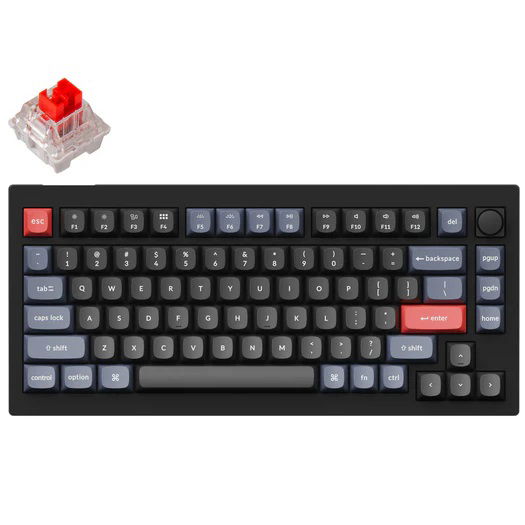

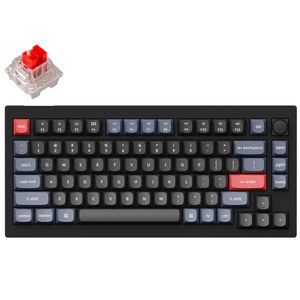

Keychron V1 75% Red Switch RGB Wired Mechanical Keyboard with Knob - Carbon Black

The V1 is a fully customizable mechanical keyboard ready for any situation. It’s a great option to introduce you to the custom keyboard world. With its compact 75% layout, QMK/VIA support, acoustic silicone pad, and double-shot PBT keycaps, the V1 is designed for ultra typing comfort and boost productivity.

All-Around Customizable Keyboard:
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Programmable Knob:
Designed to enhance your creative workflow, its aluminum rotary encoder allows you to customize your favorite keys and macros on the knob through the VIA software with ease.

An Epic Core Inside the Keyboard:
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps:
These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Switch Layouts Between macOS & Windows:
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V1 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Hot-Swappable:
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-Facing RGB LED Lights:
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

• Width: 148.7 mm
• Length: 328.5 mm
• Front Height: 17.9 mm (without keycaps)
• Back Height: 25.8 mm (without keycaps)
• Feet Height: 2.4 mm
• Angle: 3.5° / 7.08° / 9.52°
• Weight: 970 g ± 10 g (Fully Assembled Version)
• Body Material: ABS Plastic
• Plate Material: Steel
• Polling Rate: 1000 Hz
• Mount Style: Tray Mount Design
• Keycaps (Fully Assembled Version): Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
• MCU: Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
• Switches: Keychron K Pro (Fully Assembled Version)
• Backlight: South-facing RGB LED
• Switch Support: Hot-swappable (5 pin & 3 pin)
• Stabs: Screw-in PCB stabs
• Connectivity: Type-C
• Cable: Type-C cable + Type-A to Type-C adapter
• Operating Environment: -10℃ to 50℃

• 1x Fully Assembled Keyboard
• 1x Type-C to Type-C Cable
• 1x Type-A to Type-C Adapter
• 1x Switch Puller
• 1x Keycap Puller
• 1x Screwdriver
• 1x Hex Key
