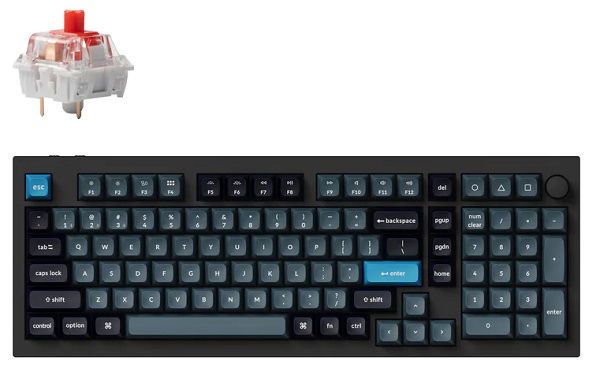

Keychron Q5P-M1 96% Red Switch RGB Wireless Mechanical Keyboard With Knob - Carbon Black

Introducing Keychron Q5 Pro, a unique 96% layout QMK/VIA wireless mechanical keyboard with a full aluminum body. Along with our many premium designs, including double-gasket design, PBT keycaps, screw-in stabs, etc., it is designed to deliver a premium typing experience for users!

Wireless And Wired:
An excellent solution for multitasking. You can connect the Q5 Pro with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.1 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows. A reliable USB Type-C wired connection is also available when you need it.

A Refined Piece Of Metal Art:
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q5 Pro.

Easy Assemble:
We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.

Double-Gasket Design:
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.

An Epic Core Inside The Keyboard:
A powerful ultra-low-power ARM Cortex-M4 32-bit STM32L432 chip (MCU) equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on type-c wired mode (90 Hz on wireless mode), which makes the latency hardly noticeable even in competitive games.

KSA Double-Shot PBT Keycaps:
To further fine-tune your typing experience, we designed our unique Keychron spherical-angle (KSA profile) double-shot keycap set with premium non-backlight shine through PBT material, that is oil-resistant and durable for long-term use.

Suitable for All Devices;
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q5 Pro comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Programmable Knob:
Designed to enhance your creative workflow, the aluminum rotary encoder allows you easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Hot-Swappable:
Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the Q5 Pro with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.

South-Facing RGB:
Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.

Keychron K Pro Mechanical Switch:
By optimizing the switch mold, the Q5 Pro switch wobbles less than the standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed K Pro switches will ensure the best fingertip smoothness. Not to mention the banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

PCB Stabilizers:
No detail is too insignificant when it comes to your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as the space bar, shift, enter, and delete keys. You can even customize your favorite stabilizers on your own.

• Width: 145 mm
• Length: 408 mm
• Front Height: 22.6 mm (without keycaps)
• Back Height: 35.8 mm (without keycaps)
• Feet Height: 2.4 mm
• Angle: 5.2°
• Weight: 2160 g ± 10 g
• Body Material: Full CNC machined aluminum
• Plate Material: PC
• Keycap: KSA double-shot PBT keycaps, not shine-through
• Switch: Keychron K Pro
• Stabilizer: Screw-in PCB stabilizer
• Backlight: South-facing RGB LED
• Hot-swappable: Yes
• MCU: Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
• Polling Rate: 1000 Hz (wired) / 90 Hz (wireless)
• N-Key Rollover (NKRO): Yes for both wireless and wired modes
• Operating Environment: -10 to 50℃
• Battery: 4000 mAh Rechargeable li-polymer battery
• BT Working Time (Backlit off): Up to 300 hours (Lab test result may vary by actual use)
• BT Working Time (RGB): Up to 100 hours (Lowest brightness)
• Bluetooth Version: 5.1
• Compatible System: macOS/Windows/Linux
• Connectivity: Bluetooth / Type-C wired
