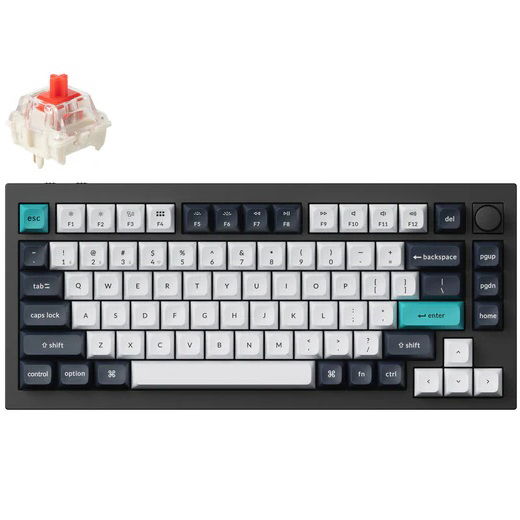

Keychron Q1 Max 75% Red Switch RGB Wireless Mechanical Keyboard with Knob - Carbon Black

Meet the Keychron Q1 Max, a full metal QMK/VIA wireless custom mechanical keyboard upgraded with a 2.4 GHz wireless connection, featuring a 1000 Hz polling rate. Elevating the typing experience further, it has been thoughtfully upgraded with multiple layers of acoustic foams, ensuring a premium sound quality with every keystroke.

Double-Shot PBT Keycaps:
The double-shot PBT keycaps of the Q1 Max provide excellent oil resistance and prevent the legends from fading out. Additionally, the keyboard offers two different keycap options to meet varying preferences and needs.

2.4 GHz & Bluetooth Connection:
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q1 Max via Bluetooth 5.1 to three devices.

A Refined Piece of Metal Art:
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q1 Max.

Significantly Enhanced Acoustic Foams:
Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.

Easy Assemble:
We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.

An Epic Core Inside the Keyboard:
A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.

Double-Gasket Design:
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.

Suitable for All Devices:
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q1 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Hot-Swappable:
Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the Q1 Max with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.

South-Facing RGB:
Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.

• Width: 145 mm
• Length: 327.5 mm
• Front Height: 22.6 mm (without keycaps)
• Back Height: 35.8 mm (without keycaps)
• Feet Height: 2.4 mm
• Angle: 5.2°
• Weight: 1724 g ± 10 g (Fully Assembled version)
• Body Material: Aluminum
• Plate Material: PC
• Keycap: KSA double-shot PBT keycaps, not shine-through (Fully Assembled version) / OSA side-printed double-shot PBT keycaps (Fully Assembled version)
• Switch: Gateron Jupiter (Fully Assembled version)
• Stabilizer: Screw-in PCB stabilizer
• Backlight: South-facing RGB LED
• Hot-swappable: Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
• MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
• Polling Rate: 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth)
• N-Key Rollover (NKRO): Yes for both wireless and wired modes
• Battery: 4000 mAh Rechargeable li-polymer battery
• Wireless Working Time (Backlit off): Up to 180 hours (Lab test result may vary by actual use)
• Wireless Working Time (RGB): Up to 100 hours (Lowest brightness)
• Bluetooth Version: 5.1
• Compatible System: macOS/Windows/Linux
• Connectivity: 2.4 GHz / Bluetooth / Type-C wired
• Bluetooth Device Name: Keychron Q1 Max
• Operating Environment: -10 to 50℃

• 1x Fully Assembled Keyboard
• 1x Type-C to Type-C Cable
• 1x Type-A to Type-C Adapter
• 1x Extension Adapter for Receiver
• 1x Type-A 2.4GHz Receiver
• 1x Keycap & Switch Puller
• 1x Screwdriver
• 1x Hex Key
