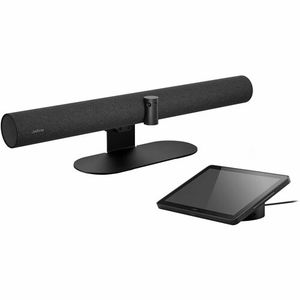

Jabra PanaCast 50 Video Bar System Certified for Zoom Rooms

The PanaCast 50 Video Bar System features full-room coverage with its unique 180° field of view Panoramic-4K multi-camera array, which uniquely delivers true-to-life representation of the people in the room. It also has eight professional-grade microphones with voice detection and intelligent algorithms that automatically identify and remove residual echoes and static noise, as well as an array of four powerful speakers in a zero-vibration stereo setup. Meanwhile, its Intelligent Meeting Room Experiences, which include the Virtual Director, Intelligent Zoom, and Dynamic Composition, provide an engaging experience for remote participants.

• World-class audio with full duplex and powerful stereo speakers
• Tap into an easier meeting experience with the PanaCast Control touchscreen tablet
• Unique 180° full room coverage in high-definition Panoramic-4K
• Certified for the strict requirements of Zoom Rooms

General info:

• Main unit dimensions (WxHxD): 730mm x 77mm x 146mm
• Main unit weight (base unit): 2259g
• Package weight: 6094.7g
• Onboard AI: Yes
• Cable management: Yes
• Kensington lock compatible: Yes
• Operating voltage: 100-240V, 12V, 5A
• LED features and functions: Answer/end call, Firmware update status, Mute/unmute Power indicator
• Certifications and compliance: Zoom Rooms

Video:

• Video input: 1 x HDMI
• Supported display resolution: Supports up to 4K, Touch Display Compatible
• Camera resolution: Up to 3x 13 megapixels
• Content sharing: Apple Airplay (only supported by Zoom), HDMI input
• Number of cameras: 3
• Type of camera: Panoramic multi-camera array
• Zoom: Up to 6x lossless digital zoom
• Field of view: Horizontal: 180°, Vertical: 54°
• Intelligent Zoom: Yes
• Dynamic Composition: Yes
• Virtual Director: Yes
• Vivid HDR: Yes

Audio:

• Speakers: 2 x 2" (50mm) woofers, 2 x 3/4" (20mm) tweeters
• Speaker frequency range: 80Hz - 20000Hz
• Number of speakers: 4
• Automatic Speaker Detection: Yes
• Full Duplex: Yes
• Microphone type: 8 microphone beamforming array - certified for rooms up to 4.5m x 6m
• Number of microphones: 8
• Microphone sensitivity: -37dBFS
• Microphone frequency range: 100Hz - 16000Hz

Security:

• Media encryption: Provided by VaaS Partner
• Access management Admin menus, Web interface, Local account, VaaS Admin Portals including Zoom Device Management
• Security management: Remote login via Web Console and VaaS Admin Portal
• Authenticated access to Admin setting, Web Console Local: Yes
• Lockdown with secure boot, OS-verified boot, Vendor lock: Yes
• Log retrieval via Web Console: Yes
• Zoom-based Vaas account authentication: Yes

Connectivity:

• Interfaces: USB-A, USB-C, Ethernet (RJ45), HDMI, Wi-Fi
• Bluetooth version: 5.1
• Supported USB versions: USB 2.0, USB 3.0

Network:

• Internet Protocol (IP): IPv4
• Ethernet: 10/100/1000 Mbps
• Auto-MDIX: Yes

Ease of use:

• Appliance mode: Yes
• Digital pan/tilt/zoom: Yes
• Manual Pan-Tilt-Zoom (PTZ): Yes
• One touch meeting join: Yes
• Camera privacy cover: Yes

Extended info:

• Operating temperature: 5°C to 35°C | 41°F to 95°F
• Operating humidity: 15% to 80%
• Storage temperature: -20°C to 60°C | -4°F to 140°F
• Maximum altitude: 4876.8m | 16000ft

• PanaCast 50 VBS Base Unit
• Power supply
• Wall mount
• Privacy cover with sensor
• Cable compartment cover and tool
• Jabra PanaCast Control
• PoE Power Injector
• 1 x Ethernet cable 1.83m/6ft
• 2 x Ethernet cable 4.57m/15ft
• 1 x HDMI cable 1.83m/6ft
• 2 x regional power cable
