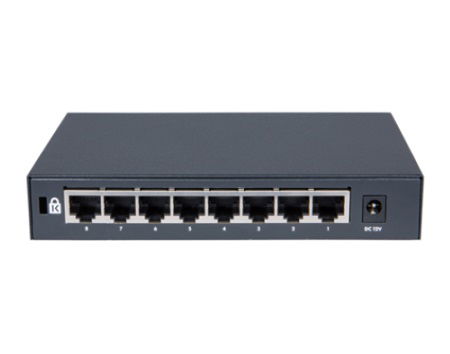

HPE OfficeConnect 1420-8G 8 Port Gigabit Unmanaged Switch

The HPE OfficeConnect 1420 Switch Series consists of unmanaged Gigabit Ethernet switches, for small businesses and others looking for plug-and-play basic Layer 2 connectivity for their network.

Ease of Use:

• Unmanaged: Provides plug-and-play simplicity
• Auto-speed negotiation: Selects individual port speed automatically, depending on client capabilities; removing
  the need for manual intervention enables simple plug-and-play operation
• Comprehensive LED display with per-port indicators: Provides an at-a-glance view of the status, activity, speed, and full-duplex operation
  of the switches
• Flow control: Helps ensure reliable communications during full-duplex operation
• HPE/IEEE Auto-MDIX: Automatically adjusts for straight-through or crossover cables on all RJ-45 ports

Performance:

• Energy Efficient Ethernet support: Supports new IEEE 802.3az standard; and allows lower power consumption, when operated with IEEE-compliant client devices
• Half-/full-duplex auto-negotiating capability on every port doubles the throughput of every port
• Jumbo frame support: Allows frames up to 9,216 bytes to be switched through the network

• Ports: 8 RJ-45 autosensing 10/100/1000 ports
• Memory: Packet buffer size: 187.5 KB
• 100 Mb Latency: < 3 µs (LIFO 64-byte packets)
• 1000 Mb Latency: < 2.6 µs (LIFO 64-byte packets)
• Throughput: Up to 11.8 Mpps
• Routing/Switching capacity: 16 Gbps
• MAC address table size: 4096 entries
• Operating temperature: 0°C to 40°C
• Operating relative humidity: 5% to 95%
• Nonoperating/Storage temperature: -40°C to 70°C
• Nonoperating/Storage relative humidity: 5% to 90%
• Altitude: Up to 16,404 ft (5 km)
• Acoustic: 0 dB No fan
• MTBF: 121.45 years
• Frequency: 50/60 Hz
• Maximum heat dissipation: 55 BTU/hr (58 kJ/hr)
• Voltage: 100–240 VAC, rated
• Max Power Rating: 4.5 W
• Safety: UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03
• Dimensions (W x D x H): 15.77 x 10.49 x 2.69cm
• Weight: 0.5kg
