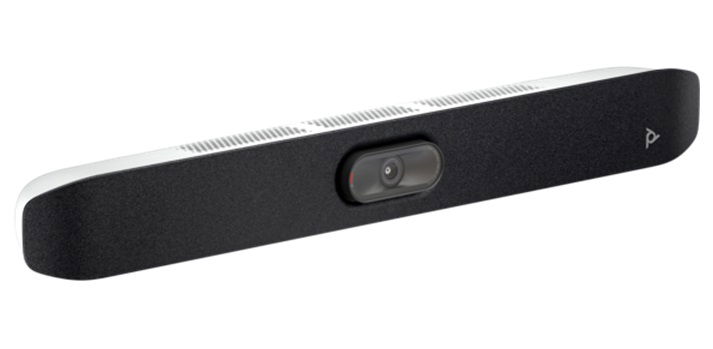

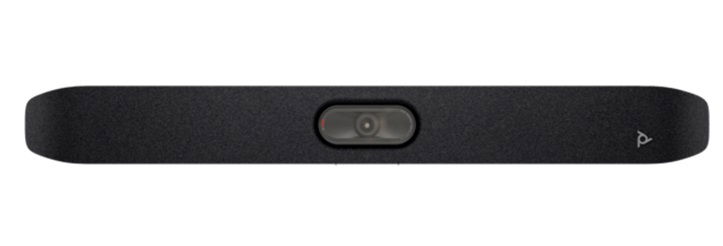

HP Poly Studio X32 All-In-One Video Bar

Small rooms, big conversations. Simplify the moment with the all-in-one Poly Studio X32 video bar. Deliver an immersive and inclusive experience with advanced audio and video AI technology and connect instantly with built-in video conferencing apps.

Focus. Clarity. Connection:
When everyone feels seen and heard, ideas flourish — even in small rooms. Poly audio and video innovations deliver an immersive meeting experience that keeps the focus solely on participants. No distractions, just effortless collaboration.

All-in-one and ready to go:
Intimate huddles are about connecting with people, not fumbling with cables. Simplified one-touch join means you get a familiar and consistent user experience on nearly all the leading cloud video services.

Maximize meeting time, minimize setup:
Streamline your conferencing experience with this PoE-enabled all-in-one video bar, purposely built for smaller spaces. Enjoy flexible configuration options and easy management through Poly Lens.

Built for a better tomorrow:
Containing at least 50% recycled plastics and shipped in paper-based packaging, this all-in-one video bar enables more impactful meetings in small rooms with less impact on the environment.

• Audio: Poly NoiseBlockAI technology; Poly Acoustic Fence technology
• Camera resolution: 2160p, 4K UHD (3840 x 2160)
• Camera type: Single-lens
• Certified collaboration software: Microsoft Teams; Zoom
• Content sharing: Apple AirPlay; Miracast; Digital Whiteboarding; HDMI input
• Content video resolution (input): UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); UXGA (1600 x 1200); SXGA (1280 x 1024); WXGA (1280 x 768); HD (1280 x 720); XGA (1024 x 768); SVGA (800 x 600)
• Content video resolution (output): UHD (3840 x 2160); HD (1280 x 720); QHD (2560 x 1440); FHD (1920 x 1080); SD (640 x 360)
• Diagonal field of view (dFoV): 132°
• Digital signage: Appspace; Raydiant
• Heat dissipation cooling: 55 BTU/h
• Horizontal field of view (hFoV): 120°
• Interoperability: Zoom; Microsoft Teams; All cloud service providers through Poly Video App mode; USB Device mode
• Lens cover capabilites: Attachable
• Management Software: Poly Lens
• Microphone pickup range (metric): Up to 4.5 m
• Microphone type: Four MEMS microphones
• Network capabilities: IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Certificate Enrollment Protocol (SCEP)
• Non-Operating Humidity Range: 5 to 95%
• Non-operating temperature: -40 to 70 °C
• Operating altitude: 4,877 m
• Operating humidity range: 15 to 80%
• Operating temperature range: 0 to 40 °C
• Operating voltage: 42.5 V - 57 V
• People video resolution: 4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 30 fps from 512 Kbps
• Physical security: Standard Kensington lock slot

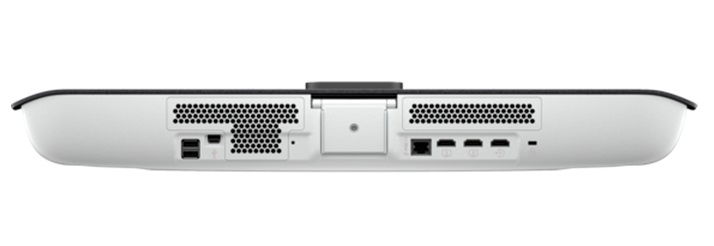

• Port: 1 USB Type-C 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 1 HDMI-in 1.4 (video and audio); 2 HDMI-out 2.0 (video); 1 RJ-45 (10/100/1000 Mbps) Ethernet interface (supporting PoE++ power supply)
• Power: Power over Ethernet (PoE++) injector or switch, compatible with IEEE 802.3bt class 6
• Power supply type: External
• Sensitivity (microphone): -26 dB FS/Pa
• Sensitivity (speaker): 77 dB (1 W/1 m)
• Signal-to-noise ratio: 63 dB
• Smart camera technology: Poly DirectorAI with speaker framing, people framing, group framing
• Speaker bandwidth: 100 Hz to 20 kHz
• Speaker output power: 2 x 5 W
• Speaker type: Dual speakers
• Special features: Auto sensing power supply
• Total camera resolution (megapixels) 20 MP
• Video frame rate: 6.25–30 fps (up to 4K resolution at 15 fps in call)
• Video standards: H.264 AVC; H.265
• Wireless technologies: Wi-Fi 802.11a/b/g/n/ac/ax (MIMO) Multi-channel Concurrency; Bluetooth® 5.0
• Zoom capability: 5x digital
• Dimensions: 576.8 x 66.1 x 74.8 mm
• Weight: 1140 g
