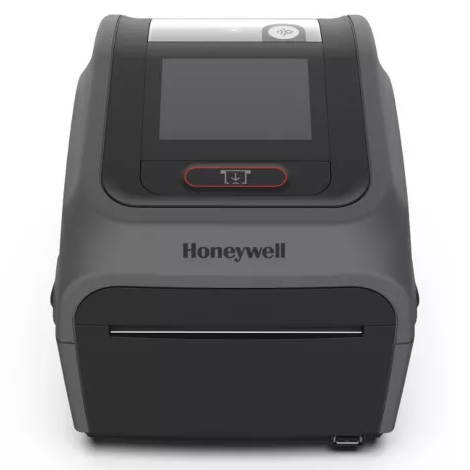

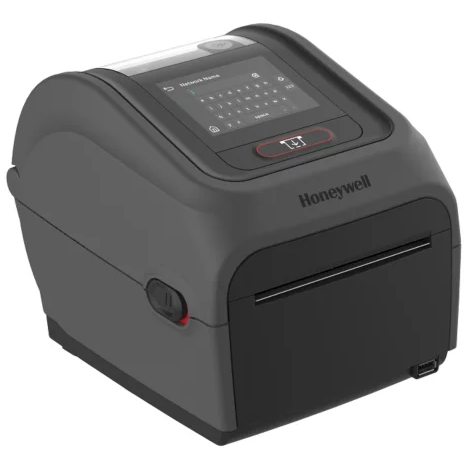

Honeywell PC45D 203DPI Ethernet and Bluetooth Direct Thermal Label Printer

Designed from the successful and advancing proven E-class and PC43 series printers with seamless connectivity, and premium performance and reliability. PC45 offers a large touch screen, enterprise-level ruggedness, and multiple new design accessories to support various needs. The PC45 is designed for businesses that invest in solutions and want a durable, stable, secure platform to implement them.

• Honeywell Operational Intelligence provides actionable insights into critical areas such as mobility devices, printer usage, and network connectivity. These insights can be turned into automated workflows that optimize workflow processes for greater productivity.
• Honeywell Printer Edge is a smart, connected printer platform with easy setup, quality output, enhanced security, and the simplicity of a single software toolkit for your printer network.
• New set of a wealth of accessories supports various customer needs

• DPI: 203
• Interface: Bluetooth, Ethernet
• Print Method: Direct Thermal (DT)
• Max. Width: 108 mm (4.25 in)
• Print Speed: 2ips up to 8ips
• Print Resolution: 8 dots/mm
• Maximum Media Width: 118mm (4.65 in)
• Maximum Media Roll Capacity: 127 mm (5 in) O.D
• Media Core I.D: 12.7 mm (0.5 in), 25.4 mm (1 in), 38.1 mm (1.5 in)
• Minimum Media Length: 6.35 mm (0.25 in)
• Media Thickness: 0.05 mm (2 mil) to 0.16 mm (6.3 mil) For optimum print quality and printer
• Media Types: Wristband, tags, receipt paper, linered and linerless labels, labels with black mark or gap
• Media Sensing: Gap, notch, black mark, continuous

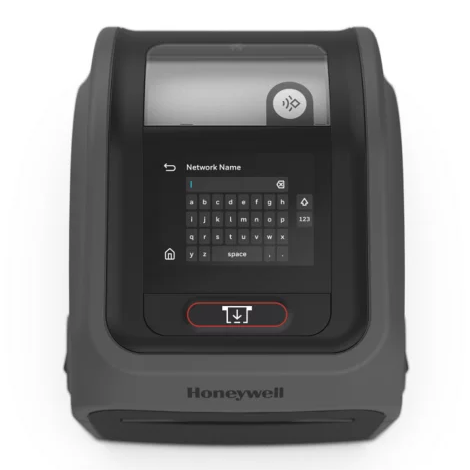

• User Interface: 88.9 mm (3.5 in) 320 x 240 Color LCD, 1 Print/Feed button and ready-to-work LED
• Memory - Standard: 256 Mbyte RAM, 512 Mbytes Flash
• Power Supply - Input: 100–240V AC/50–60 Hz, 1.5 A
• Power Supply - Output: 24V DC, 3.15 A
• Dimensions (L x W x H): 168 x 181.3 x 215.6 mm
• Weight: 1.8 kg

• Cable IEC-C13 Power Cord (CAIEC)
