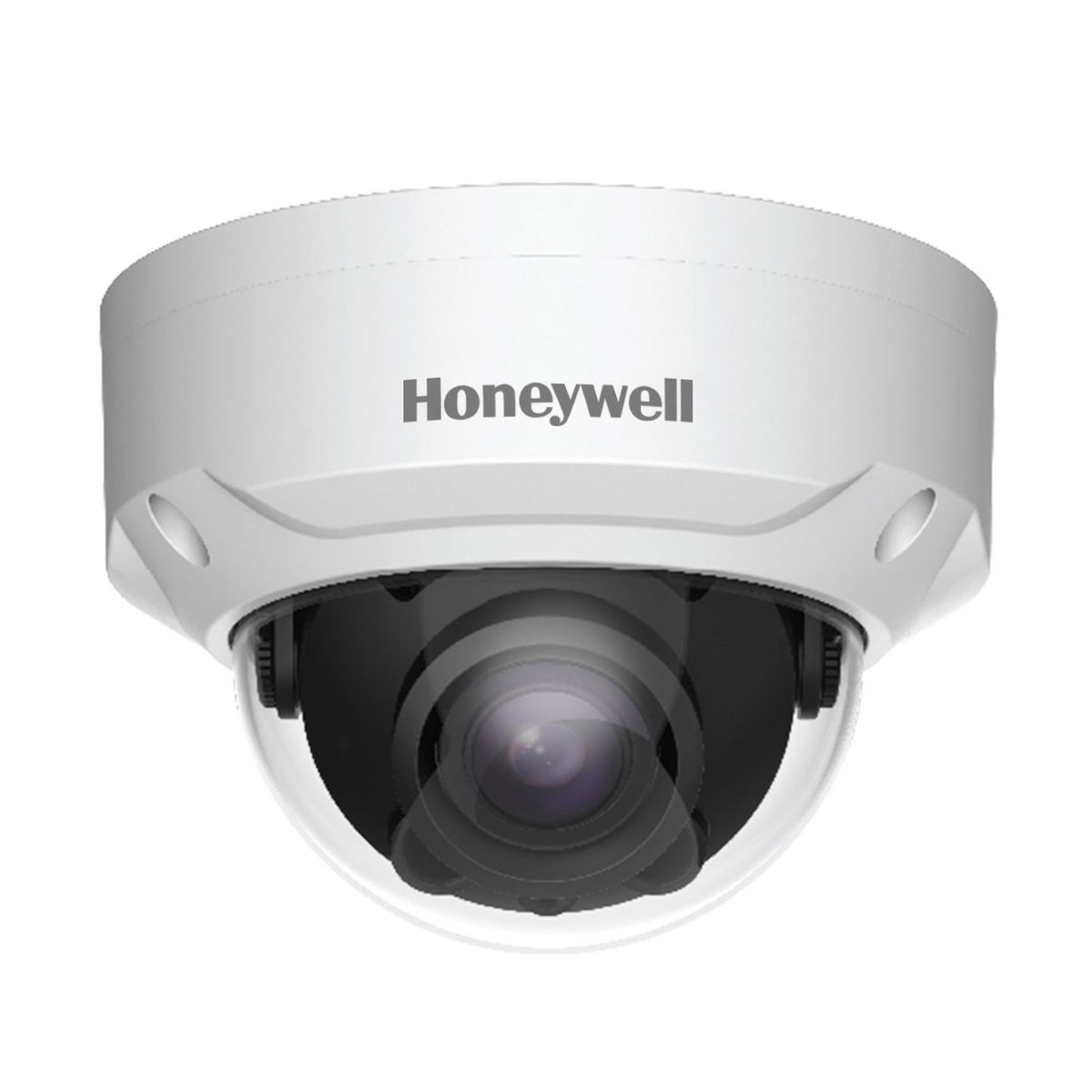

Honeywell 8MP Rugged POE 2-IR LED Mini-Dome Camera

Honeywell is taking quality and reliability to the next level with the new Performance Series IP camera. The Honeywell camera range offers incomparable picture clarity, hassle-free flexible system integration, secure data transmission and easy installation.

• 1/2" 8 MP progressive scan imager
• 3840 x 2160 resolution
• 3.7mm~11mm MFZ lens
• True day/night (IR-cut filter)
• Wide Dynamic Range up to 120dB
• Low-light performance down to 0.09 lux (colour) or 0 lux with IR LEDs on
• Up to 30m IR illumination, depending on scene reflectance
• H.265 Smart Codec
• Dual-stream support
• Support up to 128GB Micro SDHC card class 10
• PoE (802.3af) or 12V DC support
• Plug-and-play compatible with Honeywell Performance Series Embedded NVRs
• IP66 and IK10-rated rugged housing

Operational:
• Video Standard: NTSC/PAL
• Scanning System: Progressive Scan
• Image Sensor: 1/2" 8 Megapixel Progressive Scan CMOS
• Number Of Pixels: 3840 x 2160
• Minimum Illumination: 0.09lux/F1.9 (colour,30IRE), 0 Lux with IR ON
• S/N Ratio: More than 45db
• Electronic Shutter Speed: 1/3~1/100000s
• IR Distance: Up to 30m, depending on scene reflectance
• IR Light Control: Manual/SmartIR/OFF
• IR Light Number: 2
• Day / Night: Auto (ICR) / Colour / B&W
• Backlight Compensation: BLC / HLC / WDR
• White Balance: Auto/Natural/Street Lamp/Outdoor/Manual/ Customized Region
• Gain Control: 0 ~ 100
• Noise Reduction: 3D DNR
• Privacy Masking: Off / On (4 Areas, Rectangle)
• Motion Detection: Off / On (4 Zones, Rectangle)
• Region Of Interest: Off / On (4 Zones)
• Lens: 3.7mm~11mm, Motorized, F1.9
• Angle Of View: H:113°~50°, V:60°~28°

Video:
• Video Compression: H.264/H.264B/H.264H/H.265/Smart Codec/ MJPEG (Sub Stream)
• Resolution: 4K (3840×2160)/6M (3072×2048)/5M (3072*1728)/5M (2592*1944)/4M (2688*1520)/3M (2048x1536)/3M (2304×1296)/1080P (1920×1080)/1.3M (1280x960)/720P (1280×720) Sub Stream:D1 (704×480/576) /VGA (640×480)/ CIF (352×240/288)
• Frame Rate: Main Stream: 4K (1~25/30fps) Sub Stream: D1 (1~25/30fps)
• BIt Rate Control: CBR / VBR
• Bit Rate: 4Kbps ~ 15104Kbps

Network:
• Ethernet: RJ-45 (10/100Base-T)
• Supported Web Browser: Internet Explorer (11.0+)
• Protocols: HTTP, HTTPs, TCP, ARP, RTSP, RTP, RTCP, UDP, SMTP, DHCP, DNS, PPPoE, IPv4/v6, QoS, UPnP, NTP, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP, TLS
• Interoperability: ONVIF Profile S/G/Q
• Max User Access: 20 Users
• Security: User account and password protection HTTPS, IP Filter, Digest authentication, User access log, TLS1.2 only, AES-128/256, SSH/Telnet closed, sFTP by default, PCIDSS compliance
• Event: No SD card, SD card error, Capacity warning, Network disconnection, IP conflict, Illegal access
• Micro SD: Up to 128 GB microSDHC card, Class 10 (not included)
• Power Supply: DC 12V PoE (802.3af) (Class 0)
• Power Consumption: 10.9W
• Dimension: Diameter 122mm×88.9mm
• Product Weight: Approx. 0.49Kg
• Package Weight: Approx. 0.66Kg
• Construction: Die-cast aluminium housing with powder coat
• Construction Color: White
• Operating Temperature: –30°C to 60°C
• Relative Humidity: Less than 95%, non-condensing
• Ingress Protection: IP66
• Impact Resistance: IK10
• Emissions: FCC Part 15B, EN 55032
• Immunity: EN 50130-4
• Safety: UL 60950-1, EN 62368-1
• ROHS: EN 50581

• OS Compatibility: Windows 7 32-bit/64-bit, Windows 10 32-bit/64-bit
