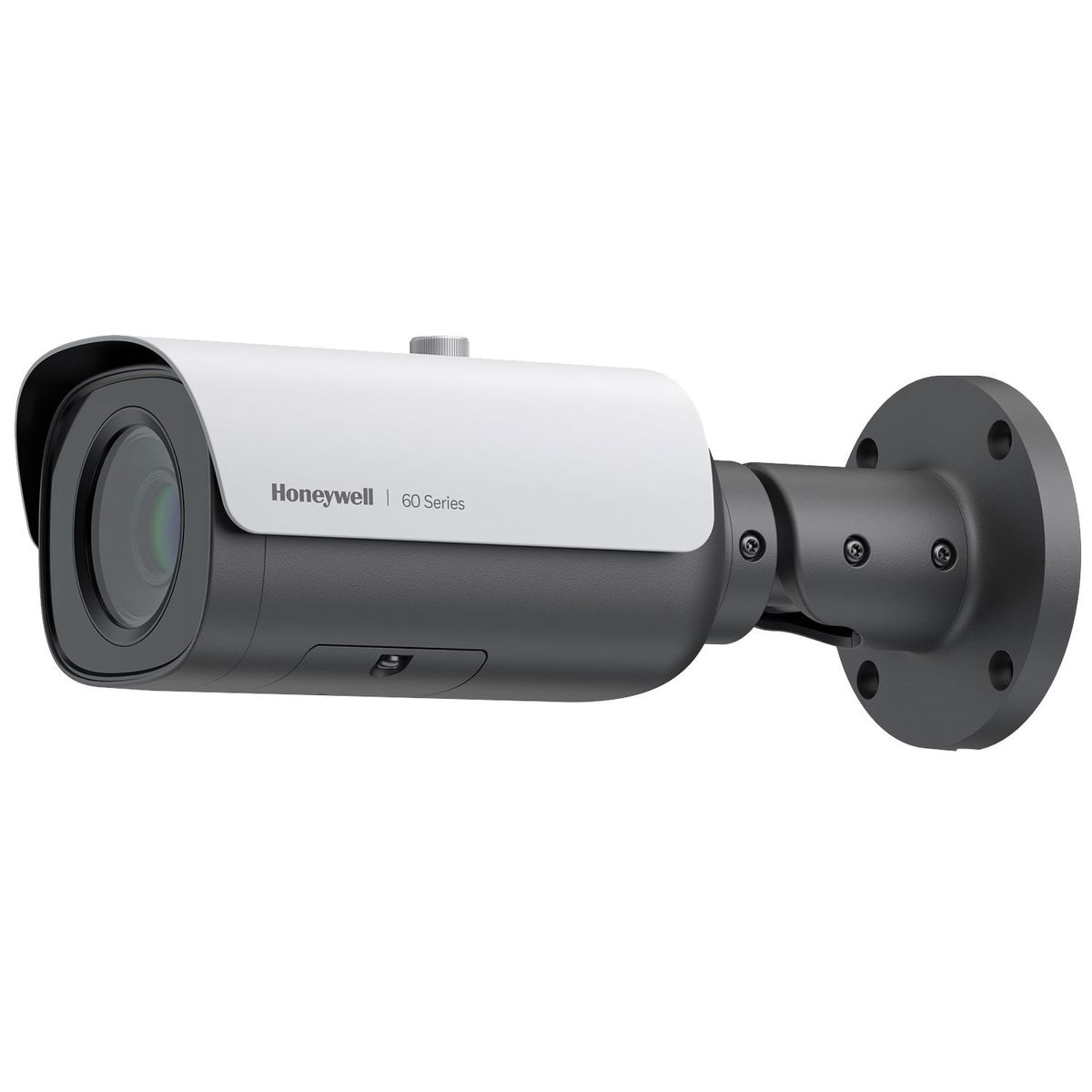

Honeywell 60 Series 5MP WDR Outdoor IR P-IRIS Lens Bullet Camera

The Honeywell 60 Series cameras are easy to install, provide clear images and are NDAA compliant right out of the box.

• 1/2.8” 5 Megapixel progressive scan CMOS.
• 5-50mm MFZ. Up to 60m(197 ft) IR, PoE+, H.265 HEVC Smart 32TB.
• 2x HDMI, 1x VGA. The 60 Series cameras are a perfect fit for dealers who are looking to sell simple, larger enterprise solutions to the compliant marketplace.
• The solution fits enterprise and critical applications where compliance is essential, such as Government, Utilities, Premium, Commercial, Retail, Campuses.

Operational:

• Video Standard: NTSC / PAL
• Scanning System: Progressive
• Image Sensor (Size : H x V): 1 / 2.8” CMOS (5.18 x 3.89 mm)
• Number Of Pixels (H × V): 5 MP (2560 x 1920)
• Min. illumination (Color/B&/W): 0.06 Lux / 0Lux (@F1.9, IR on)
• S/N Ratio: 60 dB
• Electronic Shutter Speed: 1/32000 ~ 1/30
• IR Distance: Up to 60 m (197 ft)
• IR Light Control: Smart IR (Auto / Manual) / OFF, External IR trigger by output
• IR Light Number: 4
• Removable IR-Cut Filter: Yes
• Day/Night: Auto / Day / Night / Synchronize with digital input / Schedule
• Backlight Compensation: WDR, HLC
• White Balance: Auto / Fixed Current / Manual
• Gain Control: 0-100 %
• Wide Dynamic Range: >120 dB
• Noise Reduction: 3D DNR
• Lens: Remote Focus, 5 ~ 50 mm, MFZ, DC-IRIS, F1.9 ~ F2.1
• Angle Of View: H: 45° ~ 7°, V: 33° ~ 5°
• G-Sensor: Support Camera Direction OSD Display (Default - Off)
• Privacy Masking: Off / On (5 Areas)
• Defog: Support
• Encryption Chipset: Built-in FIPS encryption Chipset
• Local Storage: Micro SD / SDHC / SDXC card slot (up to 256 GB), SD Card encryption
• Micro USB: Support Wifi Dongle for configuration
• Alarm Inputs / Outputs: 2 In / 1 Relay Out

Video:

• Video Compression: H.265 HEVC / H.264 / MJPEG, Smart Codec
• Resolution (16/9): 2560 x 1440 / 1920 x 1080 / 1600 x 904 / 1360 x 768 / 1280 x 720 / 640 x 360
• Resolution (4/3): 2560 x 1920 / 1600 x 1200 / 1280 x 960 / 640 x 480
• Number of Video Streams: 3
• Frame Rate Main Stream & Frame Rate Second Stream:2560 x 1440 / 1920 x 1080 / 1600 x 904 / 1360 x 768 / 1280 x 720 / 640 x 360 (1-25/30 fps), 1920 x 1080 / 1600 x 904 / 1360 x 768 / 1280 x 720 / 640 x 360 (1-50/60 fps), 2560 x 1440 (1-50 fps)
• Frame Rate Third Stream: 1280 x 960 / 640 x 480 (1-25/30 fps) 1280 x 720 / 640 x 360 (1-50/60 fps)
• Bit Rate (Control): 20 K ~ 80 Mbps

Audio:

• Audio Compression: G.711a / G.711 Mu / G.726
• Audio Stream: Full duplex, simplex
• Audio Interface: Line In / Out

Network:

• Ethernet: 10 Base-T / 100 Base-TX Ethernet (RJ-45)
• Supported Web Browsers: Chrome 79.0 Internet Explorer 11
• Protocols: IPv4, IPv6, TCP / IP, HTTP, HTTPS, UPnP, RTSP / RTP / RTCP, IGMP / Multicast, CIFS / SMB, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
• Interoperability: ONVIF Profile G / S
• Maximum Users Access :10 Users
• Security: User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed, PCIDSS compliance, FIPS Chipset Built-In
• Languages Supported: English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese

Events / Analytics:

• Built-in Video Analytics: Intrusion, Loiter, Line crossing, Unattended object, Missing object, Face detection
• Event type: Video motion detection, Periodically, Alarm input, System boot, Recording notification, Camera tampering detection
• Event linkage: Event notification using digital output, HTTP, Email and MicroSD card
• Region Of Interest: 5

Electrical:

• Power Supply: 12 VDC / 24 VAC (50 / 60Hz), Heat On: PoE (IEEE 802.3 at, Class 4), Heat Off: PoE (IEEE 802.3 at, Class 3), Auto Sensing
• Power Consumption: Max 25.5 W
• Alarm Inputs / Outputs: 2 In / 1 Relay Out

Mechanical:

• Dimensions: 105.5 mm x 110.6 mm x 288.6 mm (4.2’’ x 4.4’’ x 11.4’’)
• Product Weight: HC60WB5R5: 2.53 kg (5.58 lb)
• Package Weight: HC60WB5R5: 2.56 kg (5.64 lb)
• Body Material: Metal (die casting aluminum with powder coating)
• Construction Color: RAL 120-1 (Lyric White)

Environmental:

• Operating Temperature Starting and Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) (802.3at PoE Class 4)
• Relative Humidity: Less than 90 %, non-condensing
• Ingress Protection: IP66 / IP67 / NEMA 4X
• Impact Resistance: IK10
• Heater / Gore-Vent: Yes / Yes

Regulatory:

• Emissions: FCC PART 15, CE (EN 55032)
• Immunity: CE (EN 50130-4)
• Safety: UL LISTED TO UL / CSA 62368-1, CE (EN 62368-1), UL / CSA 60950-22, CE (EN 60950-22)
• RoHS CE (EN 50581), EAC (TR EAEU 037 / 2016), UAE (Cabinet Decree No.10 of 2017)

• Supported OS: Microsoft Windows 10
