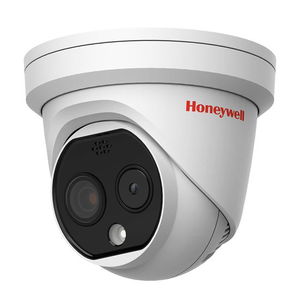

Honeywell 4MP IP Thermal & Optical Temperature Detection IR Fixed Dome

Honeywell 4MP IP Thermal & Optical Temperature Detection IR Fixed Dome Network Camera with 6mm Lens. Temperature range 30C ~ 45C. 25fps@2688x1520. Max IR up to 15m.

• Uncooled 160x120 image sensor with 6mm lens for thermal image
• Temperature Range 30°C ~45°C
• Temperature Accuracy ±0.5°C, ±0.54°F/0.3°C (with a black body)
• Support video fusion view and pseudocolour overlay
• Secondary 4MP visible camera with 8mm lens
• True WDR, 120dB
• Up to 15m IR Distance
• 25fps @ 2688 x 1520
• Support abnormal temperature alarm
• Support user-defined point, line and frame temperature measurement rules
• IP66 Protection
• ONVIF
• PoE/ DC 12V

Thermal Module:

• Type: Ball
• Lens: 6mm, F1.1
• Field of View (H x V): 25° x 18.7°
• Image sensor: Vanadium Oxide uncooled FPA (Focal Plane Arrays)
• Resolution: 160 x 120
• Pixel Size: 17μm
• Spectral Range: 8μm ~ 14μm
• Sensitivity (NETD: ≤40mK (@25°C, F#=1.1)
• Pseudocolour: White-hot, Black hot, Iron red and etc. Up to 15 pseudo colour optional

Temperature Measurement:

• Range: 30°C~45°C
• Accuracy: ±0.5°C / (±0.3°C with blackbody)
• Measurement: Support full image area temperature measurement, or user-defined measurement points (max. 10), areas (max. 10) and line (max.1)
• Temperature Alarm: Strobe light alarm and audio alarm

Visible Camera:

• Focal Length: 8mm Fixed lens
• Field of View (H x V): 39.42° x 22.14°
• IR Range: (up to) 15m
• Shutter Speed: 1 ~ 1/100,000s
• Day / Night: IR Cut Filter
• WDR: 120dB
• Minimum Sensitivity: Colour: 0.008Lux@F1.6(AGC ON) B/W: 0.001Lux@F1.6(AGC ON); 0Lux(IR ON)

Image Fusion:

• Video Image Fusion: Overlay details of visible light video in thermographic video
• Picture in Picture: Overlay thermographic video to visible light video with picture-in-picture mode
• Temp. Info Overlay: Overlay temperature measurement rules and result in visible light video

Audio And Video Coded

• Video Compression: H.265/ H.264/ MJPEG
• Main Stream: Visible Light: 25fps @ 2688x1520, 1920x1080, 1280x720, Thermographic: 25fps @ 1280x720, 704x576, 640x480, 352x288, 320x240
• Sub Stream: Visible Light: 25fps @ 704x576, 352x288, 176x144,Thermographic: 25fps @ 704x576, 352x288, 320x 40
• H.265 Type: Main Profile
• H.264 Type : Baseline Profile/ Main Profile / High Profile
• Video Bit Rate: 32Kbps~8Mbps
• Audio Compression: G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
• Audio Bit Rate: 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps (MP2L2)

Network:

• Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• ONVIF: ONVIF
• Web Browser: IE9 or above
• Live View: 20 channels
• Security: Password protection, MAC address binding, HTTPS encryption, IEEE 802.1X Authentication, IP address filter

Interface:

• Network 1 x RJ45, 10M/100M self-adaptive Ethernet port
• RS-485: 1 x RS485
• Alarm (In/Out): 2 / 2 (1 / 1 for HVCT-D4010I)
• Video Output: 1x BNC
• Audio: 1 x Audio input (3.5mm)/ 1 x Audio out
• Micro SDCard slot: up to 128GB (256GB for HVCT-B4020I)
• Reset Button: Support

Environmental:

• IP Rating: IP66
• Humidity: 95% max
• Operating Temp: -20~50°C

Physical Characteristics:

• Power Supply: 12V DC (± 20%)
• PoE: 802.3af, class 3
• Consumption: 6.5W
• Weight: 940g
• Size: 123.1 x 138.3 x 138.3mm
