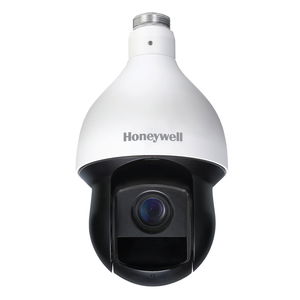

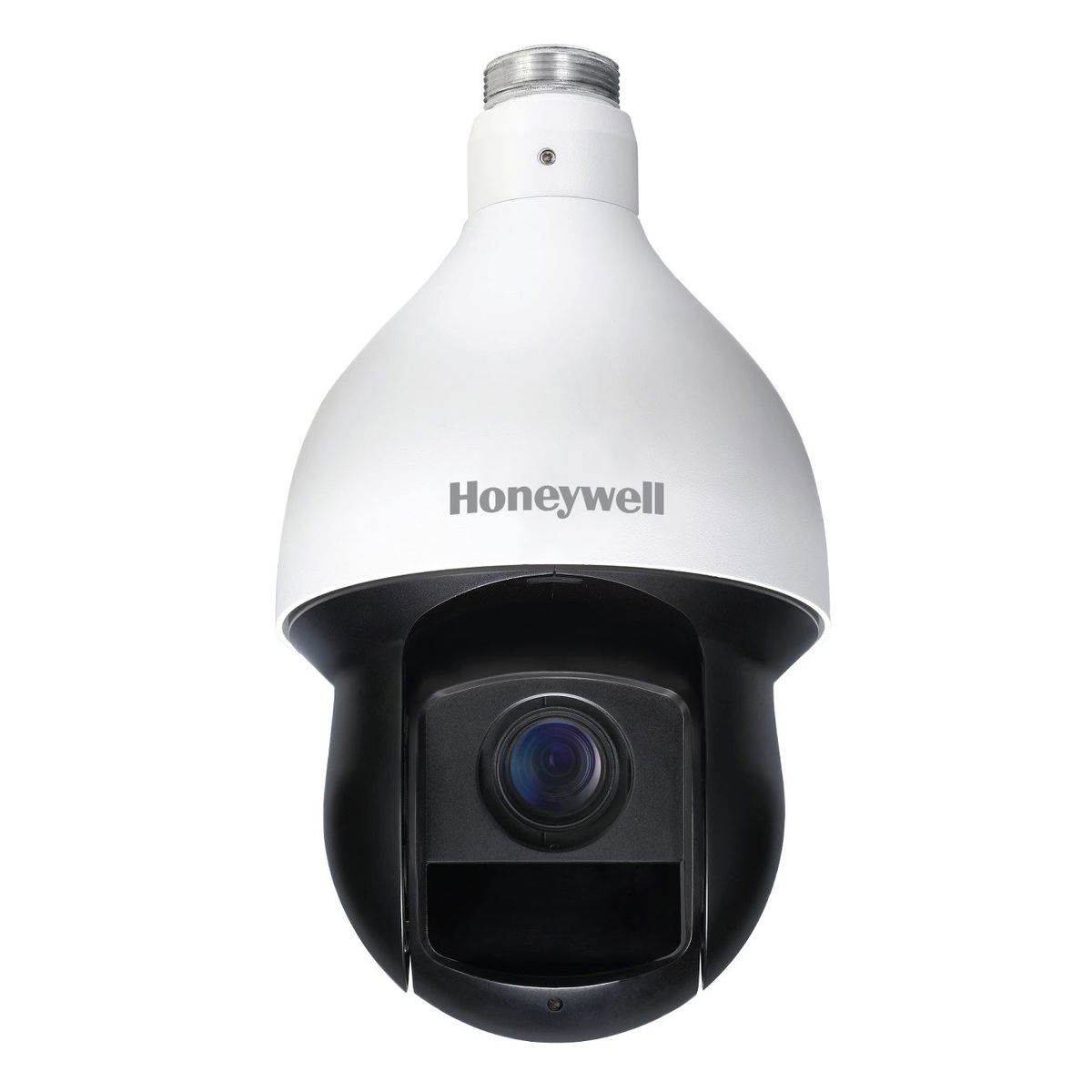

Honeywell 4MP Network PTZ 6 IR LED Outdoor Camera

The enhanced Performance Series Video 2/4/8 MP IP Solution native integrated cameras deliver faster notification and verification of potential threats along with powerful insights to support small-to-medium businesses and enterprise level applications.

• TDN, WDR 120dB, 1/3" CMOS, 4MP, 4.5~135mm MFZ lens (30x), H.265, PoE+, IP66.
• Honeywell’s latest HDZ PTZ is part of the growing line of IP-based products.
• The high definition, True Day/Night WDR PTZ cameras provide an extremely crisp video with up to 4 million effective pixels and 30x optical zoom for continuous surveillance in many security applications.

Camera:

• Image Sensor: 1/3-in. CMOS
• Optical Zoom: 30x
• Digital Zoom: 16X
• WDR: 120dB
• S/N Ratio: >55dB
• Minimum Illumination : Color: 0.05 Lux at F1.6 0 Lux at F1.6 (IR on)
• Focal Length: 4.5mm~135mm
• Max Aperture: F1.6~F4.4
• Focus Mode: Manual/Auto
• IR Distance 100m, depending on scene reflectance
• Angle Of View: Horizontal: 2.2°~60°
• White Balance: Auto/Indoor/Outdoor/ATW/Manual
• Exposure Mode: Iris Priority/Shutter Priority/Gain Priority/Manual
• Electronic Shutter: 1/1 TO 1/30,000 sec
• Backlight Compensation: BLC/HLC/WDR (120 dB)
• Defog: On/Off
• Noise Reduction: 2D/3D
• Day/Night: Auto (ICR)/Color/BW

Operation:

• Pan Travel: 360° endless
• Tilt Travel: -15°~90°, auto flip to 180°
• Manual Pan Speed: Up to 300°/s
• Manual Tilt Speed: Up to 200°/s
• Presets: 300
• Preset Speed: Pan: 400°/s; Tilt: 300°/s
• Tours: 8
• Auto Pan/Scan: 1/1
• Pattern: 5
• Privacy Masks: 24
• Motion Detection: On/Off
• Image Rotation: Flip
• Audio In/Out: 1/1
• Alarm Input/Output: 2/1
• Video Analytics: Auto-tracking, face detection
• Event: Motion Detect; Audio Detect; SD card capacity warning
• Event Notification: Record (SD card and FTP), Relay output, Email, Preset, Tour, Pattern, Snapshot
• Languages Supported: English, Japanese and Korean

Electrical:

• Power Source: 24V AC, 3A (±10%), PoE+ (802.3at) class 4
• Power Consumption: 23W with IR on

Mechanical:

• Dimensions: 186.0mm × 309.0mm
• Product Weight: 3.50kg
• Connectors: Power input: Bare wire with connectors
• Network: RJ45 connector
• Alarm I/O: Twisted wire (2 in/1 out)
• Audio I/O: Twisted wire (1 in/1 out)
• Construction Material: Aluminum
• Construction Colour: White (RAL CODE 9003)

Environmental:

• Operating Temperature: -40°C~70°C
• Relative Humidity: Less than 90%, non-condensing
• Waterproof Standard: IP66

**IP Specifications: **

• Video Compression: H.265/H.264/MJPEG
• Video Streaming: Primary Stream: 4MP, 3MP at 30fps or 1080p, 1.3MP, 720p at 60fps, 2nd Stream: D1, CIF at 30fps, 3rd Stream: 1080p, 1.3MP, 720p at 30fps
• Video Resolution: 4MP (2592 × 1520), 3MP (2304 × 1296), 1080p (1920 × 1080), 720p (1280 × 720), D1 (704 × 480), CIF (352 × 240)
• Audio Compression: G.711a, G.711Mu, AAC, G.722,
• Audio Stream: Full-duplex, Simplex
• Interface: RJ-45,10/100 Mbps Ethernet
• Supported Protocols: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, SSL, FTP, SMTP, DHCP, PPPoE, UPnP, SNMP, Bonjour, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, ONVIF
• Security: User account and password protection, HTTPS, IP Filter, IEEE 802.1x, Digest authentication, User access log
• Maximum Users Access: 20 users
• Micro SD: Support for microSD up to 128 GB (card not included)
• Micro SD Function: Event trigger recording, Continuous and scheduled recording, Automatic recording when network fails
• Supported Web Browsers: IE 10, Firefox
• Supported OS: Windows 7 32-bit/64-bit
• Communication: ONVIF Profile S

Regulatory:

• Emissions: FCC Part 15B, EN55032
• Immunity: EN50130-4
• Safety: EU: EN60950-1, UL Listed to UL/CSA 60950-1
• Rohs: EN50581

• Supported OS: Windows 7 32-bit/64-bit
