Key Details:
- Model: HC30W45R3
- Part #: CD05647
- Warranty: Supported by Manufacturer
- Brand: Honeywell
Ask Our Experts:

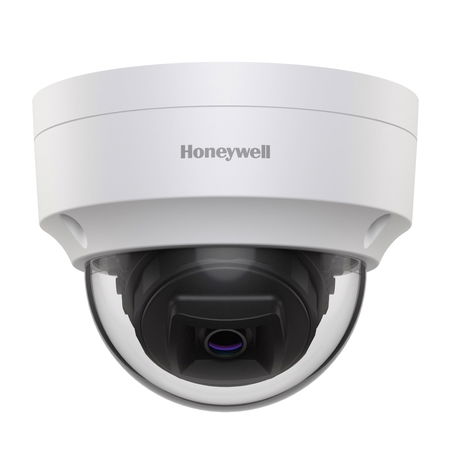

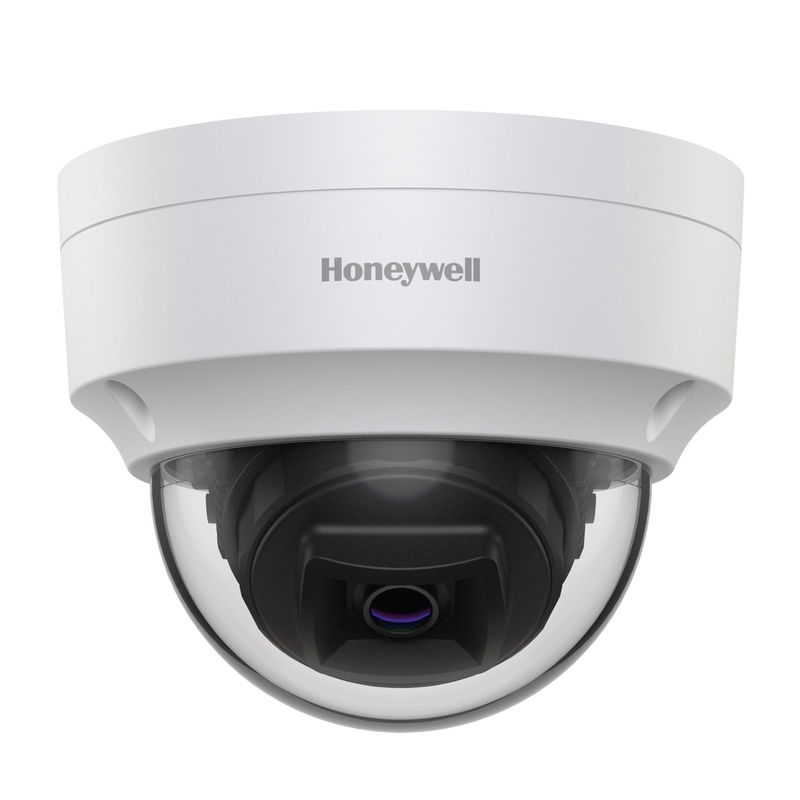

Honeywell 30 Series 5MP Rugged 2.8mm Fixed Lens Dome Camera
Honeywell is taking quality and reliability to the next level with the new Performance Series IP camera. The Honeywell camera range offers incomparable picture clarity, hassle-free flexible system integration, secure data transmission and easy installation!
- 2.8mm Fixed Lens
- Up to 30M IR
- Rugged Outdoor IP66 Housing
- IK10 Vandal Resistant
- PoE (IEEE 802.3af) or 12VDC
- True WDR, 120dB
Video:
- Video Compression: H.265/ H.264/ Smart Codec/ MJPEG
- Resolution: HC30W45R3 (5MP): 2560x1920/2048x1536/ 1600x1200/ 1280x960/ 800x600/ 640x480, HC30W45R3 (4MP):2688x1520/ 1920×1080/ 1600x904/1280x- 720/640x360
- Frame Rate: HC30W45R3:Main Stream: 5M/4M (1 ~ 25/30fps); *Up to 30fps @5M under H.265 only Sub Stream: 800x600 (1 ~ 25/30fps);Third Stream: VGA (1 ~ 25/30fps)
- Bit Rate Control: Constrained bit rate/Fixed quality
- Bit Rate: 20K ~ 40Mbps
Network:
- Ethernet: 10 Base-T/100 Base-TX Ethernet (RJ-45)
- Supported Web Browsers: Chrome 71+, Internet Explorer 11.0+
- Protocols:IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
- Interoperability: ONVIF Profile G/S
- Maximum Users Access: 10 Users
- Security: User account and password protection, HTTPS, IP Filter,Digest authentication, TLS1.2 only, Stream encryption, AES-128/256, SSH/Telnet closed, PCIDSS compliance
- Event: Event notification using HTTP, SMTP, NAS server and MicroSD cardFile upload via HTTP, SMTP, NAS server and MicroSD card
- Micro SD: Micro SD/SDHC/SDXC card slot (256GB)
Environmental:
- Operating Temperature: Starting: -10°C ~ 60°C , Working: -30°C ~ 60°C
- Relative Humidity: Less than 90%, non-condensing
- Ingress Protection: IP66
- Vandal Resistance: IK10
Electrical:
- Power Supply: DC12V, PoE (IEEE 802.3af) (Class 2)
- Power Consumption: Max 6.49W
Mechanical:
- Dimensions: 117.11mm x 89.51mm
- Product Weight: 0.54kg
- Package Weight: 0.88kg
- Material: Die-casting aluminium housing with a coating
- Construction Color: RAL 120-1 (Lyric White)
Regulatory:
- Emissions: FCC PART 15B, EN 55032, EN61000-6-3
- Immunity: EN 50130-4
- Safety: UL 62368-1, EN 62368-1
- ROHS: EN 50581
