Key Details:
- Model: HC30WE5R2
- Part #: CD05650
- Warranty: Supported by Manufacturer
- Brand: Honeywell
Ask Our Experts:

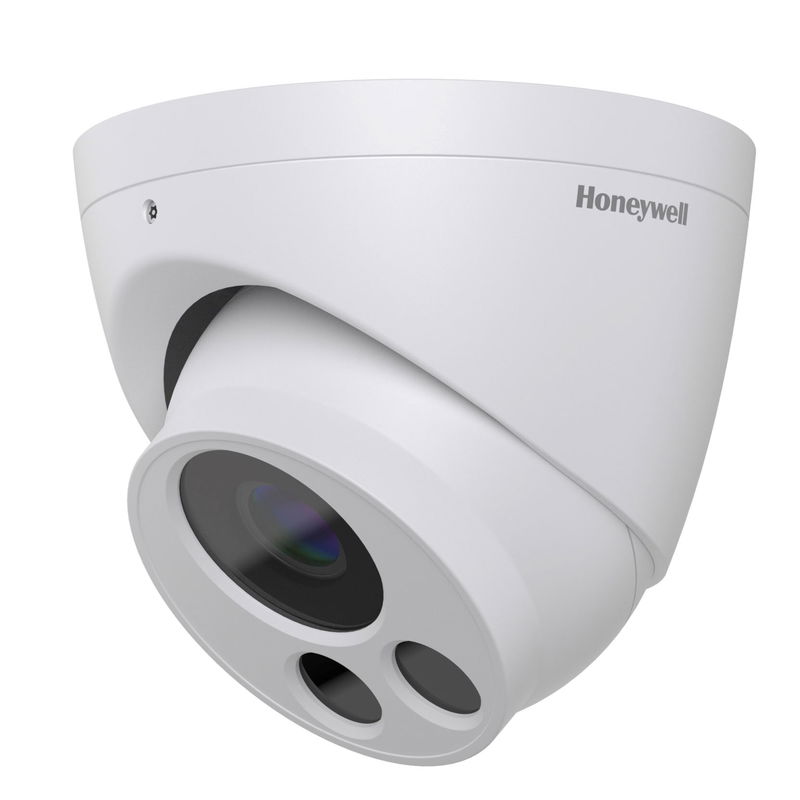

Honeywell 30 Series 5MP WDR IR IP Motorized Focus Eyeball Camera
Honeywell is taking quality and reliability to the next level with the new Performance Series IP camera. The Honeywell camera range offers incomparable picture clarity, hassle-free flexible system integration, secure data transmission and easy installation!
- Motorized Focus & Zoom Lens
- Up to 50M IR
- Rugged Outdoor IP66 Housing
- IK10 Vandal Resistant
- PoE (IEEE 802.3af) or 12V
Operational:
- Video Standard: NTSC/PAL
- Scanning System: Progressive
- Image Sensor: 1/2.7" Progressive CMOS
- Number Of Pixels: (H × V) 2560(H) x 1920(V)
- Minimum Illumination: 0.035lux color @ F1.4, 0 lux B/W with IR LEDs on @F1.4
- S/N Ratio: > 55 dB
- Electronic Shutter Speed: 1/5 ~ 1/32,000
- IR Distance Distance: up to 50m (165ft)
- IR Light Control: Smart IR (Auto/Manual)/OFF
- IR Light Number: 2
- Day/Night: Auto/Day/Night/Schedule
- Backlight Compensation: WDR, HLC
- White Balance: Auto/Fixed Current/Manual
- Gain Control: 0-100%
- Wide Dynamic Range: 120dB
- Noise Reduction: 3D DNR
- Privacy Masking: Off / On (5 Areas)
- Motion Detection Motion detection/Intrusion detection/ People detection
- Tampering Detection: Tampering Detection/Image too dark detection/Image too bright detection/ Image too blurry detection
- Region Of Interest: Support
- Lens: 2.8mm
12mm, MFZ, F1.4F2.8 - Angle Of View: H: 88°-30°, V: 65°-23° @5MP
Video:
- Video Compression: H.265/H.264/Smart Codec/MJPEG
- Resolution: (5MP) 2560x1920/2048x1536/1600x1200/1280x960/800x600/640x480, (4MP) 2688x1520/ 1920×1080/ 1600x904/ 1280x720/ 640x360
- Frame Rate: Main Stream: 5M/4M (1 ~ 25/30fps);Up to 30fps @5M under H.265 onlySub Stream: 800x600 (1 ~ 25/30fps);Third Stream: VGA (1 ~ 25/30fps)
- Bit Rate Control: Constrained bit rate/Fixed quality
- Bit Rate: 20k ~ 40Mbps
Network:
- Ethernet: 10 Base-T/100 Base-TX Ethernet (RJ-45)
- Supported Web Browsers: Chrome 71+, Internet Explorer 11.0+
- Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
- Interoperability: ONVIF Profile G/S
- Maximum Users Access: 10 Users
- Security: User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES-128/256, SSH/ Telnet closed, PCIDSS compliance
- Event: Event notification using HTTP, SMTP, NAS server and MicroSD cardFile upload via HTTP, SMTP, NAS server and MicroSD card
- Micro SD: Micro SD/SDHC/SDXC card slot (256GB)
Electrical:
- Power Supply: DC 12V, PoE (IEEE 802.3af) (Class 0)
- Power Consumption: Max 12.95W
Mechanical:
- Dimensions: 120mm x 90.5mm
- Product Weight: 0.64kg
- Package Weight: 0.96kg
- Material: Die-casting aluminium housing with a coating
- Construction Color: RAL 120-1 (Lyric White)
Environmental:
- Operating Temperature: Starting: -10°C ~ 60°C, Working: -30°C ~ 60°C
- Relative Humidity: Less than 90%, non-condensing
- Ingress Protection: IP66
- Vandal Resistance: IK10
Regulatory:
- Emissions: FCC PART 15B, EN 55032, EN61000-6-3
- Immunity: EN 50130-4
- Safety: UL 62368-1, EN 62368-1
- ROHS: EN 50581
- Supported OS: Microsoft Windows 7/10
