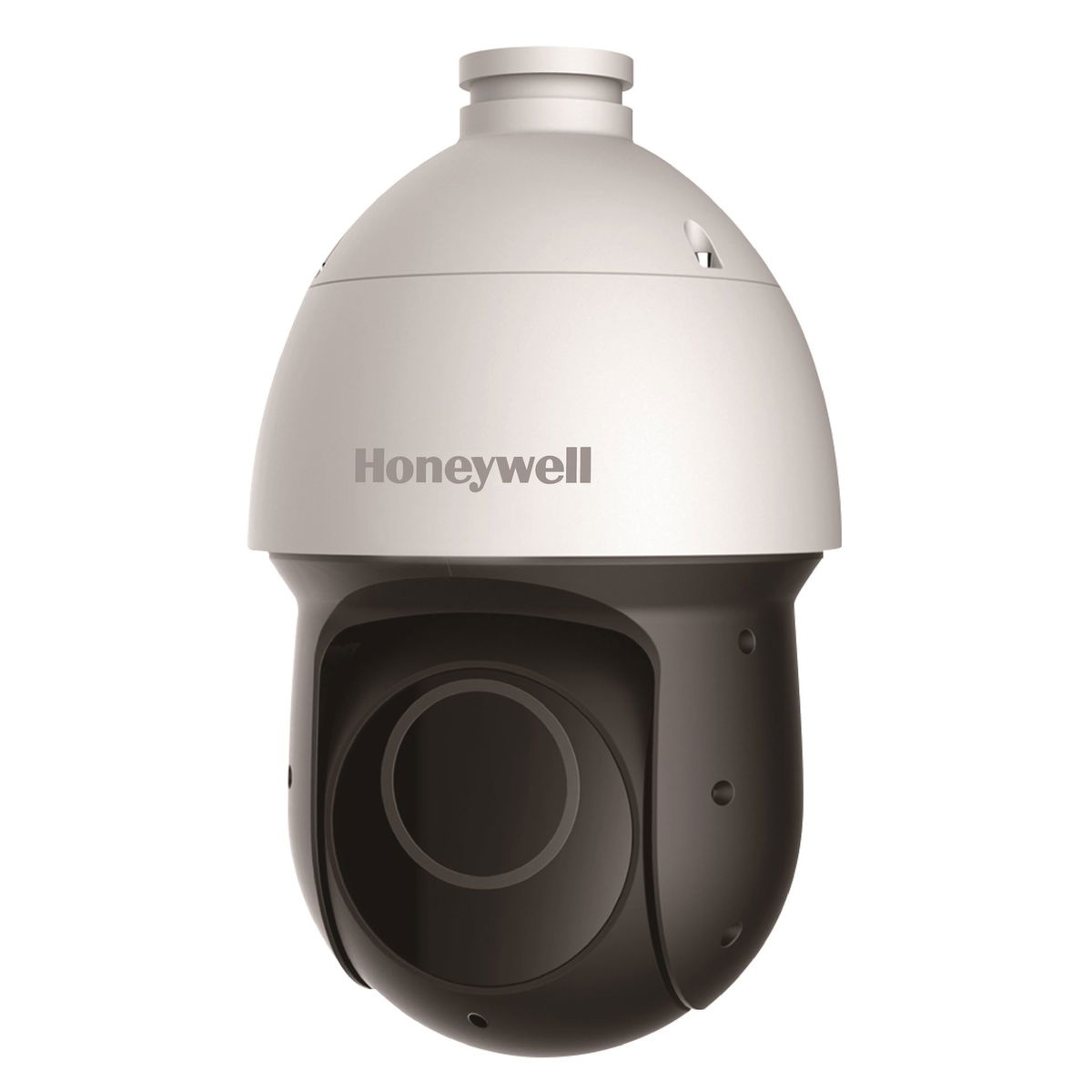

Honeywell 1080P Network PTZ 6 IR LEDs Outdoor Camera

Honeywell’s latest HDZ PTZ is part of the growing line of IP-based products. The high definition, True Day/Night WDR PTZ cameras provide extremely crisp video with up to 2 million effective pixels and 25x optical zoom for continuous surveillance in many security applications.

• Full HD 1080p resolution, 50/60 fps image with a 1/2.8" 2 megapixel sensor
• True WDR 120 dB ensures glare-free images
• True Day/Night provides vivid color images by day and clear blackand-white images at night with ICR (Infrared Cut Filter Removal)
• Excellent low-light performance with 3D noise reduction, saving storage and bandwidth together with H.265 codec
• 4.8–120 mm, F1.6-F4.4, 25x optical zoom lens with 360° continuous rotation for the flexibility to clearly view the target area with desired width and depth
• H.265, H.264 and MJPEG codec, triple stream support
• Six IR LEDs provide up to 328 ft. (100 m) of illumination in dimly lit or nighttime scenes (depending on scene reflectance)
• Water resistant (IP66) camera housing
• –40°F to 158°F (–40°C to 70°C) working temperature
• Built-in Analytics in the camera, such as face detection
• Security features include individual signed certificates and data encryption
• Supports up to 128 GB microSDHC card for local video storage on events, continuous, or schedule, or with network interruption. Card not included
• Built-in High PoE (Power over Ethernet) eliminates separate power supply and associated wiring; 12 VDC input where PoE power is unavailable
• ONVIF Profile S and G compliant
• Remote configuration, motorized pan, tilt and zoom adjustments and auto focus through web client

Camera

• Image Sensor: 1/2.8" Exmor CMOS
• Optical Zoom: 25x
• Digital Zoom: 16x
• Number of pixels (h × v): 1920x1080 (1080p)
• WDR: 120db
• S/N Ratio: > 50db (AGC off)
• Minimum illumination: 0.005 lux (color)/0 lux (b/w) @ f1.6 (with IR Led on)
• Focal Length: 4.8mm~120mm
• Max Aperture: F1.6 – F4.4
• Focus Mode: Manual/Auto
• IR Distance: 100m, depending on scene reflectance
• Angle ff View: H: 59.2°~2.4°
• White Balance: Auto/indoor/outdoor/ATW/manual
• Exposure Mode: Iris priority/Shutter priority/Gain priority/Manual
• Electronic Shutter: 1/1 to 1/30,000 sec
• Backlight Compensation: BLC/HLC/WDR (120 db)
• Defog: On/off
• Noise Reduction: 2d/3d
• Day/night: Auto (ICR)/color/BW

Operation:

• Pan travel: 360° endless
• Tilt travel: –15°~90°, auto flip 180°
• Manual pan speed: Up to 200°/s
• Manual tilt speed: Up to 120°/s
• Presets: 300 Preset speed Pan: up to 240°/s; tilt: up to 200°/s
• Tours: 8
• Auto pan/scan: 1 / 1
• Pattern: 5
• Privacy masks: 24
• Motion detection: On/off
• Image rotation: Flip
• Audio in/out: 1 / 1
• Alarm input/output: 2 / 1
• Video analytics: Face detection
• Event: Motion detect; audio detect; sd card capacity warning
• Event notification: Record (SD card and ftp), relay output, email, preset, tour, pattern, snapshot
• Languages supported: English, Japanese

Electrical :

• Power source: 12v dc ± 25%, 3a poe+ (802.3at) class 4
• Power consumption: 13w;20w max (IR Led on)

Mechanical:

• Dimensions: 160.0mmx295.0 mm
• Product weight: 4.0 kg
• Connectors: Power input: bare wire with connectors, Network: RJ45 connector alarm i/o: twisted wire (2 in/1 out), audio i/o: twisted wire (1 in/1 out)
• Construction material: Aluminium
• Construction color: White (RAL code 9003)

Environmental:

• Operating temperature: –40°c~70°c
• Relative humidity: Less than 90%, non-condensing
• Waterproof standard: Ip66

IP Specifications

• Video compression: H.265 / h.264 / MJPEG
• Video streaming: Primary stream: 1080p/720p @ 60/50 fps, 2nd stream: d1/CIF @ 30/25 fps, 3rd stream: 720p/d1/CIF @ 30/25 fps
• Video resolution:1080p (1920×1080p) / 720p (1280×720) / d1 (704×576/704×480) / CIF (352×288/352×240)
• Audio compression: G.711a/g.711mu/AAC/g.726
• Audio stream: Full-duplex, simplex
• Interface: Rj-45, 10/100 Mbps ethernet
• Supported protocols: Ipv4/v6, tcp/ip, udp, rtp, rtsp, http, https, ssl, ftp, smtp, dhcp, pppoe, upnp, snmp, bonjour, ddns, ieee 802.1x, qos, ntp, ip filter, onvif
• Security: User account and password protection, https, IP filter, ieee 802.1x, digest authentication, user access log, hardware security chipset protection
• Maximum users access: 20 users
• Micro SD: Support for MicroSD up to 128gb (card not included)
• Micro SD function: Event trigger recording continuous and scheduled recording automatic recording when the network fails
• Supported web browsers: Internet explorer (11.0+)
• Communication: ONVIF profile s and g

Regulatory:

• Emissions: FCC part 15b, en55032
• Immunity: En55024, en50130-4
• Safety: Eu: en60950-1north America ul listed to ul/csa 60950-1
• Rohs: En50581: 2012

• Supported OS: Windows7 32-bit/64-bit
