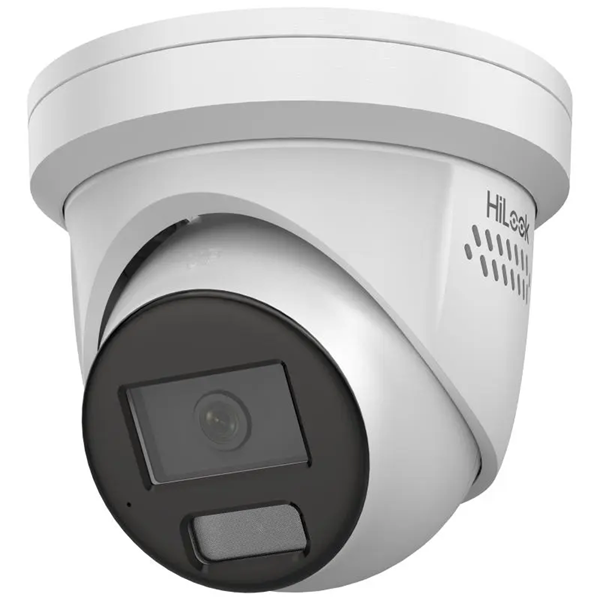

HiLook IPC-T269H-MU-SL 6MP 2.8mm IR Fixed Lens Turret Network Camera

6 MP All-in-One Fixed Turret Network Camera

• High quality imaging with 6 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Human and vehicle targets classification based on deep learning
• Active red and blue strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• 24/7 colorful imaging
• Smart Dual-light Supplement, auto switch IR to White light supplement when event triggered
• Water and dust resistant (IP67)

Camera:

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON),0 Lux with white light B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens:

• Lens Type: Fixed lens, 2.8 mm
• Iris Type: Fixed
• Focal Length & FOV: 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
• Aperture: F1.6
• Lens Mount: M12

Illuminator:

• Supplement Light Type: White light & IR
• Supplement Light Range: IR Range: Up to 30m ; White light Range: Up to 30m
• Smart Supplement Light: Yes

Video:

• Main Stream: 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region(s) for main stream and sub-stream

Audio:

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network:

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• User/Host: Up to 32 users 3 levels: administrator, operator, and user
• Network Storage: Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200,Hik-Connect
• Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Image:

• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance ajustable by client sfotware or web browser
• Privacy Mask: 4 regions of privacy masks
• Wide Dynamic Range (WDR): 120 dB

Interface:

• Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
• Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Built-in Microphone: Yes
• Built-in Speaker: Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Reset Key: Yes
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event:

• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event: Line crossing detection(human and vehicle targets classification)
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General:

• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, password protection, password reset via email
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power: 12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 9.7 W
• Material: Metal except for trim ring
• Dimension: Ø 138.3 mm× 112.1 mm
• Weight: Approx. 820 g
