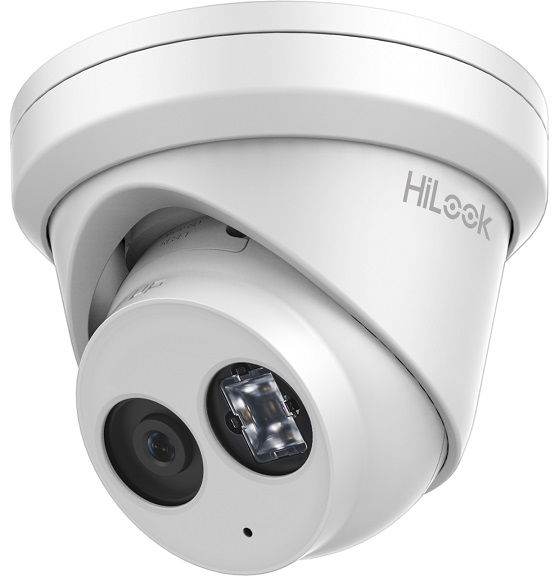

HiLook 8MP IP POE AI Fixed Lens Turret Network Camera

Clear imaging against strong backlight due to 120 dB WDR technology. Focusing on human and vehicle classification based on deep learning

• High-quality imaging with 8 MP resolution
• Efficient H.265+ compression technology to save bandwidth and storage
• Water and dust resistant (IP67)
• Built-in microphone for real-time audio security
• Easy installation with Power over Ethernet (PoE) technology

Camera:

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• P/N: P/N
• Wide Dynamic Range: 120 dB
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens:

• Lens Type: Fixed focal length, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°, 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
• Lens Mount: M12
• Iris: Type Fixed
• Aperture: F1.6

DORI:

• DORI: 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m ; 4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

Illuminator:

• Supplement Light Type: IR
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• IR Range: Up to 30 m

Video:

• Max. Resolution: 3840 × 2160
• Main Stream: 50 Hz: 20 fps (3840 × 2160) ; 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) ; 60 Hz: 20 fps (3840 × 2160) ; 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) ; 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) ; 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Third stream is supported under certain settings.
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+ ; Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 ; Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio:

• Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 ; Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: -U: Yes

Network:

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11 ; Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Image:

• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB

Interface:

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-in Microphone: -U: yes
• Hardware Reset: Yes

Event:

• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Face Detection: Yes

Deep Learning Function:

• Perimeter Protection: Line crossing detection, intrusion detection ; Supports human and vehicle targets classification

General:

• Linkage Method: Upload to FTP/memory card/NAS, notify surveillance centre, trigger recording, trigger capture, send email
• Camera Material: Aluminium alloy body
• Camera Dimension: 127.3 mm × 95.9 mm
• Camera Weight: Approx. 600 g (1.3 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Web Client Language: 33 languages - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
• Firmware Version: V5.5.113
• Software Reset: Yes
• Power Consumption and Current: 12 VDC, 0.5 A, max. 6 W ; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.13 A, max. 7.5 W
• Power Supply: 12 VDC ± 25%, reverse polarity protection ; PoE: 802.3af, Class 3
• Power Interface: 5.5 mm coaxial power plug

Approval:

• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013)
